Запчасти Case 585D (274) - MAST TILT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

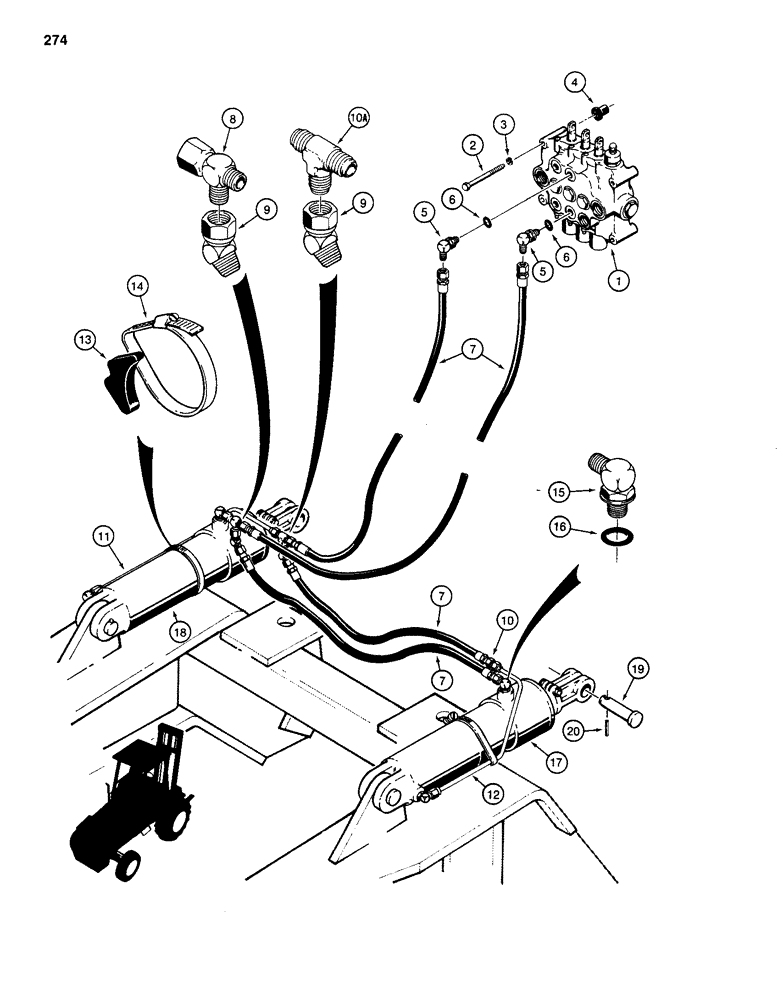

Схема запчастей Case 585D - (274) - MAST TILT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS
15
11
12
4
2
6
5
7
20
3
9
5
16
18
19
6
9
1
8
10
14
7
17
7
10a
13

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - forklift, for correct assembly and components see Figures 285-291

1шт.

2

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

D75755

ISOLATOR

CUSHION - valve mounting

3шт.

5

D69179

ELBOW

- 90 degree, adjustable, .125" restriction (3.175 mm), used on all mastsl except 28 foot (8.5 m) mast, Includes: Ref. 6

2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

5

D80997

ELBOW

- 90 degree, adjustable, .078" restriction (2 mm), used on 28 foot (8.5 m) mast only, Includes: Ref. 6

2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

D69101

HOSE

- 30" (762 mm) long, tilt cylinder

4шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

adjustable 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

9

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, adjustable

2шт.

10

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, male

1шт.

10a

218-593

TEE,9/16"-18, 37 Degree

- if used

1шт.

11

D69087

TUBE

- left-hand tilt cylinder

1шт.

12

D69089

TUBE

- right-hand tilt cylinder

1шт.

13

D38648

BLOCK

SPACER - tube

2шт.

14

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. Ref. 16 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

4шт.

17

G34197

CYLINDER ASSY.

CYLINDER - tilt, right-hand, parts list Figure 300

1шт.

18

G34196

CYLINDER

- tilt, left-hand, parts list Figure 300

1шт.

19

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

4шт.

20

138-2039

PIN,1/4" x 2", Coiled

4шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

Выбрано товаров: 23
