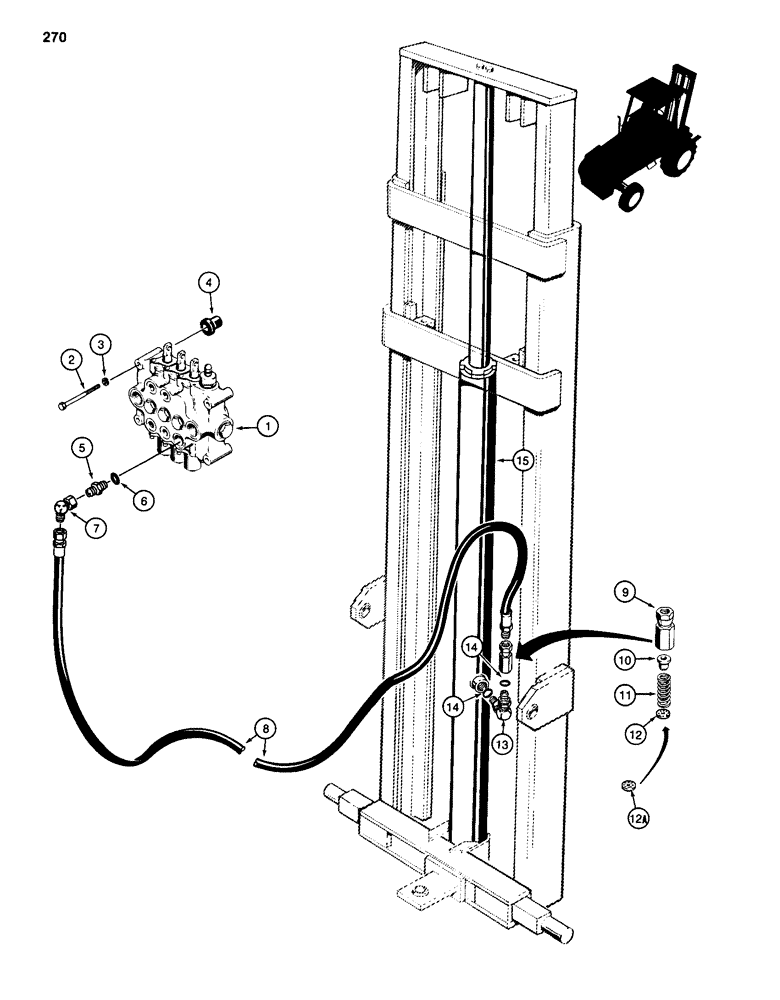

Запчасти Case 585D (270) - MAST LIFT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - forklift, for correct assembly and components see Figures 284-288

1шт.

2

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

D75755

ISOLATOR

INSULATOR - valve mounting

3шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, adjustable

1шт.

8

R17579

HOSE ASSY.

HOSE - 40" (1016 mm) long, to lift cylinder

1шт.

D48875

VALVE

RESTRICTOR - lift cylinder hydraulic circuit, all masts except 21-1/2 foot (6.5 m) mast for 585D and 586D

1шт.

D122897

RESTRICTOR

- lift cylinder hydraulic circuit, 21-1/2 foot (6.5 m) mast for 585D and 586D, Includes: Ref. 9 - 12A

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - restrictor

1шт.

10

D48876

SPACER

- restrictor

1шт.

11

D48877

SPRING

- restrictor

1шт.

12

D48878

WASHER

- D48875 restrictor only

1шт.

12a

N8401

WASHER

- D122897 restrictor only

1шт.

13

D48874

ELBOW

- 90 degree special, adjustable, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

2шт.

15

REF

INSTRUCTION

CYLINDER - lift, for correct assembly and components see Figure 296

1шт.
