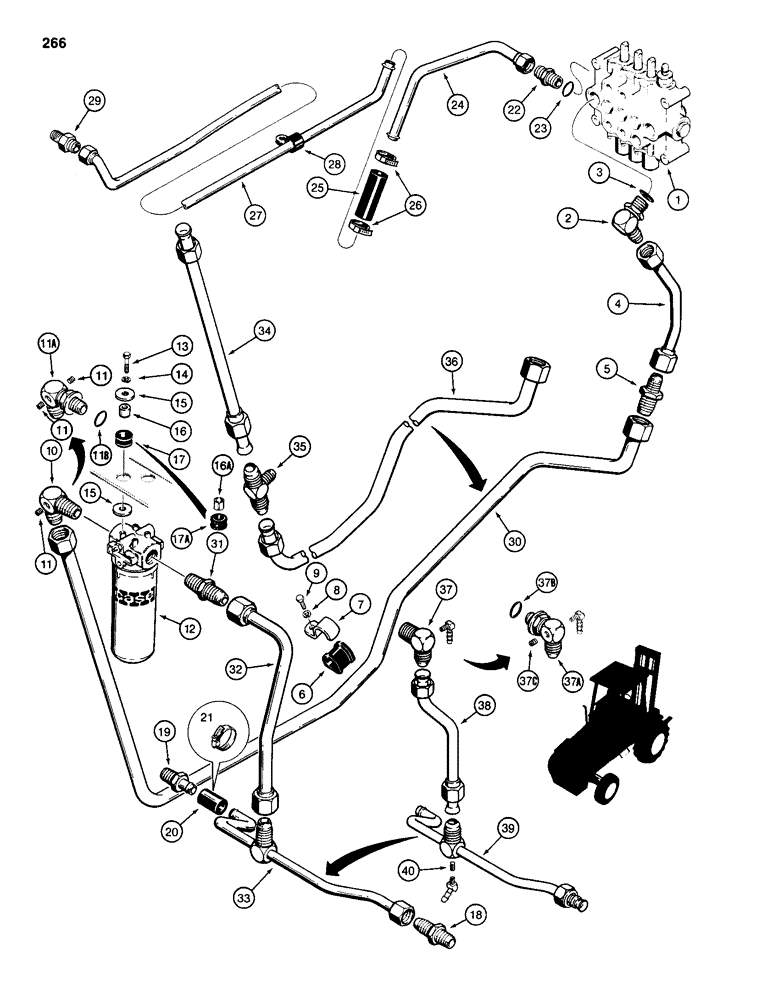

Запчасти Case 585D (266) - FORKLIFT HYDRAULIC CIRCUIT, RETURN LINES AND FILTER CONNECTIONS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - forklift, for correct assembly and components see Figures 285-291

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

D75064

HYD TUBE,0.75" OD x 3.95, 9.25" L

TUBE - return, from valve

1шт.

5

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, male

1шт.

6

D67297

BLOCK

INSULATOR - tube

1шт.

7

D68846

CLAMP

- tube

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1-2шт.

11a

D132008

ELBOW

- 90 degree, adjustable, used with D131293 oil filter with O-ring ports, Includes: Ref. 11B

1шт.

11b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D132008 elbow only

1шт.

12

REF

INSTRUCTION

FILTER - hydraulic oil, for correct assembly and components, see parts list Figure 295

1шт.

13

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 3/8", special

4шт.

16

D89934

BUSHING

SPACER - filter mounting, 7/8" OD x 7/32" thick, used with Ref. 17 grommet, if used

2шт.

16a

D76209

SPACER

- split, filter mounting bracket, 5/8" OD x 1/8" thick, used with Ref. 17A grommet, if used

2шт.

17

D67915

GROMMET

- filter mounting, 7/8" ID, used with Ref. 16 spacer, if used

2шт.

17a

D132895

GROMMET

- filter mounting bracket, 5/8" ID, used with Ref. 16A spacer, if used

2шт.

18

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male, right-hand reservoir

1шт.

19

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight, left-hand reservoir

1шт.

20

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

May be Cut from Bulk Hose, See Parts Substitution List for Bulk Hose Options, Return Tube 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

21

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

24

D93704

HYD TUBE,0.75" OD x 12.1, 6.1" L

TUBE - from valve end port

1шт.

25

D24728

HOSE

- 3/4" (19 mm) ID x 4-1/2" (114 mm) long, may be cut from bulk hose, see Parts Substitution List for bulk hose options

1шт.

26

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

27

D121639

TUBE

, Serial Range: --reservoir

1шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

29

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

30

D86092

TUBE ASSY.

TUBE - return, to filter, used before tractor pin 9879000

1шт.

31

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, male, used before tractor pin 9879000

1шт.

32

D67711

TUBE

- return, from filter, used before tractor pin 9879000

1шт.

33

D68536

TUBE

- return to tank, used before ttractor pin 9879000

1шт.

34

D126421

TUBE ASSY.

TUBE - return, valve to filter, used on tractor pin 9879000 and after

1шт.

35

218-588

TEE,37 Degree, 1 5/16"-12 x 7/8"-14, Br

- male, tube to tube, used on tractor pin 9879000 and after

1шт.

36

D126423

TUBE ASSY.

TUBE - return, valve to filter, used on tractor pin 9879000 and after

1шт.

37

D65646

FITTING

ELBOW - 90 degree, male, used with, D89908 or D122362 oil filter, without O-ring ports, used on tractor pin 987900 and after

1шт.

37a

D132008

ELBOW

- 90 degrees, adjustable, used, with D131293 oil filter with O-ring ports, used on tractor pin 9879000 and after, Includes: Ref. 37B

1шт.

37b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D132008 elbow only, used on tractor pin 9879000 and after

1шт.

37c

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8 " NPT, used with D132008 elbow, used on tractor pin 9879000 and after

1шт.

38

D127000

TUBE ASSY.

TUBE - return, from filter, used on tractor pin 9879000 and after

1шт.

39

D126993

TUBE

- return to tank, used on tractor pin 9879000 and after

1шт.

40

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 " NPT, if used, not required when tractor is equipped with brake balance system, used on tractor pin 9879000 and after

1шт.
