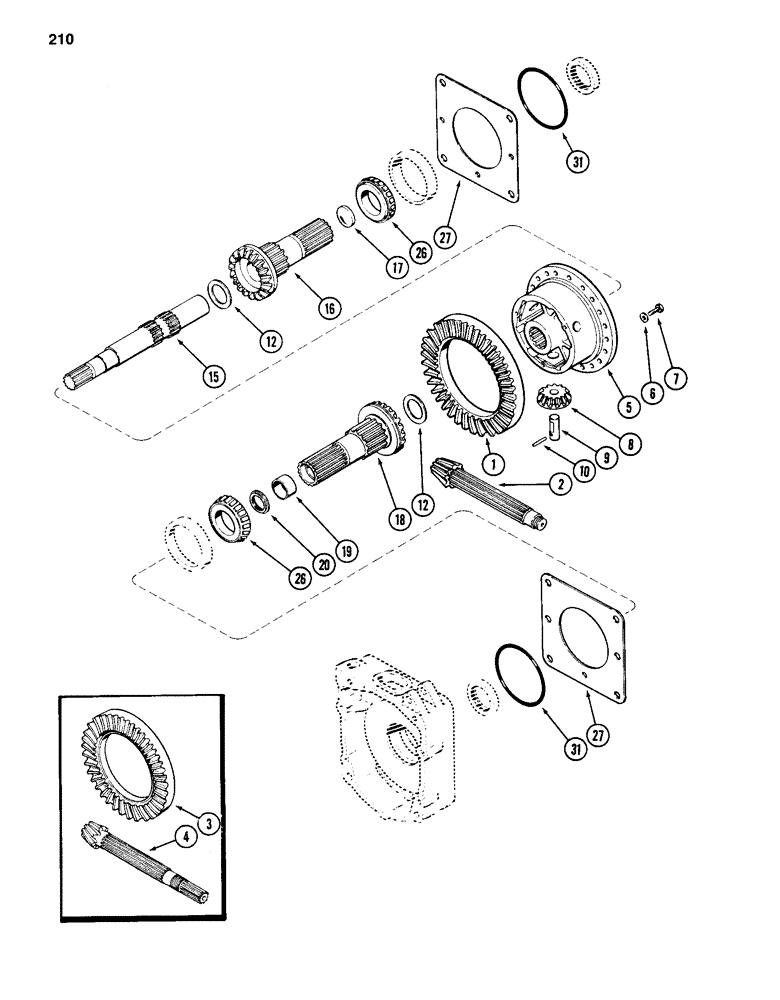

Запчасти Case 584D (210) - TRANSAXLE DIFFERENTIAL, TRANSMISSION SERIAL NO. 16249203 TO 16270318, 2 AND 4WD (21) - TRANSMISSION

A168102

GEAR-SET

PINION AND RING GEAR - transaxle, 2 wheel drive (Matched Set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168101)

1шт.

A168108

GEAR-SET

PINION AND RING GEAR - 4 wheel drive (Matched Set), Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

4

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168107)

1шт.

5

A159506

CENTER JOINT

WHEEL - center

1шт.

6

A155847

WASHER

- wheel bolt

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - hex, 3/8 NF x 7/8 inch

20шт.

8

A157462

GEAR

- pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

- pinion gear

3шт.

10

A140705

PIN

- groove, 3/16 x 2 inch

3шт.

12

A154141

WASHER

- thrust, center wheel, 0.079 inch (2.01 mm)

1шт.

12

A153717

WASHER

- thrust, center wheel, 0.084 inch (2.13 mm)

1шт.

12

A153712

WASHER

- thrust, center wheel, 0.089 inch (2.26 mm)

1шт.

12

A153713

WASHER

- thrust, center wheel, 0.094 inch (2.40 mm)

1шт.

12

A153714

WASHER

- thrust, center wheel, 0.099 inch (2.52 mm)

1шт.

12

A153715

WASHER

- thrust, center wheel, 0.104 inch (2.66 mm)

1шт.

12

A153716

WASHER

- thrust, center wheel, 0.109 inch (2.78 mm)

1шт.

15

A156376

SHAFT

- cross

1шт.

16

A158745

GEAR

ASSEMBLY - side, LH, Includes: Ref. 17

1шт.

17

41-1028

PLUG,Cup, 1 3/4"

- expansion, 1-3/4 inch (44 mm)

1шт.

18

A158744

GEAR

ASSEMBLY - side, RH, Includes: Ref. 19 and 20

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A153709

OIL SEAL

- oil, RH side gear

1шт.

26

A7891

ROLLER BEARING

CONE - bearing, 2-1/2 inch ID (64 mm)

2шт.

27

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- housing

2шт.
