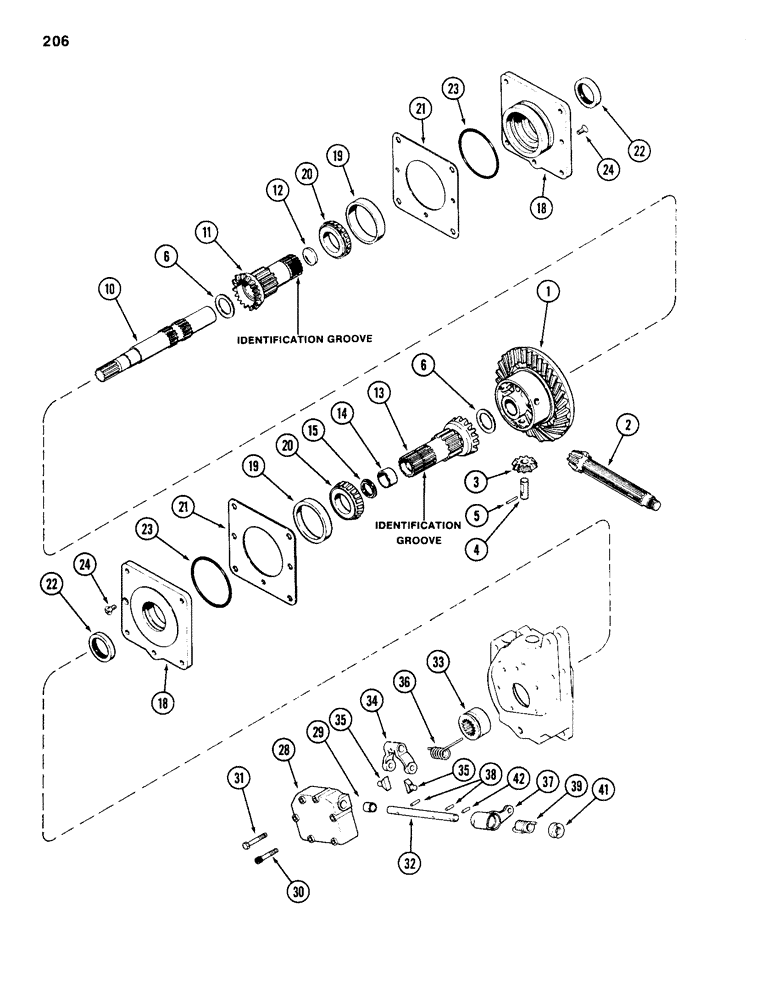

Запчасти Case 584D (206) - TRANSAXLE DIFFERENTIAL AND LOCK, PRIOR TO TRANSMISSION SERIAL NO . 16249203 (21) - TRANSMISSION

A50996

GEAR, BEVEL

PINION AND RING GEAR - transaxle (Matched set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (rivet type)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12 inch long (305 mm)

1шт.

3

A142676

PINION

GEAR - pinion

3шт.

4

A146541

PIN

- pinion gear

3шт.

5

A140705

PIN

- groove, 3/16 x 2 inch (5 x 51 mm)

3шт.

6

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, ring gear, 0.089 inch (2.26 mm)

1шт.

6

A39007

WASHER

- thrust, ring gear, 0.094 inch (2.40 mm)

1шт.

6

A39008

WASHER

- thrust, ring gear, 0.099 inch (2.52 mm)

1шт.

6

A39009

WASHER

- thrust, ring gear, 0.104 inch (2.66 mm)

1шт.

6

A39010

WASHER

- thrust, ring gear, 0.109 inch (2.78 mm)

1шт.

6

A39011

WASHER

- thrust, ring gear, 0.119 inch (3.04 mm)

1шт.

10

A144266

SHAFT

- cross

1шт.

11

A144337

GEAR

ASSEMBLY - side, right hand (Identification groove on spline gear), Includes: Ref. 12

1шт.

12

A29902

PLUG

- RH side gear, 1-5/8 inch expansion (41 mm)

1шт.

13

A144339

GEAR

ASSEMBLY - side, left hand (Identification groove on spline gear), Includes: Ref. 14

1шт.

14

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- LH side gear, 1-9/16 inch (40 mm) OD

1шт.

15

A49793

SEAL - oil, LH side gear, 1-5/8 inch (41 mm) OD

1шт.

Ref. 15. A49793, should be A146027 which subs to A49795.

1шт.

18

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 19

2шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, 4-11/32 inch OD (110 mm)

1шт.

20

A30114

CONE

- bearing, side gear, 2-1/4 inch ID (57 mm)

2шт.

21

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

21

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

21

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

22

A39273

OIL SEAL

- oil, carrier

2шт.

23

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- carrier seal

2шт.

24

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, slotted, 3/8-16 x 1 inch

2шт.

28

A155606

COVER

ASSEMBLY - lock (on LH brake housing), Includes: Ref. 29

1шт.

29

A35925

BUSHING

- cover

1шт.

30

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - hex socket head, 5/16 NC x 2-1/4 inch

1шт.

31

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

32

A158384

SHAFT

- actuating, 11-5/32 inch long (283 mm) (Replaces A148547)

1шт.

33

A156677

COLLAR

- differential lock (Replaces A142029)

1шт.

34

A38749

LEVER

- collar throw-out

1шт.

35

A65101

FINGER

S -, Serial Range: lever-collar

2шт.

36

A156559

SPRING

- throwout lever

1шт.

37

A148426

LEVER

- actuating

1шт.

38

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

39

A36446

SPRING

- actuating lever

1шт.

41

A148134

RETAINER

- actuating lever spring (with 2 holes)

1шт.

42

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (5 x 32 mm) 3/16" x 1 1/4", Slotted

1шт.
