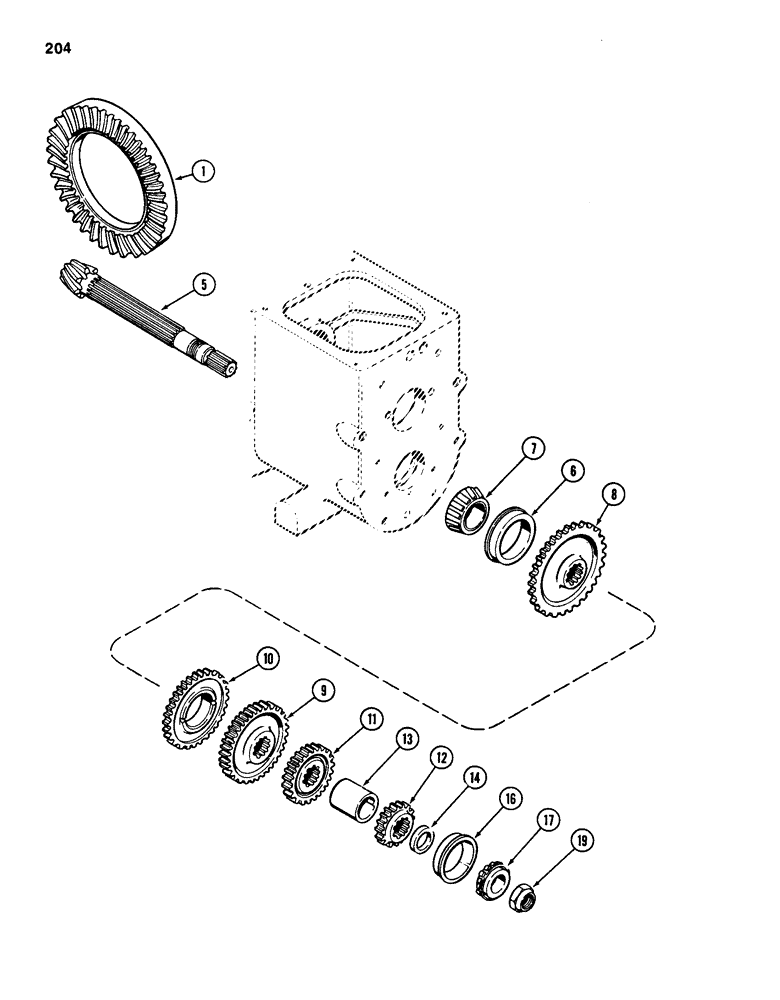

Запчасти Case 584D (204) - TRANSAXLE COUNTERSHAFT, 2 AND 4 WHEEL DRIVE, TRANSMISSION SERIAL NO. 16270319 AND AFTER (21) - TRANSMISSION

A168883

GEAR, BEVEL

PINION AND RING GEAR - transaxle (Matched set), Includes: Ref. 1 and 5

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168824)

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP - bearing, rear, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, rear, 1-5/8 inch ID (41 mm)

1шт.

8

A153751

GEAR

- first (47 external and 10 internal teeth)

1шт.

9

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

10

A157304

GEAR

- oil slinger (38 external teeth) (Replaces A51962)

1шт.

11

A51960

GEAR

- third (28 external and 10 internal teeth)

1шт.

12

A154649

GEAR

- fourth (29 external and 10 internal teeth)

1шт.

13

A51959

SPACER

- third and fourth gears

1шт.

14

A179800

SPACER

- thrust, 0.248-0.25 inch (6.30-6.35 mm)

1шт.

14

A179799

SPACER

- thrust, 0.245-0.243 inch (6.22-6.17 mm)

1шт.

14

A179798

SPACER

- thrust, 0.240-0.238 inch (6.10-6.05 mm)

1шт.

14

A179797

SPACER

- thrust, 0.235-0.233 inch (5.97-5.92 mm)

1шт.

14

A179796

SPACER

- thrust, 0.230-0.228 inch (5.84-5.79 mm)

1шт.

14

A179795

SPACER

- thrust, 0.225-0.223 inch (5.72-5.66 mm)

1шт.

14

A179794

SPACER

- thrust, 0.220-0.218 inch (5.59-5.54 mm)

1шт.

14

A179793

SPACER

- thrust, 0.215-0.213 inch (5.46-5.41 mm)

1шт.

14

A179792

SPACER

- thrust, 0.210-0.208 inch (5.33-5.28 mm)

1шт.

14

A179791

SPACER

- thrust, 0.205-0.203 inch (5.21-5.16 mm)

1шт.

14

A179790

SPACER

- thrust, 0.200-0.198 inch (5.08-5.03 mm)

1шт.

14

A179789

SPACER

- thrust, 0.195-0.193 inch (4.95-4.90 mm)

1шт.

14

A179788

SPACER

- thrust, 0.190-0.188 inch (4.83-4.78 mm)

1шт.

14

A179787

SPACER

- thrust, 0.185-0.183 inch (4.70-4.65 mm)

1шт.

14

A179786

SPACER

- thrust, 0.180-0.178 inch (4.57-4.52 mm)

1шт.

14

A179785

SPACER

- thrust, 0.175-0.173 inch (4.45-4.39 mm)

1шт.

14

A179784

SPACER

- thrust, 0.170-0.168 inch (4.32-4.27 mm)

1шт.

14

A179783

SPACER

- thrust, 0.165-0.163 inch (4.19-4.14 mm)

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP - bearing

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE - bearing, rear, 1-5/16 inch ID (33 mm)

1шт.

19

A156260

NUT

- adjusting, countershaft

1шт.
