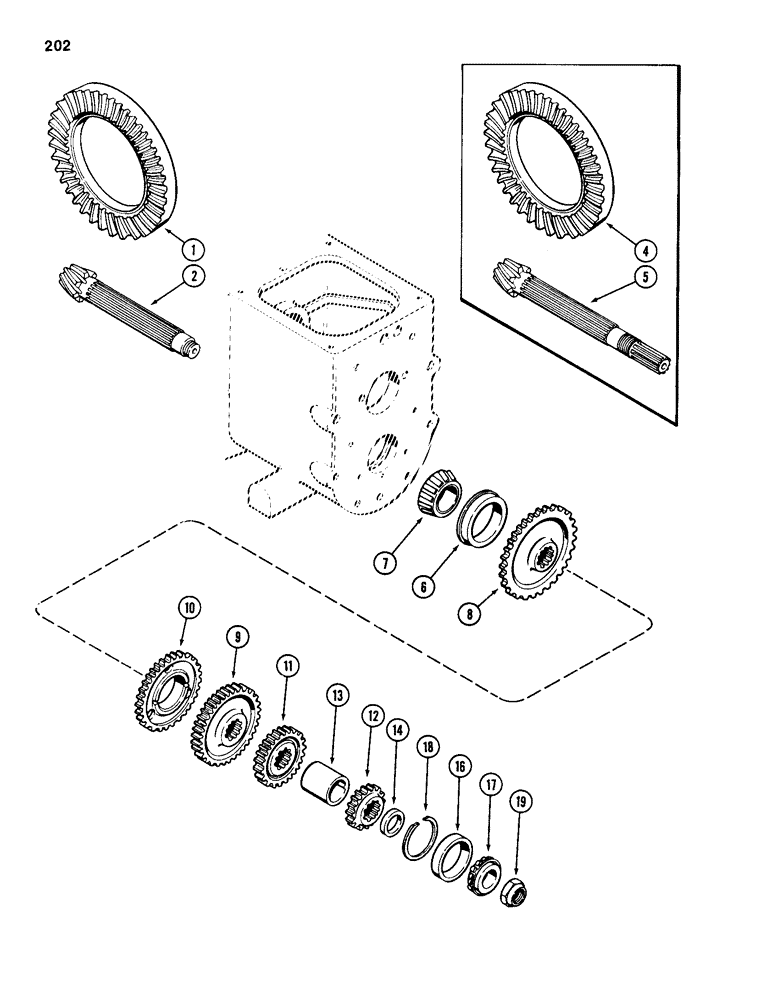

Запчасти Case 584D (202) - TRANSAXLE COUNTERSHAFT, TRANSMISSION SERIAL NO. 16249203 AND TO SERIAL NO 16270318, 2 AND 4WD (21) - TRANSMISSION

A168102

GEAR-SET

PINION AND RING GEAR - 2 wheel drive (Matched set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A16801)

1шт.

A168108

GEAR-SET

PINION AND RING GEAR - 4 wheel drive (Matched set), Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168107)

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP - bearing, rear, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, rear, 1-5/8 inch ID (41 mm)

1шт.

8

A153751

GEAR

- first (47 external and 10 internal teeth)

1шт.

9

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

10

A157304

GEAR

- oil slinger (38 external teeth) (Replaces A51962)

1шт.

11

A51960

GEAR

- third (28 external and 10 internal teeth)

1шт.

12

A154649

GEAR

- fourth (29 external and 10 internal teeth)

1шт.

13

A51959

SPACER

- third and fourth gears

1шт.

14

A153776

SPACER

- thrust, 0.250-0.258 inch (6.35-6.55 mm) (2 wheel drive only)

1шт.

14

A153775

SPACER

- thrust, 0.244 inch (6.20 mm) (2 wheel drive only)

1шт.

14

A153774

SPACER

- thrust, 0.239 inch (6.08 mm) (2 wheel drive only)

1шт.

14

A153773

SPACER

- thrust, 0.234 inch (5.95 mm) (2 wheel drive only)

1шт.

14

A153772

SPACER

- thrust, 0.229 inch (5.81 mm) (2 wheel drive only)

1шт.

14

A153771

SPACER

- thrust, 0.224 inch (5.71 mm) (2 wheel drive only)

1шт.

14

A153770

SPACER

- thrust, 0.219 inch (5.59 mm) (2 wheel drive only)

1шт.

14

A153769

SPACER

- thrust, 0.214 inch (5.41 mm) (2 wheel drive only)

1шт.

14

A153754

SPACER

- thrust, 0.210-0.218 inch (5.34-5.56 mm)

1шт.

14

A153755

SPACER

- thrust, 0.209 inch (5.31 mm)

1шт.

14

A153756

SPACER

- thrust, 0.204 inch (5.18 mm)

1шт.

14

A153757

SPACER

- thrust, 0.199 inch (5.08 mm)

1шт.

14

A153758

SPACER

- thrust, 0.194 inch (4.94 mm)

1шт.

14

A153759

SPACER

- thrust, 0.189 inch (4.81 mm)

1шт.

14

A153760

SPACER

- thrust, 0.184 inch (4.68 mm)

1шт.

14

A153761

SPACER

- thrust, 0.179 inch (4.57 mm)

1шт.

14

A153762

SPACER

- thrust, 0.174 inch (4.45 mm)

1шт.

14

A153763

SPACER

- thrust, 0.169 inch (4.30 mm)

1шт.

14

A153764

SPACER

- thrust, 0.164 inch (4.18 mm)

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP - flanged bearing (Replaces A153748 and A153750)

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE - bearing, rear, 1-5/16 inch ID (33 mm)

1шт.

19

G49010

LOCK NUT

- adjusting, countershaft, 2 wheel drive

1шт.
