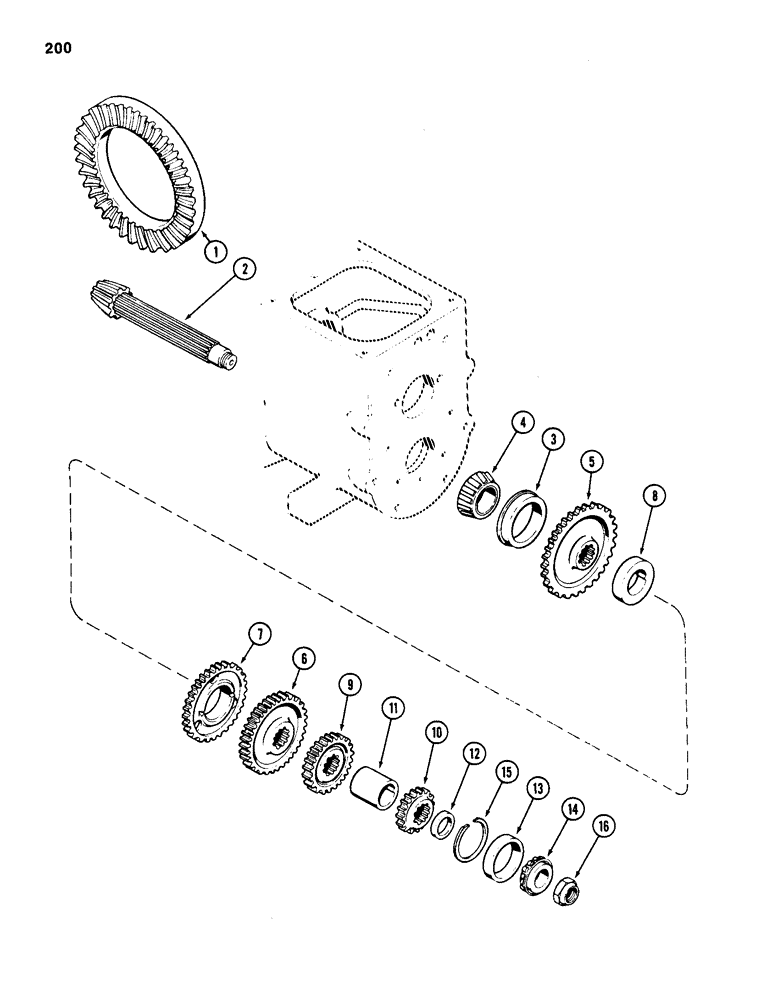

Запчасти Case 584D (200) - TRANAXLE COUNTERSHAFT, PRIOR TO TRANSMISSION SERIAL NO. 16249203, 2 AND 4WD (21) - TRANSMISSION

A50996

GEAR, BEVEL

PINION AND RING GEAR - transaxle (Matched set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (rivet type) (Reference No. A146155)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12 inch long (305 mm) (Reference No. A146154)

1шт.

3

A30115

CUP

- bearing, front, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

4

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, front, 1-5/8 inch ID (41 mm) (Order D44321)

1шт.

5

A38157

SPRING

- first (47 external and 10 internal teeth)

1шт.

6

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

7

A51962

GEAR

- oil slinger (38 external teeth)

1шт.

8

A138847

SPACER

- first and second gear, 3 inch (76 mm) OD

1шт.

9

A51960

GEAR

- third (28 external and 10 internal teeth

1шт.

10

A150248

PINION

GEAR - fourth (19 external and 10 internal teeth)

1шт.

11

A51959

SPACER

- third and fourth gears, 2-5/16 inch (59 mm) OD

1шт.

12

A38751

SPACER

- thrust, 0.254 inch (6.46 mm)

1шт.

12

A38752

SPACER

- thrust, 0.244 inch (6.20 mm)

1шт.

12

A38753

SPACER

- thrust, 0.239 inch (6.08 mm)

1шт.

12

A38754

SPACER

- thrust, 0.234 inch (5.95 mm)

1шт.

12

A38755

SPACER

- thrust, 0.229 inch (5.82 mm)

1шт.

12

A38756

SPACER

- thrust, 0.224 inch (5.70 mm)

1шт.

12

A38757

SPACER

- thrust, 0.219 inch (5.58 mm)

1шт.

12

A38758

SPACER

- thrust, 0.214 inch (5.44 mm)

1шт.

12

A38760

SPACER

- thrust, 0.218 inch (5.55 mm)

1шт.

12

A38759

SPACER

- thrust, 0.209 inch (5.32 mm)

1шт.

12

A38761

SPACER

- thrust, 0.204 inch (5.20 mm)

1шт.

12

A38762

SPACER

- thrust, 0.199 inch (5.06 mm)

1шт.

12

A38763

SPACER

- thrust, 0.194 inch (4.94 mm)

1шт.

12

A38764

SPACER

- thrust, 0.189 inch (4.82 mm)

1шт.

12

A38765

SPACER

- thrust, 0.184 inch (4.68 mm)

1шт.

12

A38766

SPACER

- thurst, 0.179 inch (4.56 mm)

1шт.

12

A38767

SPACER

- thrust, 0.174 inch (4.42 mm)

1шт.

12

A38768

SPACER

- thrust, 0.169 inch (4.30 mm)

1шт.

12

A38769

SPACER

- thrust, .0164 inch (4.8 mm)

1шт.

13

A29977

BEARING CUP

CUP - bearing, rear, 2-3/4 inch OD (70 mm)

1шт.

14

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - bearing, rear, 13/16 inch ID (21 mm)

1шт.

15

A29971

RING

- snap, rear bearing retaining

1шт.

16

G49010

LOCK NUT

- adjusting, countershaft

1шт.
