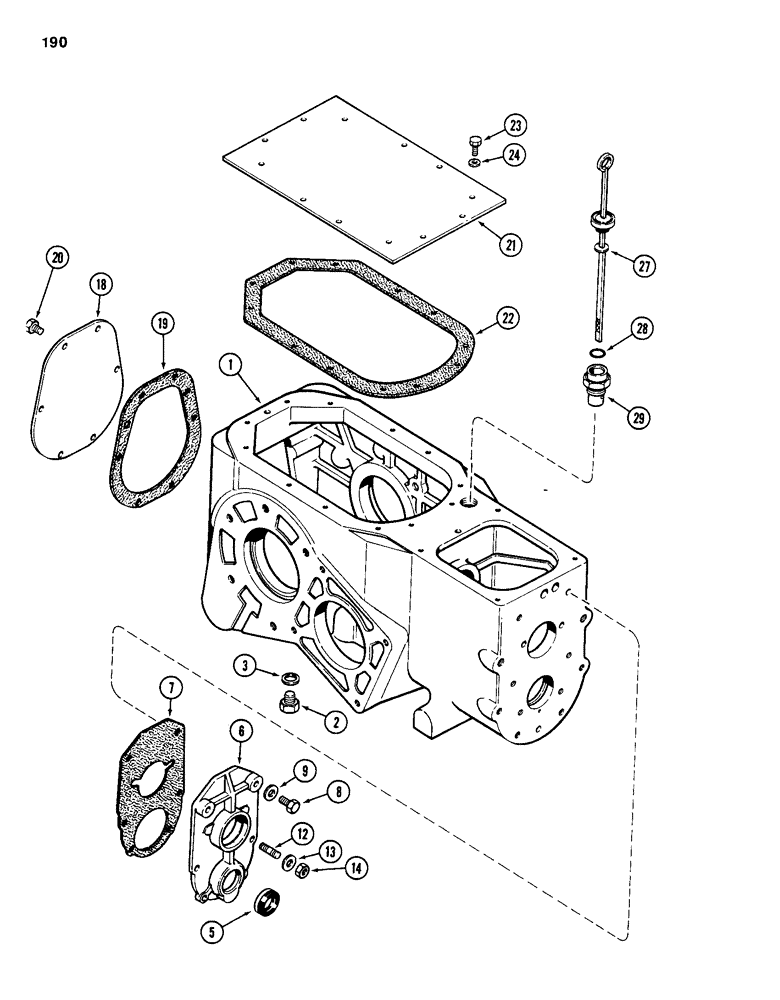

Запчасти Case 584D (190) - TRANSAXLE TRANSMISSION HOUSING, TWO WHEEL DRIVE, TRANSMISSION SERIAL NO. 16270319 AND AFTER (21) - TRANSMISSION

1

A157659

HOUSING

- transmission

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

5

A179056

OIL SEAL

- oil

1шт.

6

A168851

COVER

- transmission housing, front

1шт.

7

G46849

GASKET

- front cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1 inch

2шт.

9

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 7/64") (14 x 27 x 3 mm)

2шт.

12

A29717

STUD

- cover, center, 1-1/2 inch

2шт.

12

G10710

STUD

- cover, bottom, 1-3/4 inch

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

14

129-123

NUT,3/8"-24, G5

4шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

G10447

GASKET

- rear cover to transmission housing

1шт.

JI CASE INSTALLED HOUSING MAY NOT HAVE A COVER GASEKT. IF REAR HOUSING COVER IS REMOVED, INSTALL A GASKET PRIOR TO REASSEMBLY.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A153744

COVER

- transmission housing, top, rear

1шт.

22

A15377

GASKET - top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

10шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- cover bolt, hardened

10шт.

27

A154967

DIPSTICK

- oil gauge, Includes: Ref. 28

1шт.

28

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
