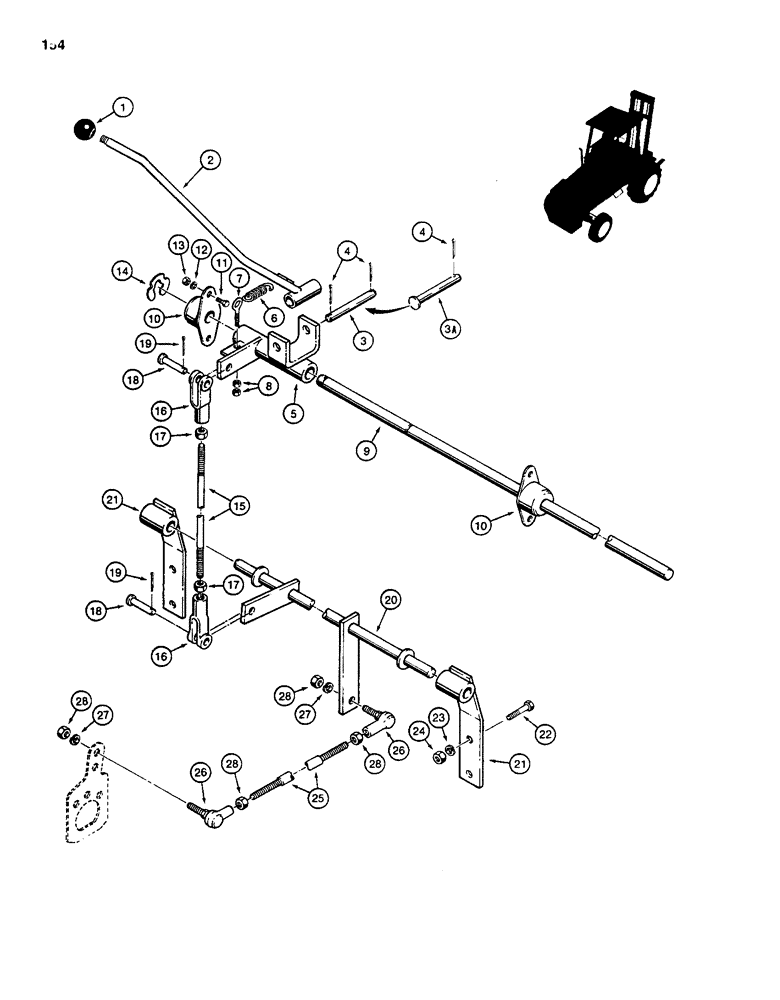

Запчасти Case 584D (154) - SHUTTLE CONTROL AND LINKAGE (21) - TRANSMISSION

1

D59912

KNOB

- shuttle control lever

1шт.

2

D77330

LEVER

CONTROL LEVER - shuttle control

1шт.

3

T51361

CLEVIS PIN

PIN - control lever pivot, if used

1шт.

3a

141-59

CLEVIS PIN,3/8" x 2 1/4"

- 3/8", control lever pivot, if used

1шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1-2шт.

5

D77115

PIVOT

BELLCRANK - shuttle control lever

1шт.

6

D91097

SPRING

- shuttle control lever

1шт.

7

F13855

SCREW,#10 - 24 x 1 45/64"

EYEBOLT - spring tightening

1шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

9

D68519

SHAFT

- control levers, upper

1шт.

For mast control levers and linkage, see Figure 305.

1шт.

10

L15401

BEARING,15.89mm ID

- shaft

2шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINER - bearing

2шт.

15

R26943

ROD

- shuttle control

1шт.

16

H44198

YOKE

CLEVIS - rod end, metal, plated, replaces fiberglass clevis on some models

2шт.

17

129-122

NUT,5/16"-24, G5

2шт.

18

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Rod ends 5/16" x .940"

2шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

20

D68619

SHAFT

- shuttle control, lower

1шт.

21

D77722

BRACKET

- shaft mounting

2шт.

22

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

D78108

CONTROL

ROD - to power shuttle

1шт.

26

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - shuttle rod

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

129-121

NUT,1/4"-28, G5

4шт.
