Запчасти Case 584D (150) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (21) - TRANSMISSION

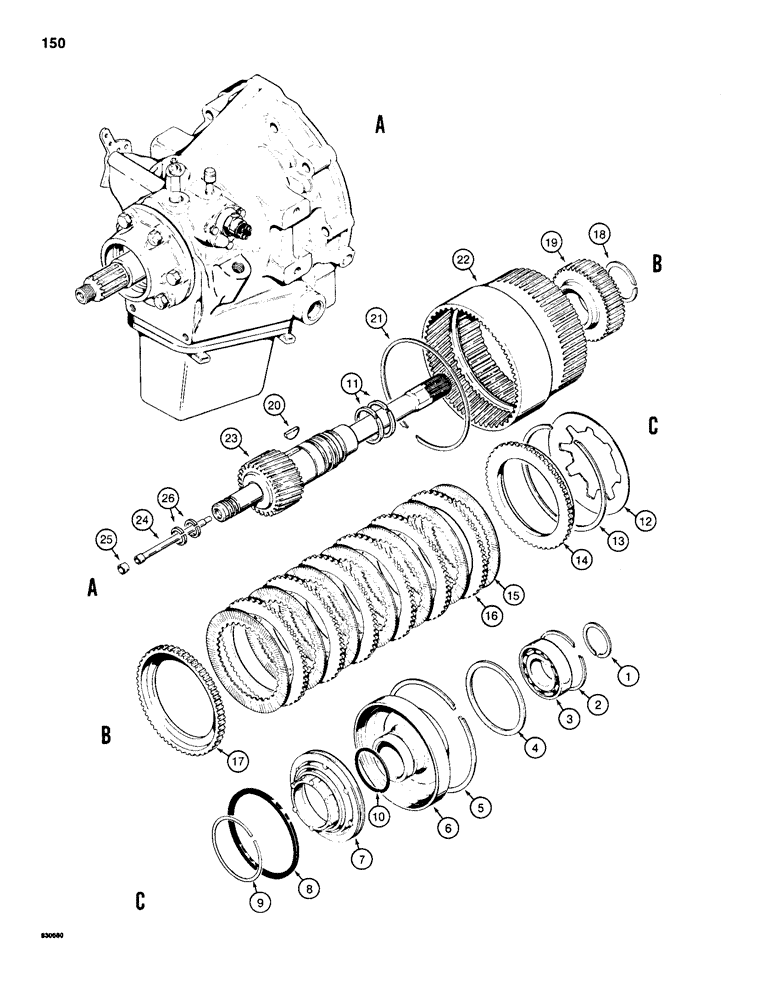

Схема запчастей Case 584D - (150) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (21) - TRANSMISSION
2
7
16
24
4
10
12
17
8
1
23
19
14
15
22
13
26
3
21
25
9
11
20
5
6
18

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 145 for service information, parts list Figures 145-153, Includes: Ref. 1 - 26

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

3

D50044

BALL BEARING

- clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

THRUST WASHER - forward clutch

1шт.

5

D50046

RING

- ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

7

D70670

PISTON

- forward clutch

1шт.

8

D50077

RING

- piston

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- piston

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - cylinder

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

- Belleville

1шт.

13

D50048

CIRCLIP

RING - retaining, pressure plate

1шт.

14

D50081

PLATE,139.12mm OD

- pressure, rear

1шт.

15

D70672

PLATE

DISC - friction, internal tooth

7шт.

16

D50083

PLATE

DISC - friction, external tooth

6шт.

17

D50084

PLATE,139.45mm OD

- pressure, front

1шт.

18

D50049

RING

- clutch hub retaining

1шт.

19

D75853

HUB

- clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

21

Q1127842

PIN

RING - .050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

21

D78397

RING

- .062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

21

D50052

RING

- .074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

21

D78398

RING

- .084" (2.134 mm) to .088" (2.235 mm) thick

1шт.

21

D50053

RING

- .096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

22

D50054

GEAR

RING GEAR - power shuttle

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY - power shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

INPUT SHAFT - drive

1шт.

24

N7043

TUBE

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- sealing

2шт.
