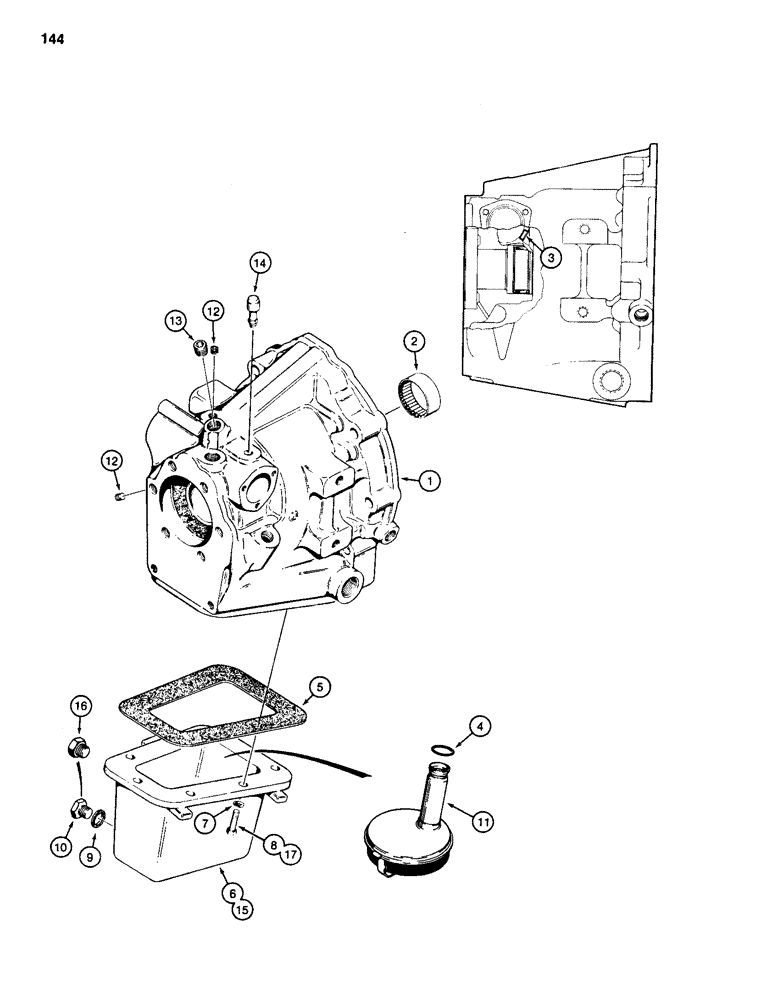

Запчасти Case 584D (144) - POWER SHUTTLE, HOUSING AND OIL PAN (21) - TRANSMISSION

D88050

TRANSMISSION

POWER SHUTTLE ASSEMBLY - Warner Gear No. 10-16-000-022, for service order D101784 Kit below and D73776 yoke on figure 146, parts list Figures 145-153, Includes: Ref. 1 - 17

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D136020

CLUTCH ASSEMBLY

POWER SHUTTLE - service replacement for D125633 (Warner Gear 10-16-000-026)& D135731(10-16-000-033) power shuttles used in production on some models, inc.instruction sheet, parts list Figs.145-153, D135731 power, Incl.: Ref. 1-17, 41&42 Fig. 141

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D70650

HOUSING

ASSEMBLY - power shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

- housing, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

- Cup, 7/16"

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

- screen tube

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan, if used

1шт.

5

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

R29902

PAN

OIL PAN - power shuttle, no longer available, order N13577 oil pan, 221-841 drain plug, and (7) 113-221 bolts, see Refs. 15-17

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

D73701

PLUG

ASSEMBLY - drain, used with R29902 oil pan, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.

11

D66455

FILTER SCREEN

SCREEN - sump, power shuttle

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

13

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

1шт.

14

D50062

BREATHER

- power shuttle

1шт.

15

N13577

PAN

OIL PAN - power shuttle

1шт.

16

221-481

PLUG - hex socket head, 1/4" NPT

1шт.

17

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

D101784

TRANSMISSION

KIT - power shuttle, includes D125633 power shuttle assembly and installation instructions

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
