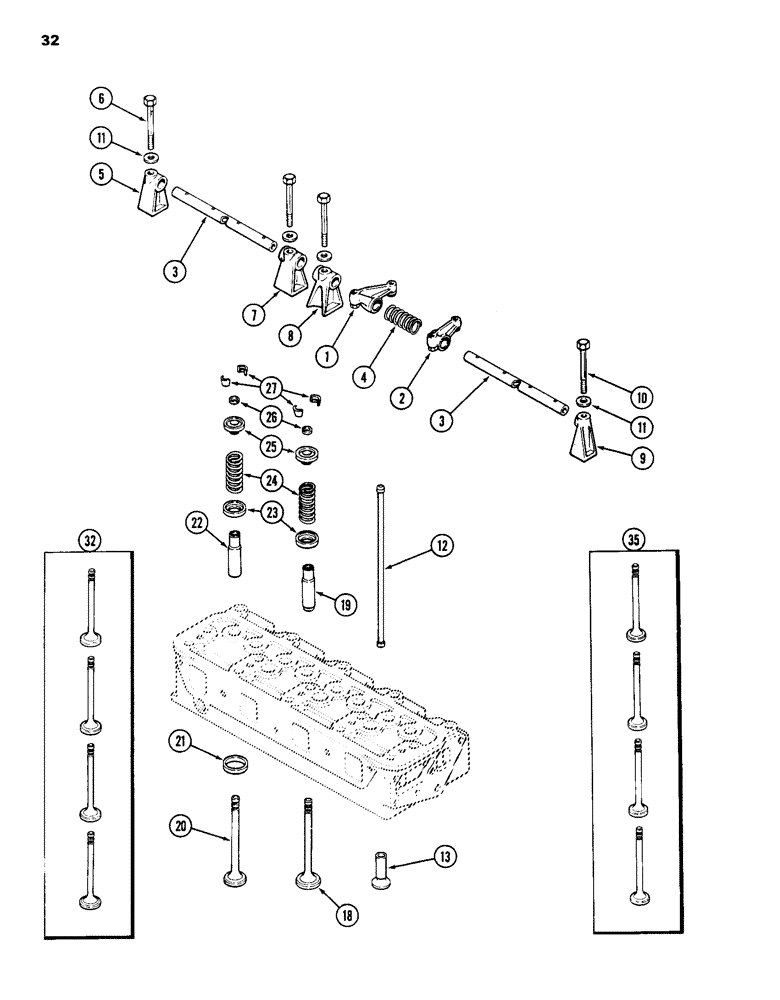

Запчасти Case 584D (032) - VALVE MECHANISM, 188 DIESEL ENGINE (10) - ENGINE

1

A51149

ARM

ASSEMBLY - rocker, left hand, with adjusting screw

4шт.

2

A51148

ARM

ASSEMBLY - rocker, right hand, with adjusting screw

4шт.

3

A38181

SHAFT

- rocker arm

2шт.

4

G48501

SPRING

- rocker arm shaft

4шт.

5

A36615

BRACKET

- rear, rocker arm shaft

1шт.

6

G49067

BOLT

- hex drilled, rear bracket

1шт.

7

G2101

BRACKET

- center

1шт.

8

A51084

BRACKET

- intermediate

2шт.

9

G2100

BRACKET

- front

1шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

4шт.

11

A30058

WASHER

- bracket bolt

5шт.

12

G47079

ROD

- push

8шт.

13

G47077

TAPPET

LIFTER - push rod

8шт.

18

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 25) (Reference No. A38422)

4шт.

19

G2068

GUIDE

- intake valve, 3-1/4 inch long

4шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref 32 ) (Reference No. A38423)

1шт.

21

A47078

NUT

INSERT - exhaust valve seat (Replaces A39268)

4шт.

22

G2069

GUIDE

- exhaust valve, 3-1/8 inch long

4шт.

23

G49065

SEAT

- valve spring

8шт.

24

A30025

SPRING

- valve

8шт.

25

G11717

RETAINER

- valve spring

8шт.

26

G46851

SEAL

- valve stem (Rubber)

8шт.

27

A30004

RETAINER

LOCK - retainer

16шт.

32

A41727

VALVE

KIT - exhaust (Set of 4)

1шт.

35

A41726

VALVE

KIT - intake (Set of 4)

1шт.
