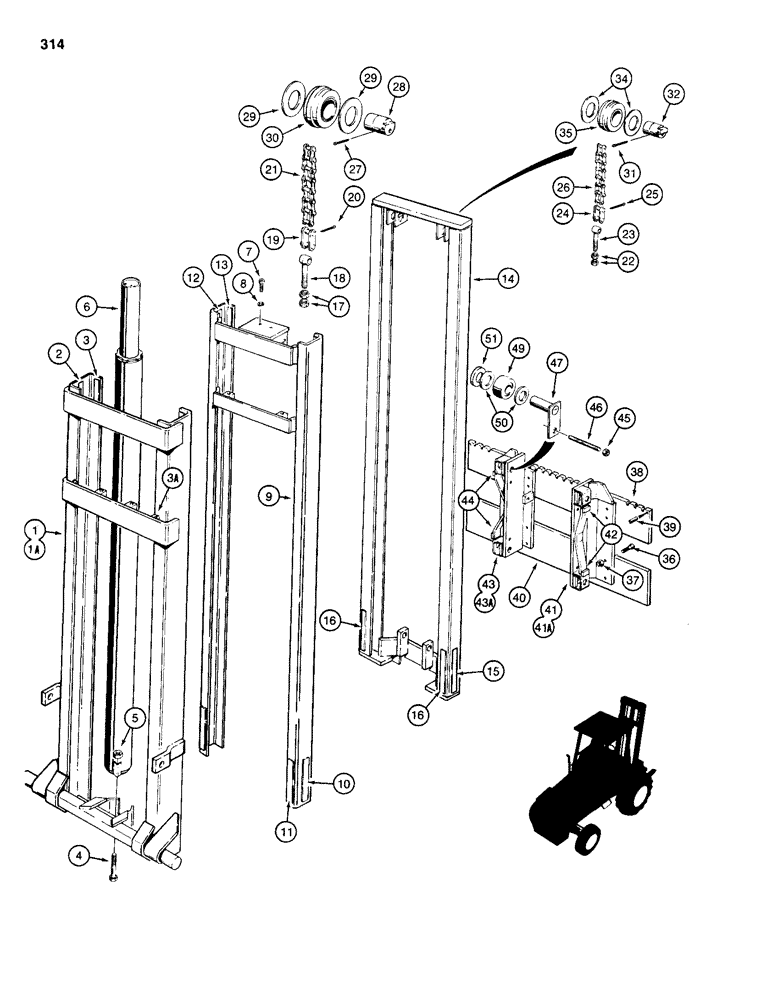

Запчасти Case 584D (314) - 28 FOOT (8.5 M) MAST FOR 584D (83) - TELESCOPIC SINGLE ARM

D121917

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 51

1шт.

1

D55400

FRAME - outer, used before mast SN 53561

1шт.

1a

N8802

FRAME ASSY

FRAME - outer, used on mast SN 53561 and after, Includes: Ref. 2, 3 and 3A

1шт.

2

D55411

STRIP

WEAR PLATE - 1/8" (3 mm) x 6" (152 mm)

2шт.

3

D55409

STRIP

WEAR PLATE - 3/16" (5 mm) x 6" (152 mm)

4шт.

3a

D47895

WEAR PAD

WEAR PLATE - 5/16" (8 mm) x 4-1/2" (114 mm), D55400 frame only

2шт.

4

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex head, 7/16" - 14 NC x 6", plated

1шт.

5

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

6

N7644

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 296

1шт.

7

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket head, self-locking, 1/2" - 20 NF x 2"

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

D55401

FRAME

- center, Includes: Ref. 10 - 13

1шт.

10

D55412

STRIP

WEAR PLATE - 1/8" (3 mm) x 10" (254 mm)

2шт.

11

D55410

STRIP

WEAR PLATE - 3/16" (5 mm) x 10" (254 mm)

4шт.

12

D55411

STRIP

WEAR PLATE - 1/8" (3 mm) x 6" (152 mm)

2шт.

13

D55409

STRIP

WEAR PLATE - 3/16" (5 mm) x 6" (152 mm)

4шт.

14

D55402

FRAME

- inner, Includes: Ref. 15 and 16

1шт.

15

D27362

WEAR PAD

WEAR PLATE - 1/8" (3 mm) x 10" (254 mm)

2шт.

16

D27365

PAD

WEAR PLATE - 3/16" (5 mm) x 10" (254 mm)

4шт.

17

129-130

NUT,1"-14, G5

- hex, 1" - 14 NF, plated

4шт.

18

N6877

BOLT

- chain

2шт.

19

N6878

CHAIN LINK

LINK - connecting, Includes: Ref. 20

4шт.

20

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

21

D55397

CHAIN (AG)

CHAIN - lift, 115 links

2шт.

22

129-128

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF, plated

4шт.

23

N6011

BOLT

- chain, for service order both N6011 eyebolt and N6010 connecting link

2шт.

The N6011 includes the N6010 Link

1шт.

24

N6010

LINK,50.749mm Pitch

- connecting, Includes: Ref. 25

4шт.

25

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

26

D55398

CHAIN (CE)

CHAIN - lift, 137 links

2шт.

27

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

28

N7324

KIT

PIN - guide wheel

2шт.

29

D36582

WASHER

THRUST WASHER - roller

4шт.

30

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - guide

2шт.

31

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

32

D87070

PIN

- wheel, service, includes grease fitting not required, Includes: Ref. 33

2шт.

33

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

34

60944

THRUST WASHER

THRUST WASHER - roller

4шт.

35

D87069

SPROCKET ASSY.

WHEEL - guide, sealed

2шт.

36

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

37

129-145

JAM NUT,Jam, 1/2"-13, G5

16шт.

38

D47875

LARGE PLATE

BACK PLATE - upper

1шт.

39

138-2050

PIN,7/16" x 2", Coiled

2шт.

40

D47876

LARGE PLATE

BACK PLATE - lower

1шт.

41

D55405

SHEET

CARRIAGE - right-hand, used before mast SN 53561

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

41a

N8805

SUPPORT ASSY.

CARRIAGE - right-hand, used on mast SN 53561 and after, Includes: Ref. 42

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D55407

WEAR PAD

WEAR PLATE - bronze, D55405 or N8805 carriage

2шт.

43

D55406

SHEET

CARRIAGE - left-hand, used before mast SN 53561

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

43a

N8806

SUPPORT ASSY.

CARRIAGE - left-hand, used on mast SN 53561 and after, Includes: Ref. 44

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

44

D55407

WEAR PAD

WEAR PLATE - bronze, D55406 or N8806 carriage

2шт.

45

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

46

178-692

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

- hex socket headless, 1/2" - 13 NC x 2-3/4", oval point

4шт.

47

D86606

AXLE

PIN - roller, service, includes grease fitting not required, Includes: Ref. 48

4шт.

48

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

49

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

ROLLER - load

4шт.

50

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

THRUST WASHER - roller

8шт.

51

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

THRUST WASHER - roller

4шт.
