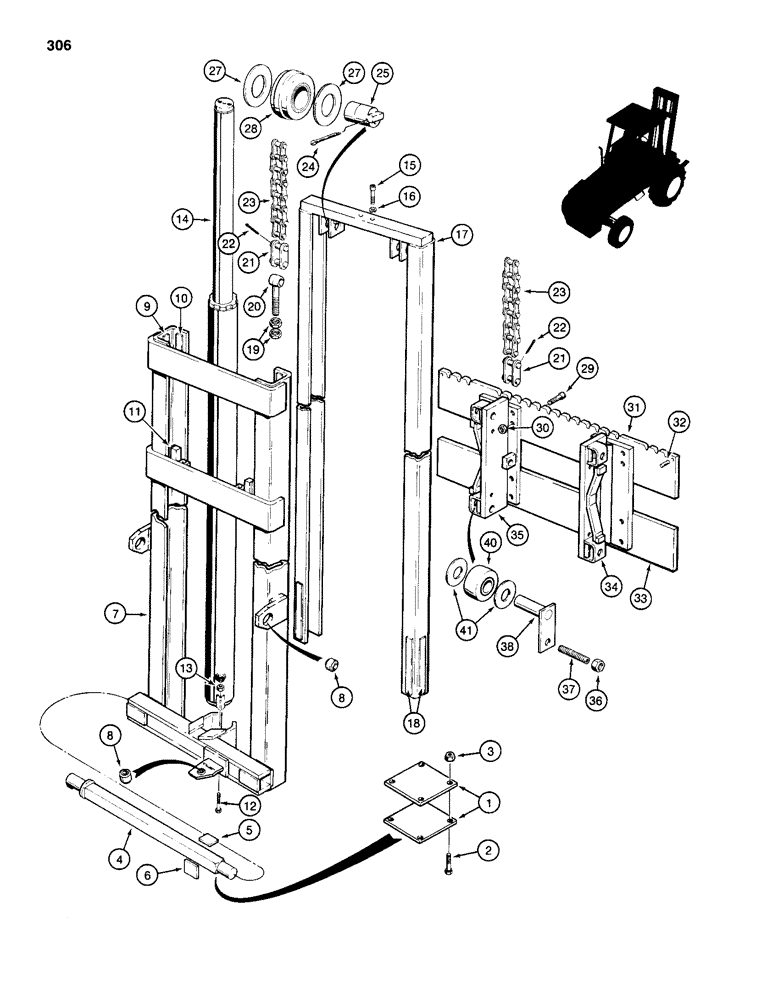

Запчасти Case 584D (306) - 14-1/4 FOOT (4.3 M) MAST FOR 584D (83) - TELESCOPIC SINGLE ARM

D121915

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 41

1шт.

1

D88745

LARGE PLATE

PLATE - trunnion bar ends

4шт.

2

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

8шт.

3

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

4

D75934

BAR

- trunnion

1шт.

5

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

6

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.

7

D75936

CHANNEL

FRAME - outer, Includes: Ref. 8 - 11

1шт.

8

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

BEARING - self-aligning

3шт.

9

D32555

PAD

WEAR PLATE - 1/8" (3 mm) x 5" (127 mm)

2шт.

10

D27366

WEAR PAD

WEAR PLATE - 1/8" (3 mm) x 7" (178 mm)

4шт.

11

D47895

WEAR PAD

WEAR PLATE - 5/16" (8 mm) x 4-1/2" (114 mm)

2шт.

12

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex head, 7/16" - 14 NC x 6", plated

1шт.

13

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

14

N7643

CYLINDER

- lift, parts list figure 296

1шт.

15

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket head, self-locking, 1/2" - 20 NF x 2"

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

D77580

FRAME

- inner, Includes: Ref. 18

1шт.

18

60972

STRIP

WEAR PLATE - 1/8" (3 mm) x 11" (279 mm)

6шт.

19

129-125

NUT,1/2"-20, G5

4шт.

20

N6012

BOLT

- chain

2шт.

21

N6010

LINK,50.749mm Pitch

- connecting, lift chain, Includes: Ref. 22

4шт.

22

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

23

D34446

CHAIN

- lift, 113 links

2шт.

24

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

25

D87070

PIN

- wheel, service, includes grease fitting not required, Includes: Ref. 26

2шт.

26

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

2шт.

27

60944

THRUST WASHER

THRUST WASHER - wheel

4шт.

28

D87069

SPROCKET ASSY.

WHEEL - chain guide, sealed

2шт.

29

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

30

129-145

JAM NUT,Jam, 1/2"-13, G5

16шт.

31

D47875

LARGE PLATE

BACK PLATE - upper

1шт.

32

138-2050

PIN,7/16" x 2", Coiled

2шт.

33

D47876

LARGE PLATE

BACK PLATE - lower

1шт.

34

D47901

SUPPORT ASSY.

CARRIAGE ASSEMBLY - right-hand, includes (2) N7958 wear plates

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

35

D47902

SUPPORT ASSY.

CARRIAGE ASSEMBLY - left-hand, includes (2) N7958 wear plates

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

36

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

37

178-693

SET SCREW,Hex Soc, 1/2"-13 x 3"

- hex socket headless, 1/2" - 13 NC x 3", oval point

4шт.

38

D86604

AXLE

PIN - roller, service, includes grease fitting not required, Includes: Ref. 39

4шт.

39

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

4шт.

40

D47894

ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W

ROLLER - load

4шт.

41

60917

THRUST WASHER

THRUST WASHER - roller

8шт.
