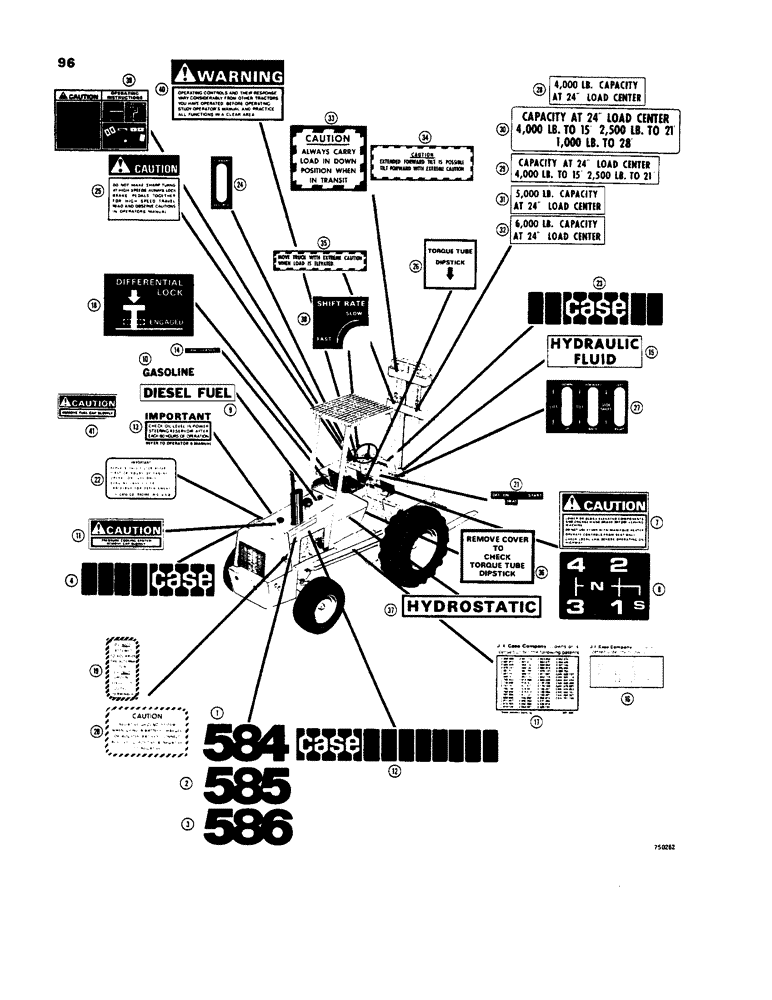

Запчасти Case 584 (96) - DECALS, LATE PRODUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-3146

DECAL

- "584" (If used), Includes: Ref. 1 - 41

2шт.

2

321-3147

DECAL - "585" (If used)

2шт.

3

321-3148

DECAL - "586" (If used)

2шт.

4

321-3182

DECAL

- CASE, 4" high (L.H.)

1шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

321-3051

DECAL

- cautions, operator's warning (Shuttle models only)

1шт.

8

321-1228

DECAL

- shifting pattern (Shuttle models only)

1шт.

9

321-230

DECAL

- diesel fuel

1шт.

10

321-18

DECAL

- gasoline

1шт.

11

321-3061

DECAL

- warning, pressure cap (Radiator shroud)

1шт.

12

321-3183

DECAL

- CASE, 4" high (R.H.)

1шт.

13

321-2102

DECAL

- check oil level, on power steering unit

1шт.

14

321-1654

DECAL

- air cleaner (On dash)

1шт.

15

321-229

DECAL

- hydraulic fluid

1шт.

16

321-663

DECAL

- patent, equipment

1шт.

17

321-246

DECAL

- patent, tractor

1шт.

18

321-1646

DECAL

- differential lock

1шт.

19

321-1061

DECAL

- caution, alternator

1шт.

20

321-1062

DECAL

- caution, battery ground

1шт.

21

321-2445

DECAL

- starting (Gas or diesel models)

1шт.

22

321-2101

DECAL

- oil filter

1шт.

23

321-3149

DECAL

- CASE, 4" high (Control console)

1шт.

24

321-2145

DECAL

- shuttle lever control (shuttle models only)

1шт.

25

321-1726

DECAL

- Caution, turning

1шт.

26

321-2125

DECAL

- torque tube dipstick (Shuttle models only)

1шт.

27

321-2146

DECAL

- fork lift control

1шт.

28

D55885

DECAL

- load capacity, 4000 lb. (14 ft. mast)

1шт.

29

D55888

DECAL

- load capacity, 4000 lb. (21 ft. mast)

1шт.

30

D55889

DECAL

- load capacity, 4000 lb. (28 ft. mast)

1шт.

31

D55886

DECAL

- load capacity, 5000 lb. mast

1шт.

32

D55887

DECAL

- load capacity, 6000 lb. mast

1шт.

33

D33165

DECAL

- "CAUTION, CARRY LOAD IN DOWN POSITION WHEN IN TRANSIT"

1шт.

34

D55891

DECAL

- caution, forward tilt

1шт.

35

D33166

DECAL

- "MOVE TRUCK WITH EXTREME CAUTION WHEN LOAD IS ELEVATED"

1шт.

36

321-2337

DECAL

- "REMOVE COVER TO CHECK TORQUE TUBE DIPSTICK" (Hyrostatic models only)

1шт.

37

321-2060

DECAL

- "HYDROSTATIC" (Hydrostatic models only)

2шт.

38

321-1656

DECAL

- shift rate (Hydrostatic models only)

1шт.

39

321-2390

DECAL

- operating instructions (Hydrostatic models only)

1шт.

40

321-2486

DECAL

- warning, read instructions first (Hydrostatic models only)

2шт.

41

321-3057

DECAL

- "CAUTION, REMOVE FUEL CAP SLOWLY" (Hydrostatic models only)

1шт.
