Запчасти Case 584 (82) - FORWARD & REVERSE SPEED CONTROLS - UPPER, HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

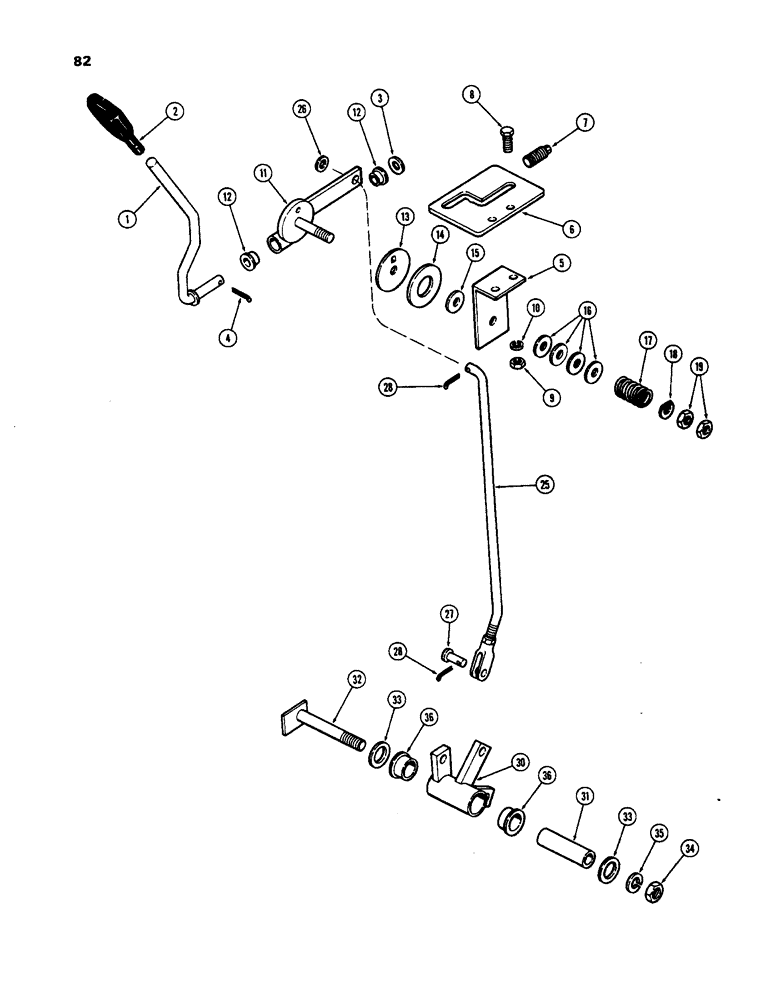

Схема запчастей Case 584 - (82) - FORWARD & REVERSE SPEED CONTROLS - UPPER, HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
28
15
27
7
2
5
8
12
16
17
18
3
34
11
1
28
35
30
4
36
25
10
33
31
26
12
14
33
6
36
32
19
13

Артикул

Название

Примечание

Количество

1

A44374

LEVER - hand, speed control

1шт.

2

A43812

KNOB

- control lever

1шт.

3

195-33

WASHER,1/2"

- plain, 17/32 x 1-1/16 x 3/32"

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - mounting, hand lever

1шт.

6

A44384

PLATE - guide, hand speed control

1шт.

7

A44383

PLUNGER - guide plate

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

A44375

PIVOT - hand speed control

1шт.

12

A43810

BUSHING

- pivot (nylon)

2шт.

13

A57029

DISC

- friction (steel)

1шт.

14

A11969

GASKET

DISC - friction (fiber)

1шт.

15

A32838

WASHER

- plain (17/32 x 1-1/4 x 5/64")

1шт.

16

195-533

WASHER,1/2", SAE

- plain, 7/16 x 1-3/16 x 3/32")

4шт.

17

A34113

SPRING

- tension, lever pivot

1шт.

18

A44372

WASHER - bent (17/32 x 1-1/16 x 3/32")

1шт.

19

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

25

A44371

ROD - hand speed control

1шт.

26

195-525

WASHER,3/8", SAE

- plain, 13/32 x 13/16 x 5/64"

1шт.

27

A43785

PIN

- yoke, hand speed control rod

1шт.

28

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

30

A44378

BELLCRANK - speed control

1шт.

31

A44377

SLEEVE - bellcrank, speed control

1шт.

32

A44379

BOLT ASSY. - bellcrank mounting

1шт.

33

D33753

WASHER

- plain (1-1/64 x 1-1/2 x 1/16")

2шт.

34

129-107

NUT,5/8"-11, G5

1шт.

35

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

36

F51555

BEARING

BUSHING - pivot, nylon (1-1/64" I.D. x 1-1/2" flange O.D.)

3шт.

Выбрано товаров: 30
