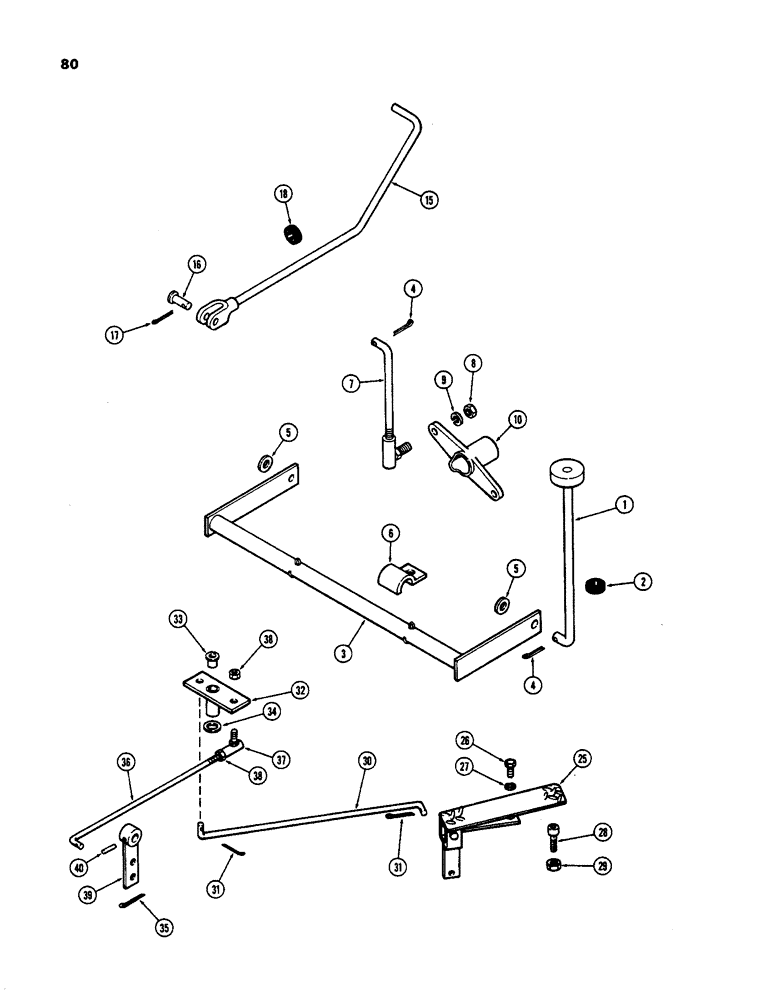

Запчасти Case 584 (80) - DIFFRNTL LOCK CONTRLS, HYDSTC TRANSM, MCHNCL DISCONCT CONTRLS,HYDSTC TRANS,FOOT THRTTL,HYDSTC TRANSM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A51368

PEDAL - differential lock control, differential lock controls hydrostatic transmission

1шт.

2

A38599

GROMMET,11/16" ID x 1" Groove Dia

- floor plate, differential lock controls hydrostatic transmission

1шт.

3

A51381

BELLCRANK - differential lock control, differential lock controls hydrostatic transmission

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Differential lock controls hydrostatic transmission 1/8" x 1"

2шт.

5

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), differential lock controls hydrostatic transmission 1/2"

2шт.

6

A51382

CLIP - bellcrank mounting, differential lock controls hydrostatic transmission

2шт.

7

A51369

ROD ASSY. - push. differential lock lever, differential lock controls hydrostatic transmission

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., differential lock controls hydrostatic transmission

1шт.

9

92-6

LOCK WASHER,3/8"

differential lock controls hydrostatic transmission 3/8"

1шт.

10

A39841

LEVER

- differential lock, differential lock controls hydrostatic transmission

1шт.

15

A51370

ROD - control, mechanical disconnect,mechanical disconnect controls hydrostatic transmission

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, 1/4", mechanical disconnect controls hydrostatic transmission

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, 1/4", mechanical disconnect controls hydrostatic transmission

1шт.

17

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) , Mechanical disconnect controls hydrostatic transmission 1/16" x 5/8"

1шт.

18

A38599

GROMMET,11/16" ID x 1" Groove Dia

- platform, mechanical disconnect controls hydrostatic transmission

1шт.

25

A43802

PEDAL ASSY. foot throttle, foot throttle hydrostatic transmission

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Foot throttle hydrostatic transmission Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

foot throttle hydrostatic transmission 3/8"

1шт.

28

61-420

HEX SOC SCREW,1/4"-20 x 1 1/4"

SCREW - cap, 3/8 x 1-1/4" N.C. hex. socket hd., foot throttle hydrostatic transmision

1шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., foot throttle hydroststic transmission

1шт.

30

A43807

ROD - pedal to bellcrank, foot throttle hydrostatic transmission

1шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", foot throttle hydrostatic transmission

2шт.

32

A43808

BELLCRANK - throttle control, foot throttle hydrostatic transmission

1шт.

33

A43810

BUSHING

- bellcrank pivot, foot throttle hydrostatic transmission

1шт.

34

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), foot throttle hydrostatic transmission 1/2"

2шт.

35

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Foot throttle hydrostatic transmission 1/8" x 1"

1шт.

36

A39875

ROD

ASSY. - rear, foot throttle, foot throttle hydrostatic transmission, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

BALL JOINT

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., ball joint

2шт.

39

D41200

LEVER

- throttle, cross shaft, ball joint

1шт.

40

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Ball joint 5/32" x 1", Slotted

1шт.
