Артикул
Название
Примечание
Количество
1
A43802

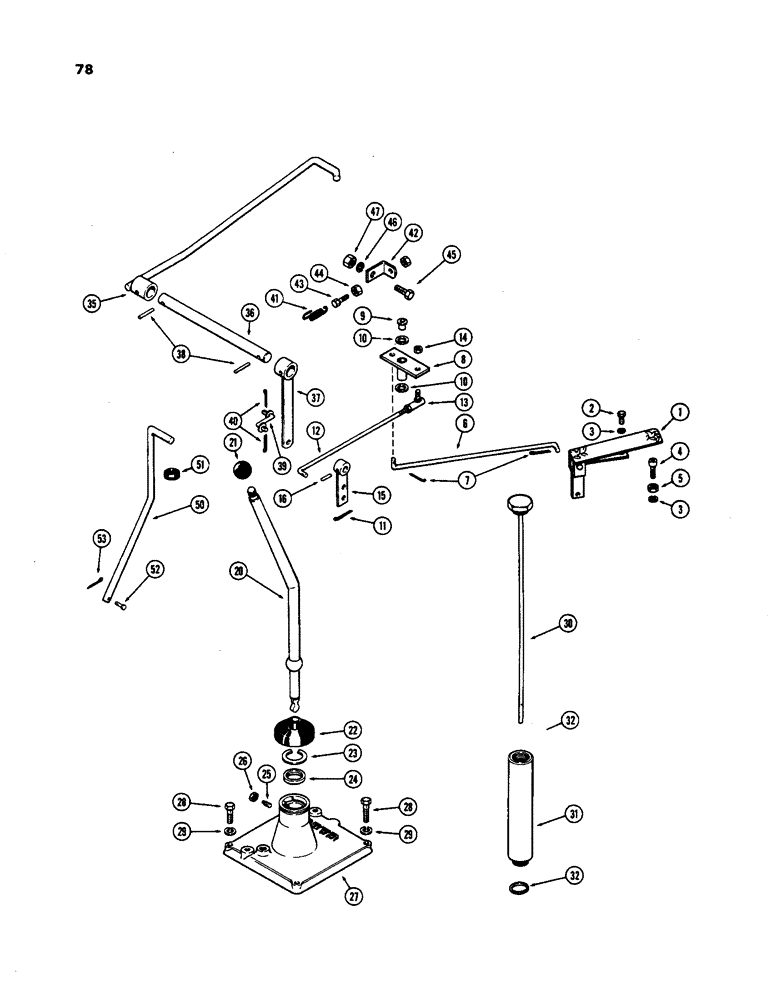

PEDAL ASSY. - foot throttle, fot throttle and gear shift shuttle transmission
1шт.
2
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Foot throttle and gear shift Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
3
92-6
LOCK WASHER,3/8"
foot throttle and gear shift shuttle transmission 3/8"
2шт.
4
61-420
HEX SOC SCREW,1/4"-20 x 1 1/4"
SCREW - cap, 3/8 x 1-1/4" hex. socket hd., N.C., foot throttle and gear shift shuttle transmission
1шт.
5
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex., foot throttle and gear shift shuttle transmission
1шт.
6
A43807
ROD - throttle pedal to bellcrank, foot throttle and gear shift shuttle transmission
1шт.
7
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4", foot throttle and gear shift shuttle transmission
3шт.
8
A43808
BELLCRANK - throttle contol, foot throttle and gear shift shuttle transmission
1шт.
9
A43810
BUSHING
- bellcrank pivot, foot throttle and gear shift shuttle transmission
1шт.
10
95-8
WASHER,1/2"
(9/16 x 1-3/8 x 7/64"), foot throttle and gear shift shuttle transmission 1/2"
2шт.
11
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), , Foot throttle and gear shift shuttle transmission 1/8" x 1"
1шт.
12
A39875
ROD
ASSY. - rear, foot throttle, foot throttle and gear shift shuttle transmission, Includes: Ref. 13 and 14
1шт.
13
NSS
NOT SOLD SEPARAT
BALL JOINT, foot throttle and gear shift shuttle transmission
1шт.
14
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex., foot throttle and gear shift shuttle transmission
2шт.
15
D41200
LEVER
- throttle, cross shaft, foot throttle and gear shift shuttle transmission
1шт.
16
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, , Foot throttle and gear shift shuttle transmission 5/32" x 1", Slotted
1шт.
20
A39832
LEVER
- gear shift, foot throttle and gear shift shuttle transmission
1шт.
21
A23885
KNOB
- gear shift, foot throttle and gear shift shuttle transmission
1шт.
22
A57876
COVER
- dust, foot throttle and gear shift shuttle transmission
1шт.
23
A26836
RING, SNAP
RING - snap, lever seat, foot throttle and gear shift shuttle transmission
1шт.
24
A7923
SEAT
RING - seat, shift lever, foot throttle and gear shift shuttle transmission
1шт.
25
G15468
SET SCREW,5/16" - 18 x 3/4"
- set, lever retaining, foot throttle and gear shift shuttle transmission
1шт.
26
25-146
JAM NUT,Jam, 3/8"-16, G5
- jam, 3/8" N.C. hex., foot throttle and gear shift shuttle transmission
1шт.
27
A36155
COVER
- transmission,, foot throttle and gear shift shuttle transmisssion
1шт.
28
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex., foot throttle and gear shift shuttle transmission
2шт.
28
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
Foot throttle and gear shift shuttle transmission Hex, 3/8"-16 x 2", G5
2шт.
29
92-6
LOCK WASHER,3/8"
foot throttle and gear shift shuttle transmission 3/8"
4шт.
30
A39824
DIPSTICK - transmission oil, foot throttle and gear shift shuttle transmission
1шт.
31
A39823
TUBE - dipstick, trans. case, foot throttle and gear shift shuttle transmission
1шт.
32
A38660
GASKET
- dipstick tube, foot throttle and gear shift shuttle transmission
1шт.
35
A39880
LEVER - clutch, foot throttle and gear shift shuttle transmission
1шт.
36
A38573
SHAFT - cross, clutch lever. foot throttle and gear shift shuttle transmission
1шт.
37
A38571
LEVER
- clutch spool, foot throttle and gear shift shuttle transmision
1шт.
38
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Foot throttle and gear shift shuttle transmission 1/4" x 1 1/2", Slotted
2шт.
39
A38574
LINK - clutch spool, foot throttle and gear shift shuttle transmission
1шт.
40
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), , Foot throttle and gear shift shuttle transmission 1/16" x 1/2"
2шт.
41
A38576
SPRING - return, clutch lever, foot throttle and gear shift shuttle transmission
1шт.
42
A38577
BRACKET - return, foot throttle and gear shift shuttle transmission
1шт.
43
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
Foot throttle and gear shift shuttle transmission Hex, 1/4"-20 x 1 1/4", G5
1шт.
44
25-144
JAM NUT,Jam, 1/4"-20, G5
- jam, 1/4" N.C. hex., foot throttle and gear shift shuttle transmission
2шт.
45
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
Foot throttle and gear shift shuttle transmission Hex, 1/2"-13 x 1 1/2", G5, Full Thd
1шт.
46
92-8
LOCK WASHER,1/2"
foot throttle and ger shift shuttle transmission 1/2"
1шт.
47
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex., foot throttle and ear shift shuttle transmission
1шт.
50
A39881
ROD - differential lock control, differential lock controls shuttle transmission
1шт.
51
A38599
GROMMET,11/16" ID x 1" Groove Dia
- rod to platform, differential lock controls shuttle transmission
1шт.
52
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke, differential lock controls shuttle transmission 5/16" x .940"
1шт.
53
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4", differential lock controls shuttle transmission
1шт.
Выбрано товаров: 47
