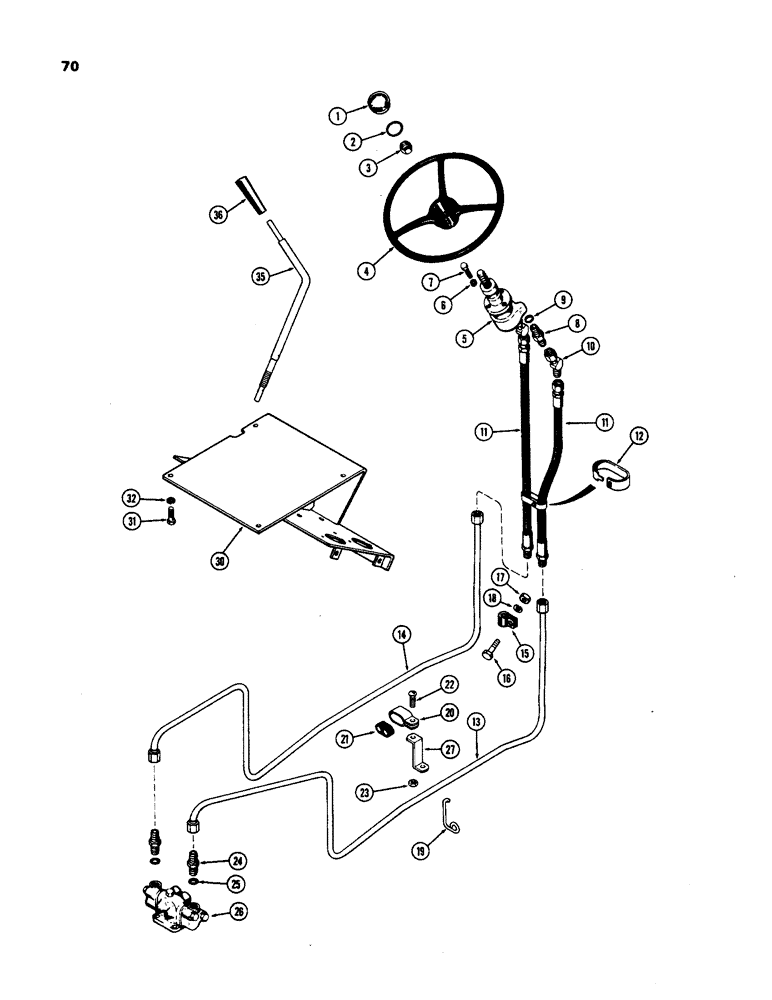

Запчасти Case 584 (70) - STEERING, SEAT SUPPORT AND HAND THROTTLE, SHUTTLE OR HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

2

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

3

A14567

JAM NUT

Steering wheel

1шт.

4

A35602

STEERING WHEEL

WHEEL - steering

1шт.

5

A39237

PUMP

ASSY - hydrostatic steering (See 580BCK Tractor Cat. for repairs)

1шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Hose, 1/2" tube x 3/4" N.C., Incl. Ref 9

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" tube

1шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1/2" tube

2шт.

11

A36162

TUBE

HOSE - pump to tube (29")

2шт.

12

A35209

CLAMP

Hose

1шт.

13

A38466

SPARE PART RH, steering valve

1шт.

14

A38467

SPARE PART LH, steering valve

1шт.

15

49838

CLAMP

Tube

2шт.

16

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

17

25-106

NUT,3/8"-16, G5

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

G15434

SPARE PART Tube

1шт.

20

G46194

CLAMP

Tube

3шт.

21

G46835

GROMMET

Tube clamp

3шт.

22

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

#10-32 x 3/4" Phillips hd.

3шт.

23

193-1000

NUT,Keps, w/LW,#10-32

3шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Tube, 1/2" tube x 3/4" N.C., Incl. Ref 25

2шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" tube

1шт.

26

REF

INSTRUCTION

VALVE - hydrostatic steering (Order from 580B CK Cat.)

1шт.

27

A38555

SUPPORT - steering tube

1шт.

30

D52809

SPARE PART Seat, See Figure 58 for seat assy.

1шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

32

192-21

LOCK WASHER,3/8"

4шт.

35

A38172

LEVER

SPARE PART Hand throttle

1шт.

36

A37247

KNOB

HANDLE - plastic

1шт.
