Артикул
Название
Примечание
Количество

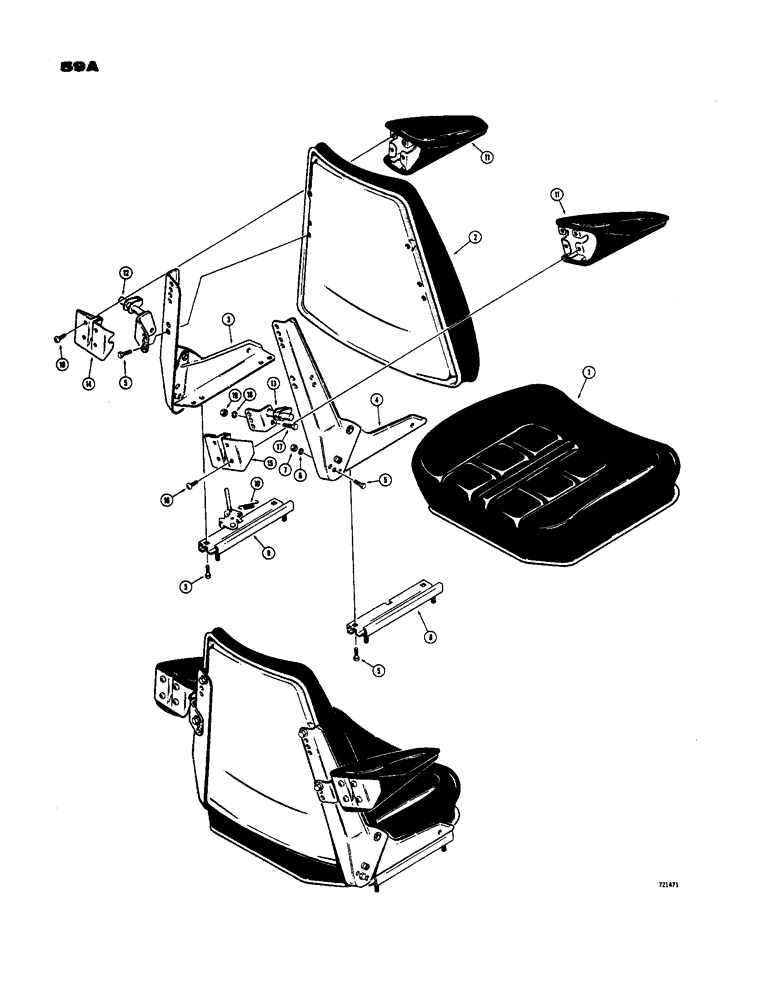

D56409
SEAT
ASSEMBLY - operator (Intermediate production) Order D58271 seat assembly for service listed in Figure 59C, Includes: Ref. 1 - 10
1шт.
1
D56883
SEAT
CUSHION - seat on seat and backfrest cushion and by 391/2" side adjustment handle
1шт.
2
D56884
BACKREST
CUSHION - backrest cushion and by 3-1/2" side adjustment handle
1шт.
3
D56885
RAIL ASSY.
SUPPORT - seat, L.H., on seat and backrest cushion and by 3-1/2" side adjustment handle
1шт.
4
D56886
RAIL ASSY.
SUPPORT - seat. R.H., on seat and backrest cushion and by 3-1/2" side adjustment handle
1шт.
5
113-143
BOLT,5/16" x 5/8"
HHCS - 5/16" - 18 NC x 5/8", on seat and backrest cushion and by 3-1/2" side adjustment handle
14шт.
6
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , On seat and backrest cushion and by 3-1/2" side adjustment handle 5/16"
2шт.
7
9635082
NUT,5/16" - 18, Gr 5
On seat and backrfest cushion and by 3-1/2" side adjustment handle 5/16"-18, G5
2шт.
8
D56887
SEAT
SLIDE - seat, R.H., on seat and beckrest cushion and by 3-1/2" side adjustment handle
1шт.
9
D56888
ADJUSTER
SLIDE - seat, L.H. (Adjustment side), on seat and backrest cushion and by 3-1/2" side adjustment handle
1шт.
10
D56889
SPRING
- adjustment lever, on seat and backrest cushion and by 3-1/2" side adjustment handle
1шт.
D56424
ARMREST
KIT - arm rest, D56424 arm rest kit used with D56409 or D58271 operator's seats only, Includes: Ref. 11 - 19
1шт.
11
D56898
ARMREST
ARM REST - operator, D56424 arm rest kit used with D56409 or D58271 operator's seats only
2шт.
12
D56899
BRACKET
- mounting, L.H., D56424arm rest kit used with D56409 or D5871 operator's seats only
1шт.
13
D56900
BRACKET
- mounting, R.H., D56424 arm rest kit used with D56409 or D58271 operator's seats only
1шт.
14
D56901
BRACKET
PLATE - mounting, L.H., D56424 arm rest kit used with D56409 or D58271 operator's seats only
1шт.
15
D56902
BRACKET
PLATE - mounting, R.H., D56424 arm rest kit used with D56409 or D58271 operator's seats only
1шт.
16
187-1004
SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"
SCREW - self-tapping (#8 - 32 NC x 3/8") Phillips Head, D56424 arm rest kit used with D56409 or D58271 operator's seats only
8шт.
17
113-143
BOLT,5/16" x 5/8"
HHCS - 5/16" - 18 NC x 5/8", D56424 arm rest kit used with D56409 or D58271 operator's seats only
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , D56424 Arm rest kit used with D56409 or D58271 operator's seats only 5/16"
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , D56424 Arm rest kit used with D56409 or D58271zoperator's sets only 5/16"
2шт.
19
9635082
NUT,5/16" - 18, Gr 5
D56424 arm rest kit used with D56409 or D58271 operator's seasts only 5/16"-18, G5
2шт.
Выбрано товаров: 22
