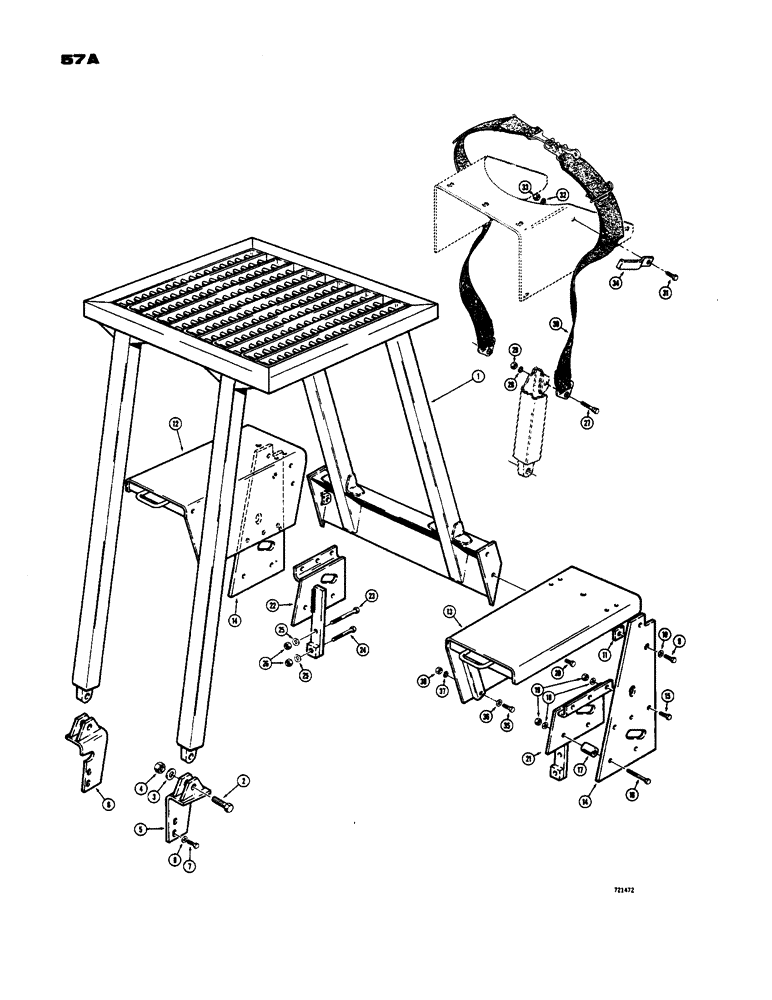

Запчасти Case 584 (57A) - ROLL-OVER PRODUCTION STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MACH.ITEM

ROLL-OVER PROTECTION STRUCTURE - See Figure 2 or 3 for service

1шт.

2

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

HHCS - 1" - 8 NC x 3" (Grade 8)

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

2шт.

4

25-1016

NUT,1"-8, G5

2шт.

PART NUMBER IS CORRECT, CATALOG INDEX ERROR

1шт.

5

F93378

BRACKET - mounting, ROPS (R.H.) Rear

1шт.

6

F93377

BRACKET - mounting, ROPS (L.H.) Rear

1шт.

7

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(Bracket mounting) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

8

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special (5/8")

4шт.

9

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2" (ROPS mtg.) Front

4шт.

10

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special (5/8")

4шт.

11

F42708

INTERIOR LIGHT

SPACER - ROPS mounting, front

4шт.

12

F93387

FENDER - L.H.

1шт.

13

F93388

FENDER - R.H.

1шт.

14

F42522

BRACE - mounting, fenders and front ROPS

2шт.

15

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2" (Upper brace mounting)

6шт.

16

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

HHCS - 5/8" - 11 NC x 3-3/4" (Lower brace mounting)

4шт.

17

F42530

SPACER - lower brace mounting

4шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special (5/8")

10шт.

19

25-1010

NUT,5/8"-11, G5

10шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lower front fender mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

F93383

PLATE - inner, R.H. (Brace to sub frame)

1шт.

22

F93384

PLATE - inner, L.H. (Brace to sub frame)

1шт.

23

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8" (Upper) Subframe to axle

2шт.

24

26-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 8

HHCS - 5/8" - 11 NC x 7-3/4" (Lower) Subframe to axle

2шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

4шт.

26

25-1010

NUT,5/8"-11, G5

4шт.

27

F42236

STEP BOLT

BOLT - special, shouldered (7/16")

2шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

29

425-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

2шт.

30

D60615

SAFETY BELT ,3.00" W

Operator's 3.00" W

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

34

R24720

HOOK

GUIDE - seat belt

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

36

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
