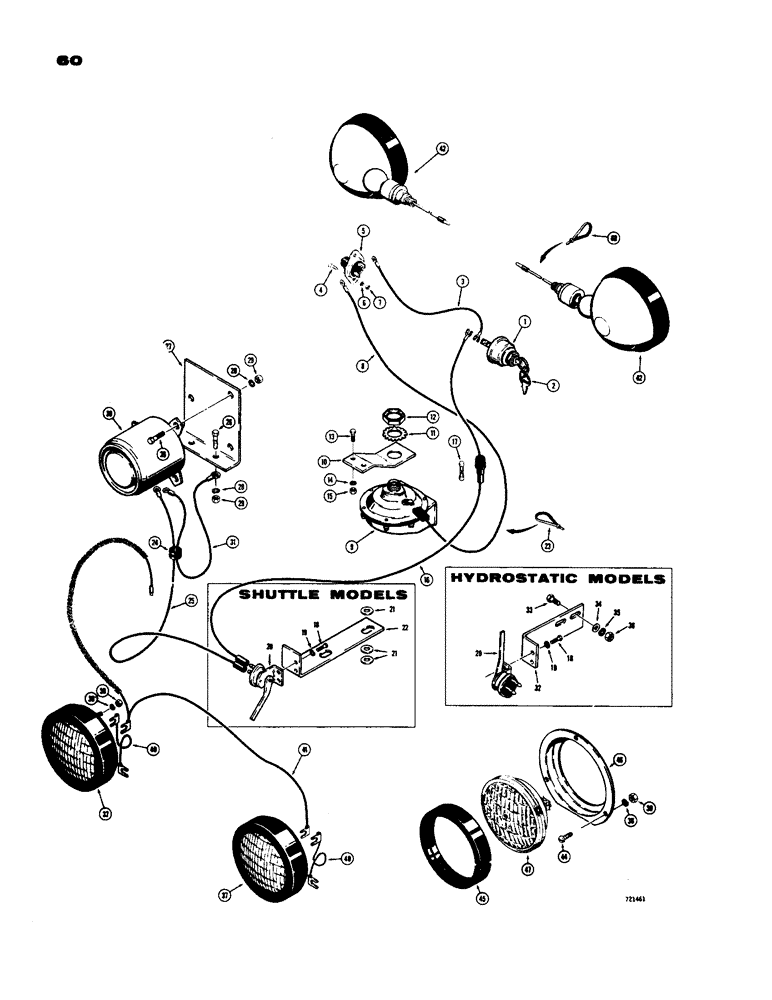

Запчасти Case 584 (60) - HORN, BACKUP ALARM AND LIGHTS, HORN, BACK UP ALARM, LIGHTS (55) - ELECTRICAL SYSTEMS

1

A24511

SWITCH

AND KEY ASSEMBLY - starting, horn, w/key (Gas) Includes Ref. 2

1шт.

2

A24509

KEY

KEY - ignition start, Set of 2, horn

1шт.

3

REF

INSTRUCTION

WIRE - ignition switch to horn button, horn

1шт.

4

173-234

SPARE PART Machine, round head (#5 - 40 N.C. x 1/2"), horn

2шт.

5

A36948

SWITCH

SWITCH - horn control, horn

1шт.

6

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Horn

2шт.

7

129-14

NUT,#5-40

Horn

2шт.

8

D52886

SPARE PART Horn, Serial Range: button-horn

1шт.

9

A19581

HORN

Warning, 12 volt

1шт.

10

A36946

BRACKET

Horn mounting, horn

1шт.

11

193-16

LOCK WASHER,Ext Tooth, 7/8"

Shakeproof (If used), Horn

1шт.

12

L30866

LOCK NUT

Special, horn to bracket, Horn

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Horn

2шт.

14

92-4

LOCK WASHER,1/4"

Horn

2шт.

15

25-104

NUT,1/4"-20, G5

Horn

2шт.

16

D52967

SPARE PART Ignition switch to alarm switch, back up alarm

1шт.

17

223-14

FUSE,10 Amp, Type SFE

Protectivwe, 14 amp, back up alarm

1шт.

18

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

Machine, back up alarm

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

Back up alarm

2шт.

20

A33977

SWITCH

Backup alarm

1шт.

21

195-25

WASHER,3/8"

Shuttle models only, back up alarm

6шт.

22

D52968

SPARE PART Switch mounting (Shuttle models only), back up alarm

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire, back up alarm

1шт.

24

49561

GROMMET,1/4" ID x 7/16" Groove Dia

Wire, back up alarm

1шт.

25

D51823

ELECTRICAL WIRE

WIRE Alarm switch to alarm, back up alarm

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Back up alarm

5шт.

27

D51906

BRACKET

Mounting, alarm, back up alarm

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Back up alarm

5шт.

29

9635082

NUT,5/16" - 18, Gr 5

Back up alarm

5шт.

30

D51820

ALARM

Backup safety, back up alarm

1шт.

31

D51905

ELECTRICAL WIRE

WIRE Ground, alarm, back up alarm

1шт.

32

D57050

SPARE PART Switch mounting (Hydrostatic models only), lights

1шт.

33

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Lights

2шт.

34

195-518

WASHER,1/4", SAE

Lights

2шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

Lights

2шт.

36

7770

NUT,Hex, 1/4 - 20, Cl 5

Lights

2шт.

37

D30243

LAMP

AUXILARY - rear (See 580B Basic Parts Catalog for breakdown) If used, lights

2шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

Lights

6шт.

39

129-17

NUT,Hex, #10 - 24

Lights

6шт.

40

A11768

ELECTRICAL WIRE

WIRE CABLE - ground, head light, lights

2шт.

41

D39242

ELECTRICAL WIRE

WIRE CABLE - connecting, head light, lights

1шт.

42

D49976

LIGHT

ASSEMBLY - front flood (See 580B Basic Parts Catalog for breakdown), lights

2шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire, lights

1шт.

44

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine, If used, lights

6шт.

45

D57287

RETAINER

Light (If used), lights

2шт.

46

D57288

RING

Retaining, light (wrap around) If used, lights

2шт.

47

D33182

LAMP

Sealed beam, lights

2шт.
