Запчасти Case 584 (56) - SUBFRAME AND FENDERS, TOOL BOX (39) - FRAMES AND BALLASTING

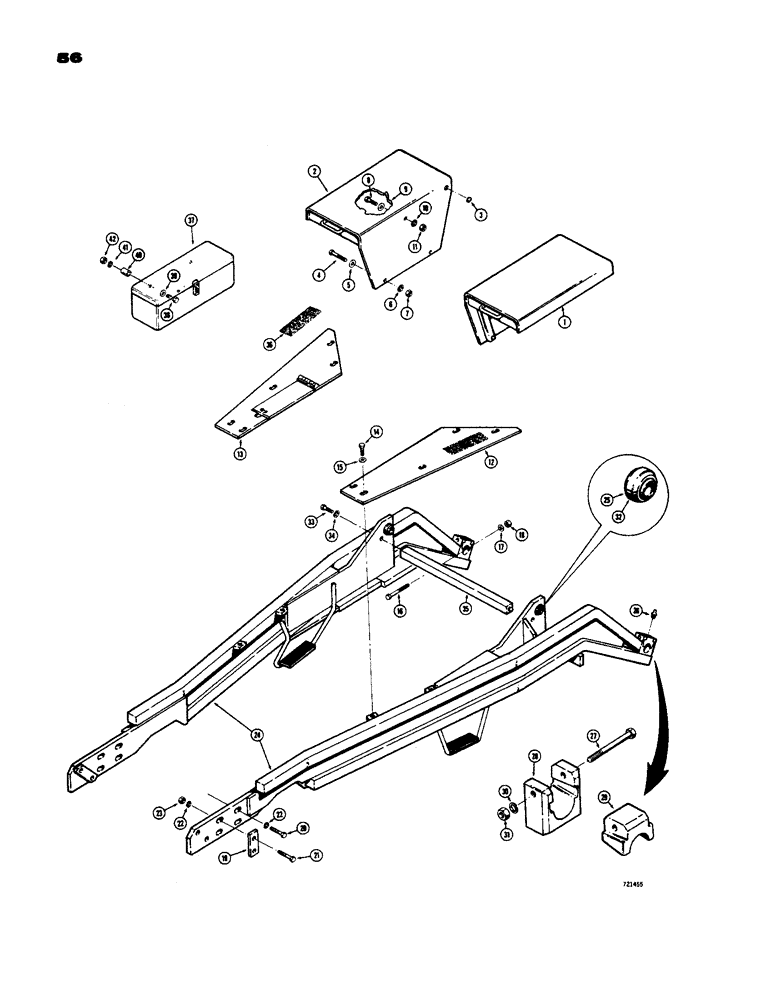

Схема запчастей Case 584 - (56) - SUBFRAME AND FENDERS, TOOL BOX (39) - FRAMES AND BALLASTING
10
30
13
31
22
3
33
5
12
6
20
25
27
7
11
1
9
2
15
39
26
41
40
16
18
29
36
38
37
21
4
19
32
35
8
28
42
24
34
22
23
14
17

Артикул

Название

Примечание

Количество

1

D56374

FENDER - R.H. (Use F93388 fender), subframe and fenders

1шт.

1

F93388

FENDER - R.H., subframe and fenders

1шт.

2

D56375

FENDER - L.H. (Use F93387 fender), subframe and fenders

1шт.

2

F93387

FENDER - L.H., subframe and fenders

1шт.

3

205-32

PLUG - fender mounted light wire access hole, subframe and fenders 3/4"

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(If used), subframe and fenders Hex, 3/8"-16 x 2", G5

2-4шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used, subframe and fenders Hex, 3/8"-16 x 1", G5, Full Thd

2-4шт.

5

195-25

WASHER,3/8"

- plain (), subframe and fenders 3/8"

4шт.

6

92-6

LOCK WASHER,3/8"

subframe and fenders 3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), subframe and fenders

4шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Subframe and fenders Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

9

195-25

WASHER,3/8"

- plain (), subframe and fenders 3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

subframe and fenders 3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), subframe and fenders

2шт.

12

D55912

PLATE

STEP PLATE - R.H. side, subframe and fenders

1шт.

13

D54612

BATTERY ACCESS COVER AND STEP - L.H. side, subframe and fenders

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Subframe and fenders Hex, 3/8"-16 x 1", G5, Full Thd

10шт.

15

195-25

WASHER,3/8"

- plain (), subframe and fenders 3/8"

10шт.

16

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8" (Subframe to axle), subframe and fenders

8шт.

17

A28084

WASHER

- special, subframe and fenders

8шт.

18

129-563

NUT,5/8"-11, G8

- hex. (5/8" - 11 NC), subframe and fenders

8шт.

19

D33174

PLATE - spacer, subframe and fenders

4шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Subframe to cowl, subframe and fenders Hex, 5/8"-11 x 2 1/4", G5

4шт.

21

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Subframe to cowl, subframe and fenders, Includes: Ref. 26 Hex, 5/8"-11 x 3", G5

4шт.

26

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive), subframe and fenders

1шт.

22

95-10

WASHER,5/8"

- standard wrot (), subframe and fenders 5/8"

8шт.

23

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 NC), subframe and fenders

4шт.

D55261

SUBFRAME ASSEMBLY - fork lift, R.H., subframe and fenders, Includes: Ref. 24 - 32

1шт.

D55262

SUBFRAME ASSEMBLY - fork lift, L.H., subframe and fenders, Includes: Ref. 24 - 32

1шт.

24

NSS

NOT SOLD SEPARAT

FRAME - fork lift, L.H. or R.H., subframe and fenders

1шт.

25

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- pivotal ball type, tilt cylinder mounting, subframe and fenders

1шт.

D66315

BLOCK

ASSEMBLY - trunnion, R.H., subframe and fenders

1шт.

D66316

BLOCK

ASSEMBLY - trunnion, L.H., subframe and fenders, Includes: Ref. 27 - 31

1шт.

27

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4", subframe and fenders

1шт.

28

NSS

NOT SOLD SEPARAT

BLOCK - trunnion, R.H. and L.H., subframe and fenders

1шт.

29

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block, R.H. and L.H.,subframe and fenders

1шт.

29

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block, R.H. and L.H., subframe and fenders

1шт.

30

92-6

LOCK WASHER,3/8"

subframe and fenders 3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), subframe and fenders

1шт.

32

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- pivotal ball type, side shift cylinder mounting (L.H. straight only) If used, subframe and fenders

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Tie bar mounting, subframe and fenders Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

subframe and fenders 1/2"

2шт.

35

D55263

TIE BAR - subframe and fenders

1шт.

36

D55216

PAD,2" x 9"

PAD - non slip, subframe and fenders

4шт.

37

D55624

TOOL

BOX - tool, tool box

1шт.

38

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Tool box Hex, 3/8"-16 x 2 1/4", G5

3шт.

39

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated, tool box

3шт.

40

D40893

BUSHING

SPACER - tool box mtg. (1-1/2" long), tool box

3шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Tool box 3/8"

3шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Tool box 3/8"-16, G5

3шт.

Выбрано товаров: 50
