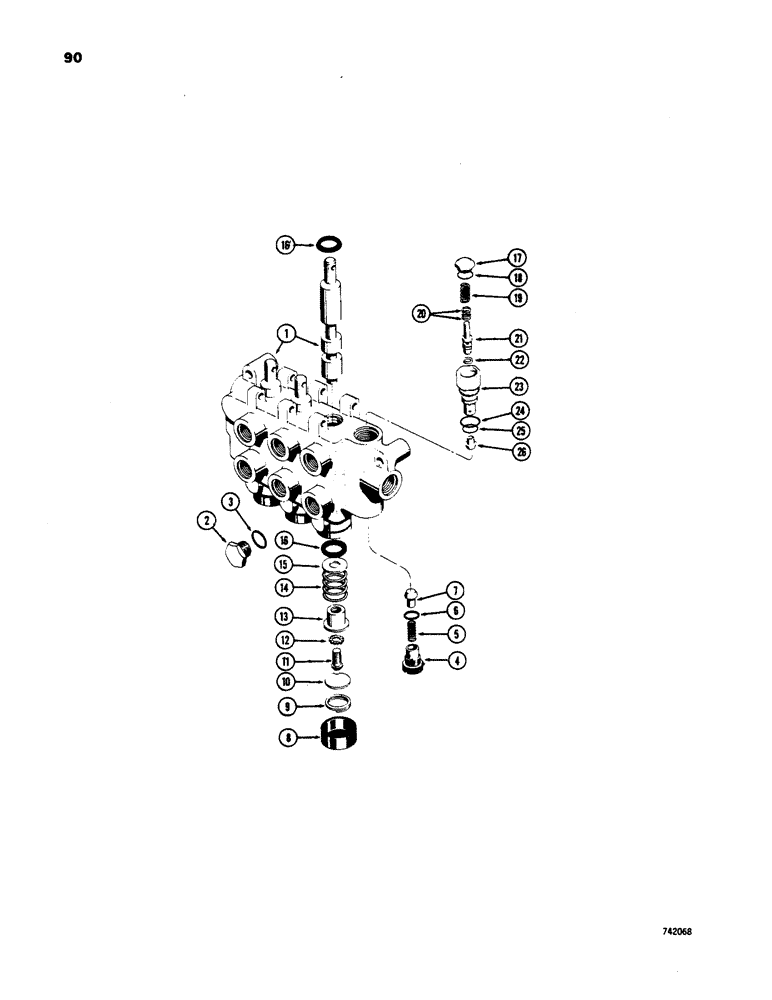

Запчасти Case 584 (90) - FORK LIFT CONTROL VALVE, SHUTTLE OR HYDROSTATIC TRANSMISSION (35) - HYDRAULIC SYSTEMS

D50256

VALVE

ASSY. - control, forklift, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING & SPOOLS - matched set

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

PLUG - oil port (only 1 supplied in assy.) Incl. Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - 5/8" tube

1шт.

4

D28574

PLUG

- check poppet

1шт.

5

D28840

SPRING

- check poppet

1шт.

6

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O"RING - plug, check poppet

1шт.

7

D28576

VALVE POPPET

POPPET - check

1шт.

8

36645

CAP

- rubber

3шт.

9

36633

LID

- snap, stop disc

3шт.

10

663023R1

CAP

- stop

3шт.

11

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring

3шт.

12

36628

LOCK WASHER

- lock

3шт.

13

36630

DRAWBAR SUPPORT

- stop

3шт.

14

36632

SPRING

- centering

3шт.

15

36650

WASHER

- stop

3шт.

16

36642

SEAL

- spool

6шт.

17

D39716

PLUG

CAP - relief valve

1шт.

18

D39708

"O"RING - cap seal

1шт.

19

D51540

VALVE SPRING

SPRING - relief valve

1шт.

20

D39712

SHIM

- relief valve spring (.0097")

1шт.

20

A55894

SHIM,.0209" Thk

Relief valve spring .0209" Thk

1шт.

20

A55893

SHIM,.0418" Thk

Relief valve spring .0418" Thk

1шт.

21

D39713

VALVE POPPET

POPPET - relief valve

1шт.

22

D39714

RING

SEAL - relief valve poppet

1шт.

23

D51541

BODY

- relief valve

1шт.

24

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O" ring, large (replaces D89717)

1шт.

25

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

SEAL - "O" ring, small

1шт.

26

D28576

VALVE POPPET

POPPET - check

1шт.
