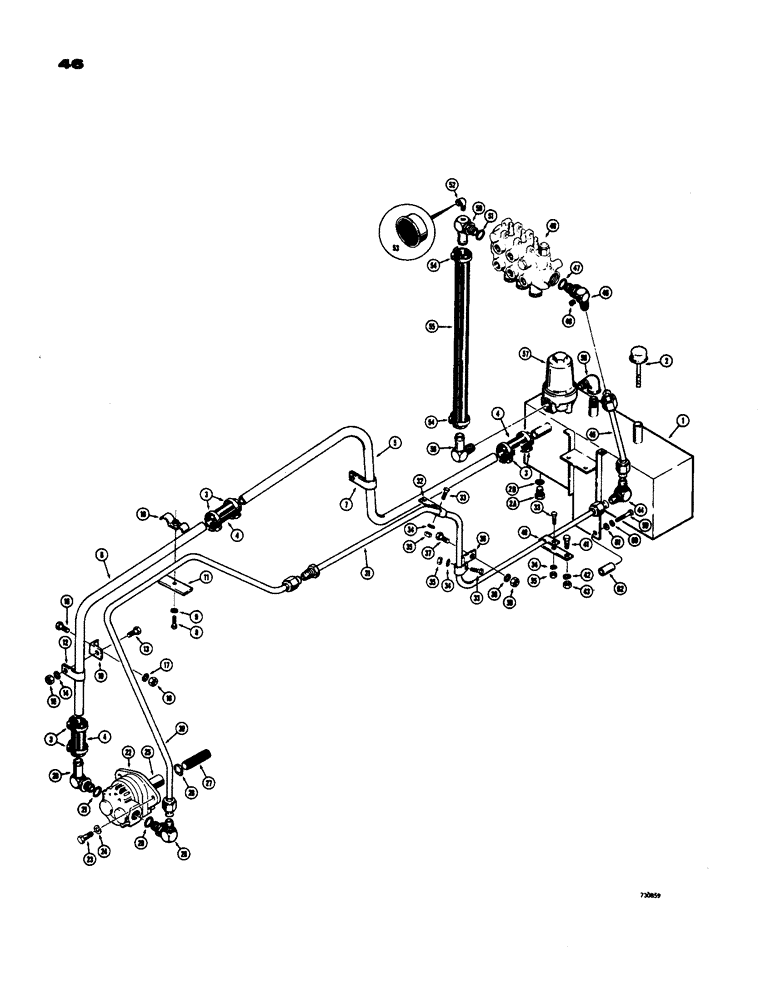

Запчасти Case 584 (46) - FORK LIFT PRIMARY HYDRAULICS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D55266
SPARE PART RESERVOIR - hydraulic oil, Includes: Ref. 2, 2A and 2B
1шт.
2
D55267
DIPSTICK
Oil level
1шт.
2a
86512512
PLUG,7/8" - 14 ORB
Hydraulic tank, Incl. Ref. 2B
1шт.
2b
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
3
214-257
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
6шт.
4
D55274
HOSE ASSY.
Low pressure
3шт.
5
D55272
SPARE PART Pump suction line, at tank (Shuttle models only)
1шт.
6
D55268
SPARE PART Pump suction line, at pump
1шт.
7
D55279
SPARE PART Tube (Shuttle models only)
1шт.
8
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
9
92-6
LOCK WASHER,3/8"
1шт.
10
D55385
SPARE PART Tube
1шт.
11
D55386
SPARE PART BRACKET - tube clamp
1шт.
12
D55387
SPARE PART Tube
1шт.
13
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
1шт.
15
25-1010
NUT,5/8"-11, G5
1шт.
16
13-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
1шт.
17
92-12
LOCK WASHER,3/4"
1шт.
18
25-1012
NUT,3/4"-10, G5
1шт.
19
D55388
SPARE PART ANGLE - clamp mounting
1шт.
20
217-355
FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB
Includes Ref. 21
1шт.
21
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
SEAL
1шт.
22
D41390
PUMP
Hydraulic, 21 G.P.M. at 2100 R.P.M. at 2000 P.S.L., Parts list Figure 50
1шт.
22
DR41390
REMAN-HYD PUMP
Remanufactured, Hydraulic Pump
1шт.
22
DC41390
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
22
87644746R
REMAN-HYD PUMP
584, 585, 586, CASE CONSTRUCTION KING FORKLIFT TRACTORS
1шт.
22
87644746C
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
23
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
24
92-8
LOCK WASHER,1/2"
2шт.
25
D31108
SPLINED COUPLING
Female, pump to shaft, Includes: Ref. 26
1шт.
26
G46150
SNAP RING,0.75", Int, #75
Coupling
1шт.
27
D30569
SHAFT
Pump drive
1шт.
28
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Includes: Ref. 29
1шт.
29
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
30
D55269
PIPE
TUBE - pump to valve, at pump
1шт.
31
D55270
TUBE
Pump to valve, intermediate
1шт.
32
D55282
SPARE PART Tube, to seat bracket bolt
1шт.
33
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
(Tube mounting at clamp)
3шт.
34
92-5
LOCK WASHER,5/16"
3шт.
35
9635082
NUT,5/16" - 18, Gr 5
3шт.
36
D55281
SPARE PART Tube, to cowl frame rail
1шт.
37
13-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
(Lower bracket hole)
1шт.
39
25-1010
NUT,5/8"-11, G5
1шт.
40
D55280
SPARE PART Tube, to front frame support
1шт.
41
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
(Lower bracket hole)
1шт.
42
92-8
LOCK WASHER,1/2"
1шт.
43
25-108
NUT,1/2"-13, G5
Hex
1шт.
44
218-476
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC
Male
1шт.
45
D55271
SPARE PART Pump to valve, at valve
1шт.
46
A43833
SPARE PART Adjustable, Includes: Ref. 47 and 48
1шт.
47
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Seal
1шт.
48
221-849
PLUG,Hex Soc, 1/8"-27
Pipe (1/8" NPT)
1шт.
49
REF
INSTRUCTION
VALVE - hydraulic control, Parts list Figure 90
1шт.
50
D39473
SPARE PART 90 degrees, Includes: Ref. 51
1шт.
51
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Seal
1шт.
52
221-411
ELBOW,90 Degree, 1/8"-27, NPT
Street
1шт.
53
D29650
ELECTRICAL GAUGE
Filter pressure
1шт.
54
214-257
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
2шт.
55
D42285
HOSE
Low pressure, return, Serial Range: line-tank
1шт.
56
D24162
SPARE PART Hose to pipe thread, 90 degrees
1шт.
57
REF
INSTRUCTION
FILTER - hydraulic, oil, Parts list Figure 48
1шт.
58
221-416
ELBOW,90 Degree, 1"-11 1/2, NPT
Street
1шт.
59
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
2шт.
61
195-41
WASHER,5/8"
2шт.
62
D55895
SPARE PART Reservoir mounting (2-1/4" long)
2шт.
