Запчасти Case 584 (63A) - COLD STARTING AID (10) - ENGINE

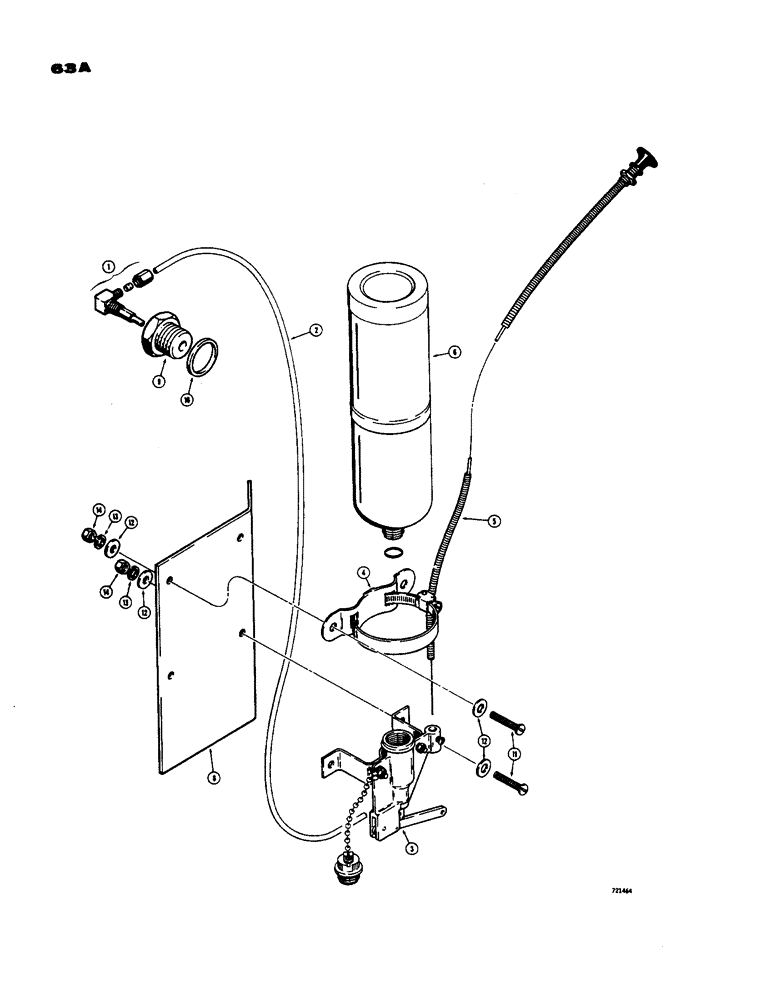

Схема запчастей Case 584 - (63A) - COLD STARTING AID (10) - ENGINE
12
12
8
12
14
9
13
1
4
6
14
5
10
3
2
11
13

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

KIT - cold starting aid (Mach. Item), Includes: Ref. 1 - 7

1шт.

1

D55946

JET

ASSY. - starting aid (includes one 1/8" compression fitting)

1шт.

2

D55947

TUBE

- actuator valve to jet (60" long) Includes two 1/8" compression fitting

1шт.

3

D55948

VALVE

ASSY. - actuator (Includes plug & chain 90 degrees elbow for 1/8" tube)

1шт.

4

D55949

BRACKET

CLAMP -, Serial Range: cylinder-bracket

1шт.

5

D55950

CABLE

ASSY. - control

1шт.

6

D55767

CYLINDER

- cold starting fuel

1шт.

7

D55951

REPAIR KIT

KIT - overhaul (Includes two "O"rings, one 1/8" compression fitting & one 3/32" drive pin) Not illustrated

1шт.

8

D58126

BRACKET

- mounting, starting aid

1шт.

9

D54833

PLUG

- manifold

1шт.

10

A20916

MANIFOLD GASKET

WASHER - manifold plug

1шт.

11

75-416

SCREW,Rd, 1/4" - 20 x 1"

- machine, 1/4" - NC x 1" round head)

4шт.

12

95-4

WASHER,1/4"

- plain () 1/4"

8шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

25-104

NUT,1/4"-20, G5

4шт.

Выбрано товаров: 15
