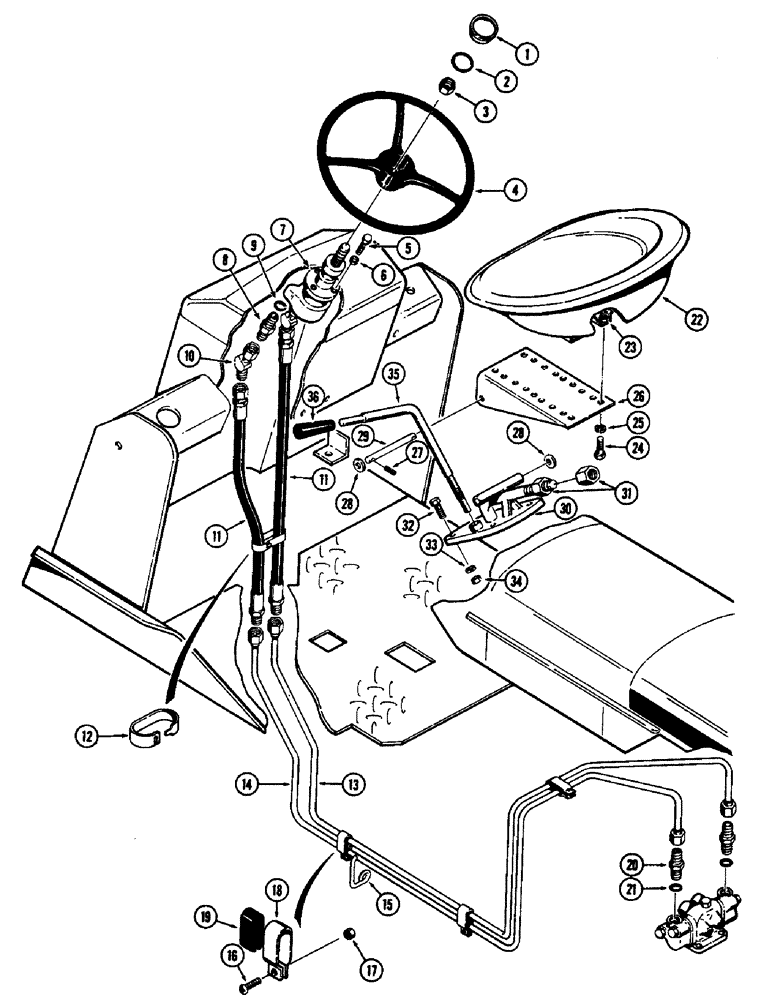

Запчасти Case 580 (56) - SEAT, STEERING WHEEL AND HYDRAULICS WITH MECHANICAL SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

2

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - special, steering wheel

1шт.

4

A35602

STEERING WHEEL

WHEEL - steering

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

A35579

PUMP

- manual power (See 590 Construction King Wheel Tractor Parts Catalog for repair list)

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - pump, 1/2" tube x 3/4" N.C. str., Incl. Ref 9

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - conn. seal, 1/2" tube

1шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree swivel, 1/2" tube x 3/4" N.C.

2шт.

11

A36162

TUBE

HOSE - hydraulic, pump to tube (29")

2шт.

12

A35209

CLAMP

- hose

1шт.

13

A36539

TUBE - R.H., hose to steering valve

1шт.

14

A36538

TUBE - L.H., hose to steering valve

1шт.

15

G15434

SUPPORT - tube

1шт.

16

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- machine, #10-32 x 3/4" Philips hd.

3шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- lock, #10-32 hex.

3шт.

18

G46194

CLAMP

- tube

3шт.

19

G46835

GROMMET

- tube clamp

3шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve, 1/2" tube x 3/4" N.C. str., Incl. Ref 21

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - conn. seal, 1/2" tube

1шт.

22

D24180

SEAT

- operators, Includes: Ref. 23

1шт.

23

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

24

14-712

BOLT (MACHINE),Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

BOLT - 7/16 x 3/4" N.F. hex.

4шт.

25

92-7

LOCK WASHER,7/16"

4шт.

26

D33733

PLATE - seat base

1шт.

27

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

28

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

29

D33734

PIN - seat pivot

1шт.

D41199

SUPPORT - seat, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

FRAME - seat support

1шт.

31

25-1116

NUT,1"-14, G5

- hex., 1"

2шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

35

A38172

LEVER

LEVER - hand throttle

1шт.

36

A37247

KNOB

HANDLE - lever

1шт.
