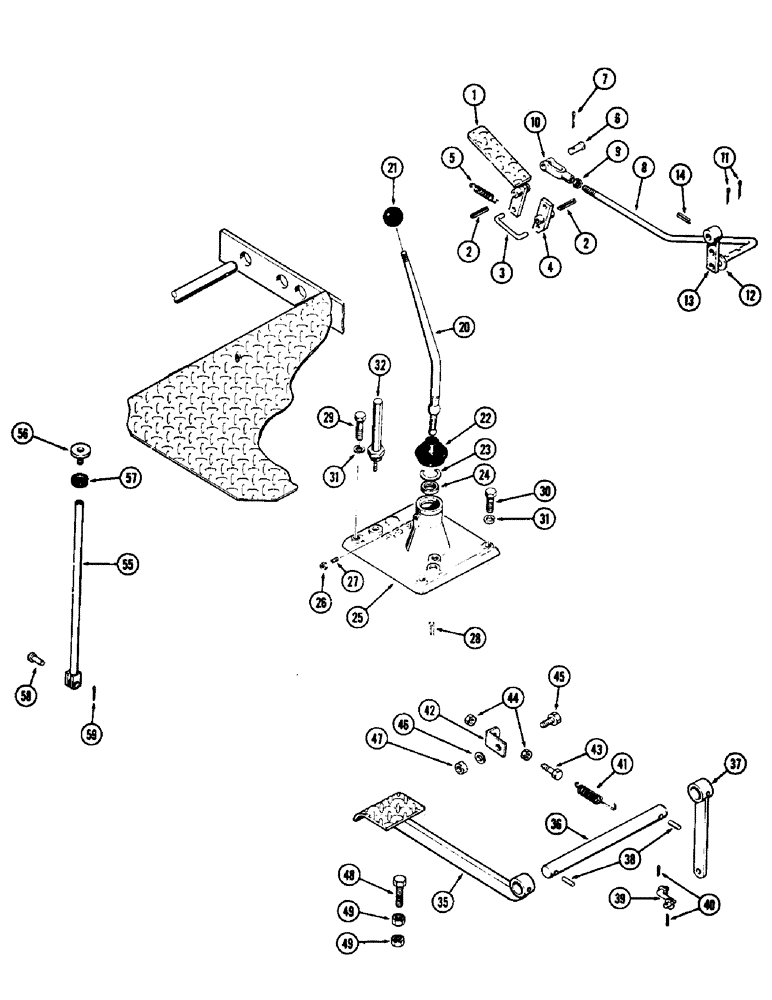

Запчасти Case 580 (54) - FOOT THROTTLE, GEAR SHIFT AND CLUTCH WITH POWER SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D24208

PEDAL

- foot throttle

1шт.

2

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

3

D24214

LINK - connecting

1шт.

4

D24209

ARM - pivot

1шт.

5

D24216

SPRING

- foot throttle

1шт.

6

D24213

PIN - clevis, Includes: Ref. 7

1шт.

7

132-4

PIN - cotter, 1/16 x 7/16"

1шт.

8

D41204

ROD

- connecting, Includes: Ref. 9 and 10

1шт.

9

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

10

D24212

X

YOKE - rod

1шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

13

D41200

LEVER

- foot throttle

1шт.

14

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

20

A36152

LEVER - gear shift

1шт.

21

A23885

KNOB

- gear shift

1шт.

22

A57876

COVER

- dust

1шт.

23

A26836

RING, SNAP

RING - snap, lever seat

1шт.

24

A7923

SEAT

RING - seat, shift lever

1шт.

25

A36155

COVER

- transmission

1шт.

26

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

1шт.

27

G15468

SET SCREW,5/16" - 18 x 3/4"

- retaining, shift lever

1шт.

28

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, 1/2" x 1", Slotted

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

D33178

DIPSTICK - transmission

1шт.

35

A38567

PEDAL - clutch

1шт.

36

A38573

SHAFT - clutch cross

1шт.

37

A38571

LEVER

- clutch spool

1шт.

38

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

39

A38574

LINK - clutch spool

1шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

41

A38576

SPRING - clutch return, 17 coils, 1-3/4" free length

1шт.

42

A38577

BRACKET - clutch return

1шт.

43

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

44

25-144

JAM NUT,Jam, 1/4"-20, G5

- 1/4" N.C. hex., jam

2шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

46

92-8

LOCK WASHER,1/2"

1шт.

47

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

48

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

1шт.

49

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

2шт.

55

A38597

ROD - differential lock, differential lock controls

1шт.

56

A37501

PEDAL

- differential lock , differential lock controls

1шт.

57

A38599

GROMMET,11/16" ID x 1" Groove Dia

- differential lock shaft, differential lock controls

1шт.

58

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Differential lock controls 5/16" x .940"

1шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", differential lock control

1шт.
