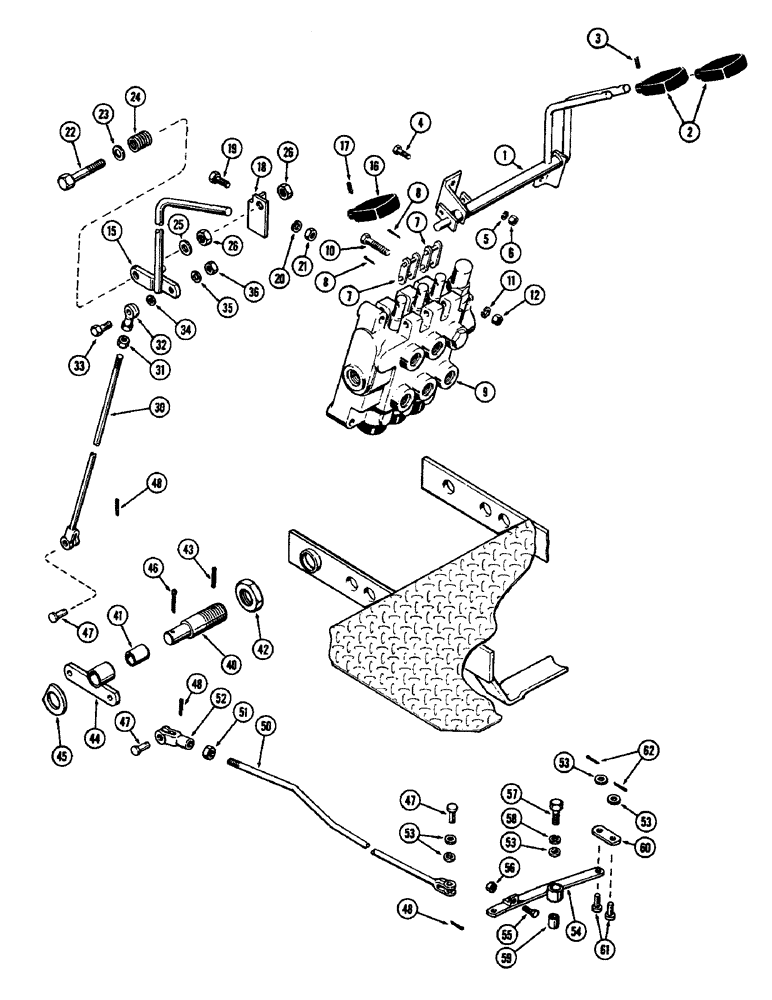

Запчасти Case 580 (52) - CONTROL LEVERS AND SHUTTLE LINKAGE WITH POWER SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
D24183
LEVER SET - raise & tilt control
1шт.
2
D24184
KNOB - lever
2шт.
3
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
2шт.
4
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
5
92-6
LOCK WASHER,3/8"
4шт.
6
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
7
D24140
LINK
- connecting, Includes: Ref. 8
2шт.
8
132-6
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter) 1/16" x 5/8"
2шт.
9
NSS
NOT SOLD SEPARAT
VALVE - hydraulic control (Order from Figure 94)
1шт.
10
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
3шт.
11
92-6
LOCK WASHER,3/8"
3шт.
12
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
3шт.
15
A38579
LEVER - shuttle control
1шт.
16
D24184
KNOB - lever
1шт.
17
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
18
A38604
BRACKET - control mounting
1шт.
19
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
20
92-6
LOCK WASHER,3/8"
2шт.
21
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
22
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- 1/2 x 3" N.C. hex.
1шт.
23
G49404
WASHER
- 17/32 x 15/16 x 1/16"
1шт.
24
A31203
SPRING - tension, 1-1/2" free length
1шт.
25
95-8
WASHER,1/2"
(9/16 x 1-3/8 x 7/64") 1/2"
1шт.
26
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam (1/2"-13 NC)
2шт.
30
A38578
ROD
- shuttle, upper
1шт.
31
25-156
JAM NUT,Jam, 3/8"-24, G5
- 3/8" N.F. hex., jam
1шт.
32
A32398
BALL JOINT
BEARING - sperical rod end
1шт.
33
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
34
A32395
WASHER
SPACER - 25/64 x 9/16 x 16 ga.
1шт.
35
92-6
LOCK WASHER,3/8"
1шт.
36
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
40
A38587
SHAFT - bellcrank
1шт.
41
A38586
BEARING
- bellcrank
1шт.
42
A28246
NUT
- bellcrank, 1-1/4" N.F. hex., jam
1шт.
43
138-140
LOCK PIN,1/4" x 1 3/4", Slotted
PIN, 1/4" x 1 3/4", Slotted
1шт.
44
A38583
BELLCRANK - power shuttle
1шт.
45
A38588
SPACER - bellcrank, 1-9/32 x 2-1/4 x 1/4"
1шт.
46
132-95
COTTER PIN,3/16" x 1 1/2"
Pin, Split (Cotter), 3/16" x 1 1/2"
2шт.
47
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
1шт.
48
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
50
A38590
ROD ASSY. - shuttle, lower
1шт.
51
25-156
JAM NUT,Jam, 3/8"-24, G5
- 3/8" N.F. hex., jam
1шт.
52
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - end
1шт.
53
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64"
5шт.
54
A38591
ARM ASSY. - shuttle povot
1шт.
55
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
1шт.
56
25-144
JAM NUT,Jam, 1/4"-20, G5
- 1/4" N.C. hex., jam
1шт.
57
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
58
92-6
LOCK WASHER,3/8"
1шт.
59
A38594
PIVOT
- shuttle arm
1шт.
60
A38595
LINK - shuttle pivot
1шт.
61
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
2шт.
62
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
Выбрано товаров: 53
