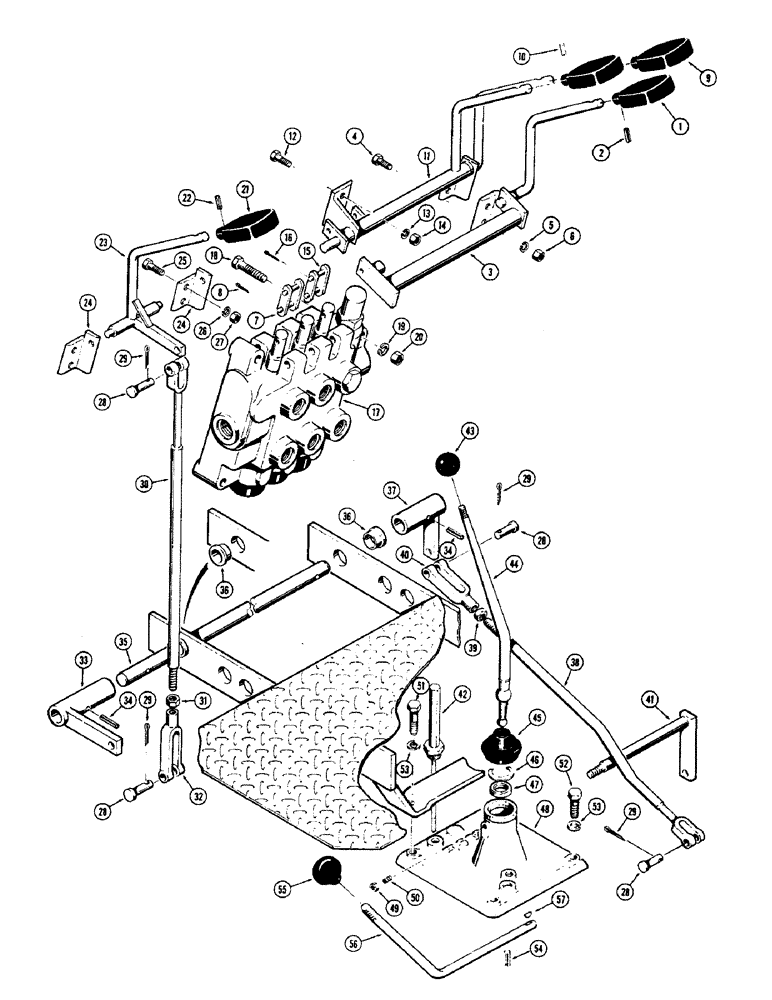

Запчасти Case 580 (50) - CONTROL LEVERS, SHUTTLE AND GEAR SHIFT WITH MECHANICAL SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

D24288

LEVER

ASSY. - accessory control, Includes: Ref. 1 - 8

1шт.

1

D24184

KNOB - lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

7

D24140

LINK

- connecting, valve spool, Includes: Ref. 8

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

9

D24184

KNOB - lever

2шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

11

D24183

LEVER ASSY. - raise and tilt control

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

D24140

LINK

- connecting, valve spool, Includes: Ref. 16

2шт.

16

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

17

NSS

NOT SOLD SEPARAT

VALVE - control, hydraulic (Order from Figure 94)

1шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

21

D24184

KNOB - lever

1шт.

22

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

23

D33732

LEVER

- shuttle control

1шт.

24

D33731

BRACKET - control mounting

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

28

D24291

AXLE PIN

PIN - yoke, Includes: Ref. 29

4шт.

29

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

30

D33179

ROD - shuttle control, hand lever, Includes: Ref. 31 and 32

1шт.

31

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

32

D24221

X

YOKE - adjusting

1шт.

33

D33727

LEVER - lower L.H., shuttle control

1шт.

34

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

35

D33728

SHAFT - lower lever, shuttle control

1шт.

36

D24206

BUSHING

- flanged, cross shaft

2шт.

37

D33729

LEVER - lower R.H., shuttle control

1шт.

38

D33164

ROD - lower lever to shuttle cover, Includes: Ref. 39 and 40

1шт.

39

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

40

D24221

X

YOKE - adjusting

1шт.

41

A36163

LEVER - shuttle control cover

1шт.

42

D33178

DIPSTICK - transmission oil lever

1шт.

43

A23885

KNOB

- gear shift

1шт.

44

A36152

LEVER - gear shift

1шт.

45

A57876

COVER

- dust

1шт.

46

A26836

RING, SNAP

RING - snap, shift lever seat

1шт.

47

A7923

SEAT

RING - seat, shift lever

1шт.

48

A36155

COVER

- gear shift control

1шт.

49

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

1шт.

50

G15468

SET SCREW,5/16" - 18 x 3/4"

- retaining, shift lever

1шт.

51

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

52

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

53

92-6

LOCK WASHER,3/8"

4шт.

54

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, 1/2" x 1", Slotted

1шт.

55

A38920

BALL

KNOB - lever, dual range control lever

1шт.

56

G15656

LEVER

- dual range control

1шт.

57

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Dual range lever #6, 5/32" x 5/8"

1шт.
