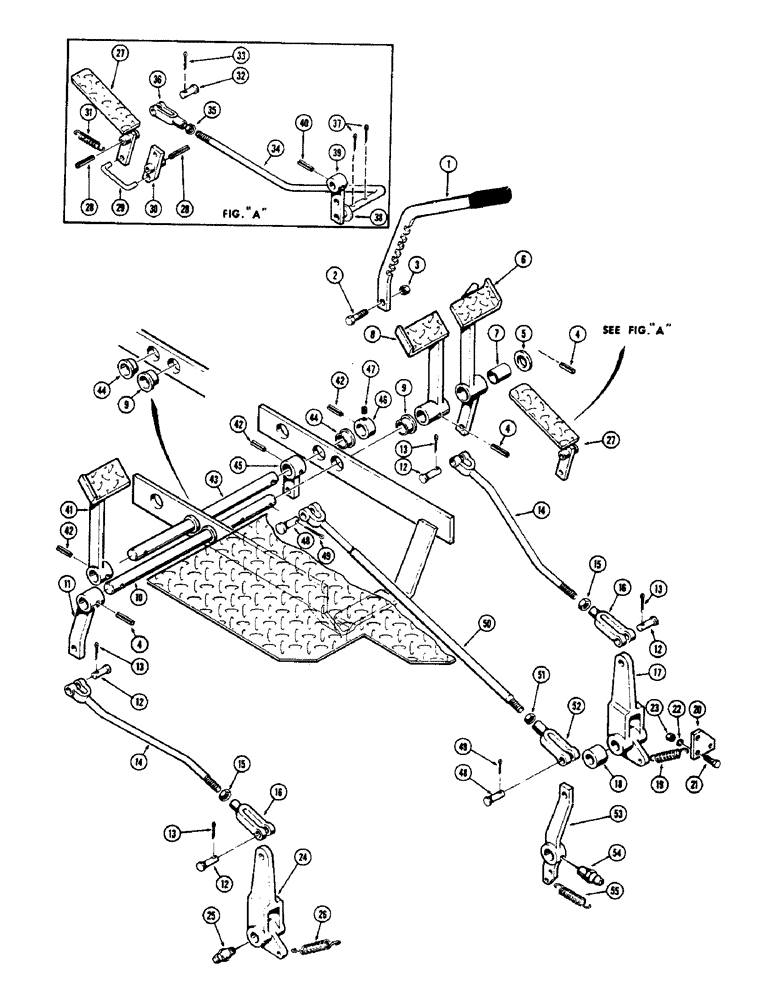

Запчасти Case 580 (46) - FOOT THROTTLE, BRAKE AND CLUTCH PEDALS, WITH MECHANICAL SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D41206

LEVER - brake lock

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

4

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

3шт.

5

D33753

WASHER

SPACER - brake pedal

1шт.

6

D41207

PEDAL - brake, R.H., Includes: Ref. 7

1шт.

7

D26052

BUSHING - pedal

1шт.

8

D24204

PEDAL - brake, L.H.

1шт.

9

D24206

BUSHING

- flanged, brake pedal

1шт.

10

D24201

SHAFT - pivot, brake pedal

1шт.

11

D41208

LEVER - L.H. brake, Serial Range: shaft-rod

1шт.

12

D24291

AXLE PIN

PIN - yoke, brake rod

4шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

14

D41198

ROD - brake pedal to lever, Includes: Ref. 15 and 16

2шт.

15

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

16

D24221

X

YOKE - adjusting

1шт.

17

D25794

LEVER - R.H. brake, Serial Range: rod-housing

1шт.

18

D24223

SPACER - lever

1шт.

19

G10848

SPRING

- brake return

1шт.

20

D41201

BRACKET - return spring

1шт.

21

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

24

D25795

LEVER - L.H. brake rod to housing, Includes: Ref. 25

1шт.

25

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

1шт.

26

G10848

SPRING

- lever return

1шт.

27

D24208

PEDAL

- foot throttle

1шт.

28

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

29

D24214

LINK - pedal to pivot arm

1шт.

30

D24209

ARM - pivot, throttle rod

1шт.

31

D24216

SPRING

- throttle pedal

1шт.

32

D24213

PIN - yoke, Includes: Ref. 33

1шт.

33

132-4

PIN - cotter, 1/16 x 7/16"

1шт.

34

D41204

ROD

- connecting, foot throttle, Includes: Ref. 35 and 36

1шт.

35

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

36

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - adjusting

1шт.

37

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

38

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

1шт.

39

D41200

LEVER

- foot throttle

1шт.

40

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

41

D24198

PEDAL - clutch

1шт.

42

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

3шт.

43

D24200

SHAFT - cross, clutch pedal

1шт.

44

D24206

BUSHING

- flanged, clutch lever

1шт.

45

D24202

LEVER - clutch shaft

1шт.

46

D24203

COLLAR - shaft retaining, Includes: Ref. 47

1шт.

47

178-811

SCREW - set, 5/16 x 5/16" N.C. slotted lock type

1шт.

48

D24291

AXLE PIN

PIN - yoke, Includes: Ref. 49

2шт.

49

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

50

D41203

ROD - clutch, Includes: Ref. 51 and 52

1шт.

51

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

52

D24221

X

YOKE - adjusting

1шт.

53

D41202

LEVER - clutch rod to housing, Includes: Ref. 54

1шт.

54

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" str. drive

1шт.

55

A35789

SPRING

- return, clutch pedal

1шт.
