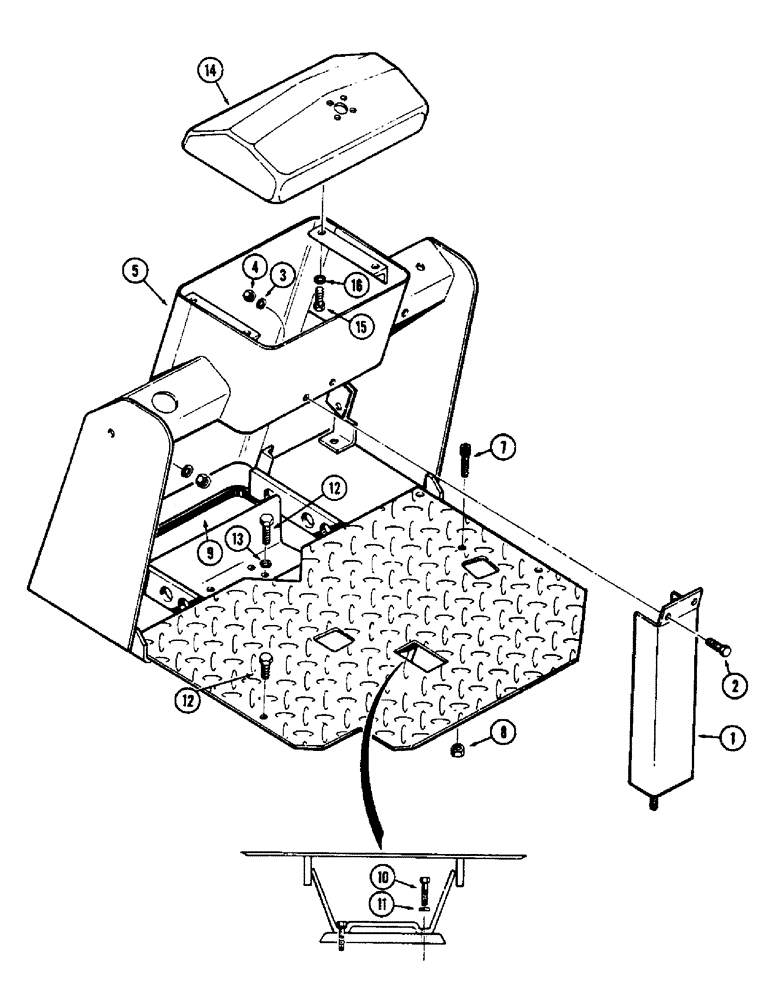

Запчасти Case 580 (42) - CONTROL TOWER WITH MECHANICAL SHUTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D33175

GUARD - steering

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

D41205

TOWER ASSY. - control, Includes: Ref. 7 and 8

1шт.

7

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - 3/8 x 1-1/2" N.C. socket hd.

1шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

9

D33855

TRIM - rubber, tower edge

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

D33726

COVER - control tower

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.
