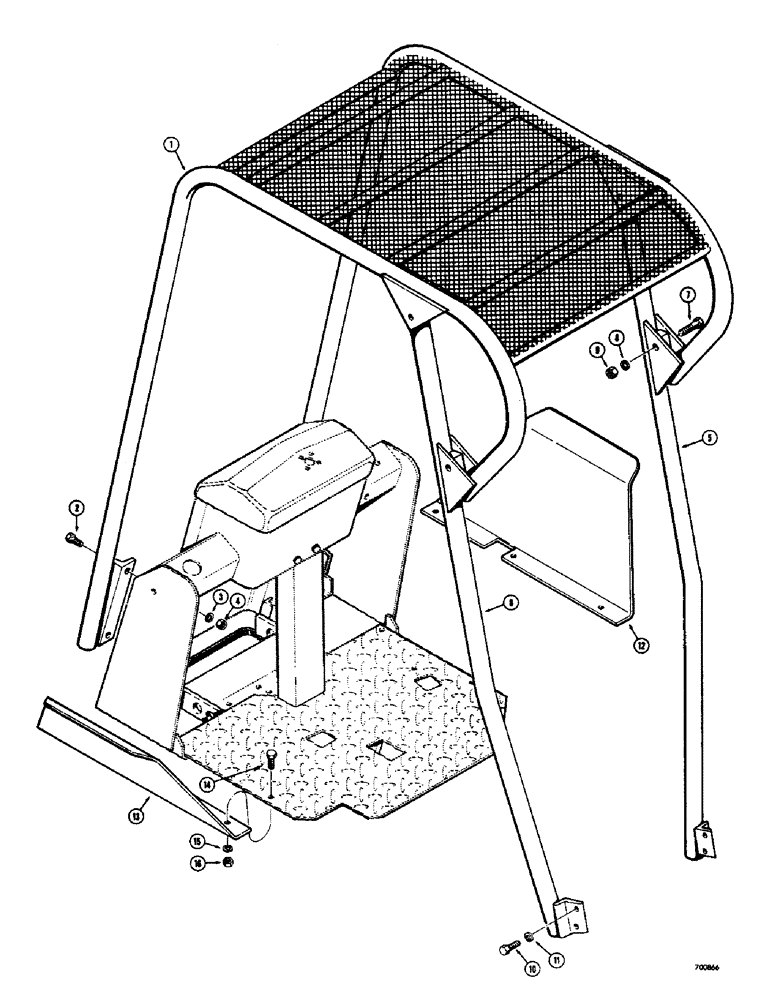

Запчасти Case 580 (40) - FENDERS AND OVERHEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D24152

GUARD - overhead

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

D33172

SUPPORT - overhead guard, R.H.

1шт.

6

D33171

SUPPORT - overhead guard, L.H.

1шт.

7

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

D32713

FENDER - R.H.

1шт.

13

D32712

FENDER - L.H.

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.
