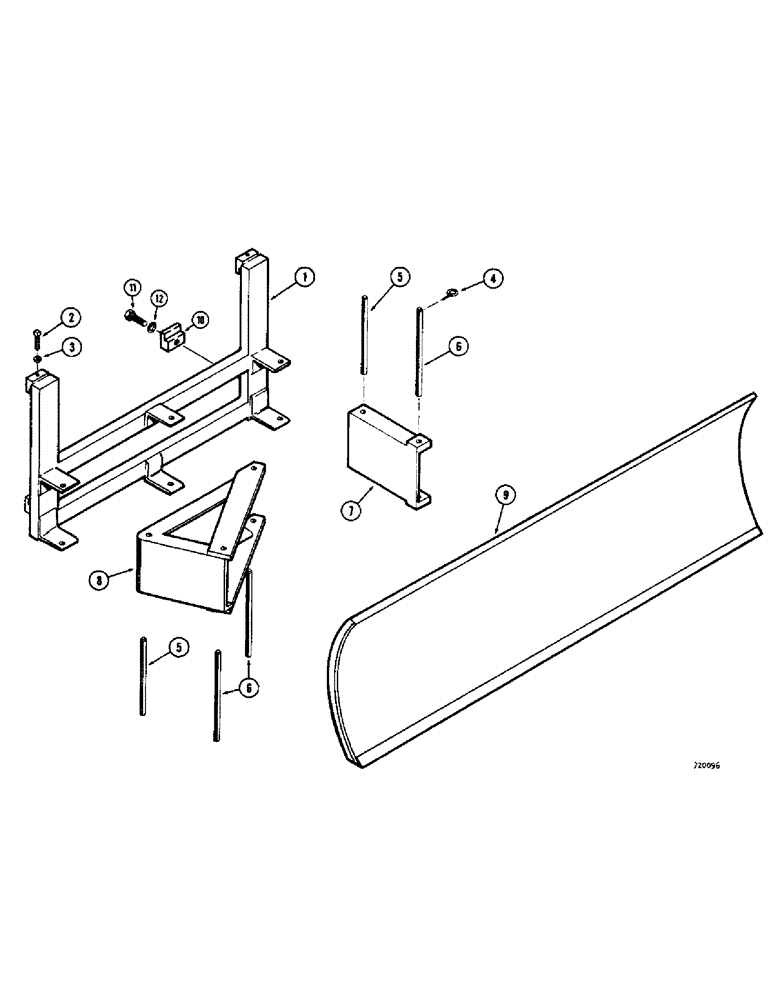

Запчасти Case 580 (36) - ANGLING DOZER BLADE (86) - DOZER

1

D28180

FRAME - blade support (Use with 4000 lb. lift capacity mast only)

1шт.

D41294

FRAME - blade support (Use with 5000 lb. lift capacity mast only)

1шт.

2

181-715

SCREW - set, square head (5/8" - 11 NC x 3-1/2")

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

2шт.

4

D27949

KLIK PIN - pin retaining

10шт.

5

D27862

PIN - mounting, 1" dia. x 14"

2шт.

6

D27863

PIN - mounting, 1" dia. x 15-5/8"

3шт.

7

D27864

BRACKET - blade support

1шт.

8

D27866

BRACKET - blade pivot

1шт.

9

D27861

BLADE - dozer

1шт.

10

D52486

BLOCK

- lower hanger (4000 lb. lift capacity mast)

2шт.

10

D52487

BLOCK - lower hanger (5000 lb. lift capacity mast)

2шт.

11

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
