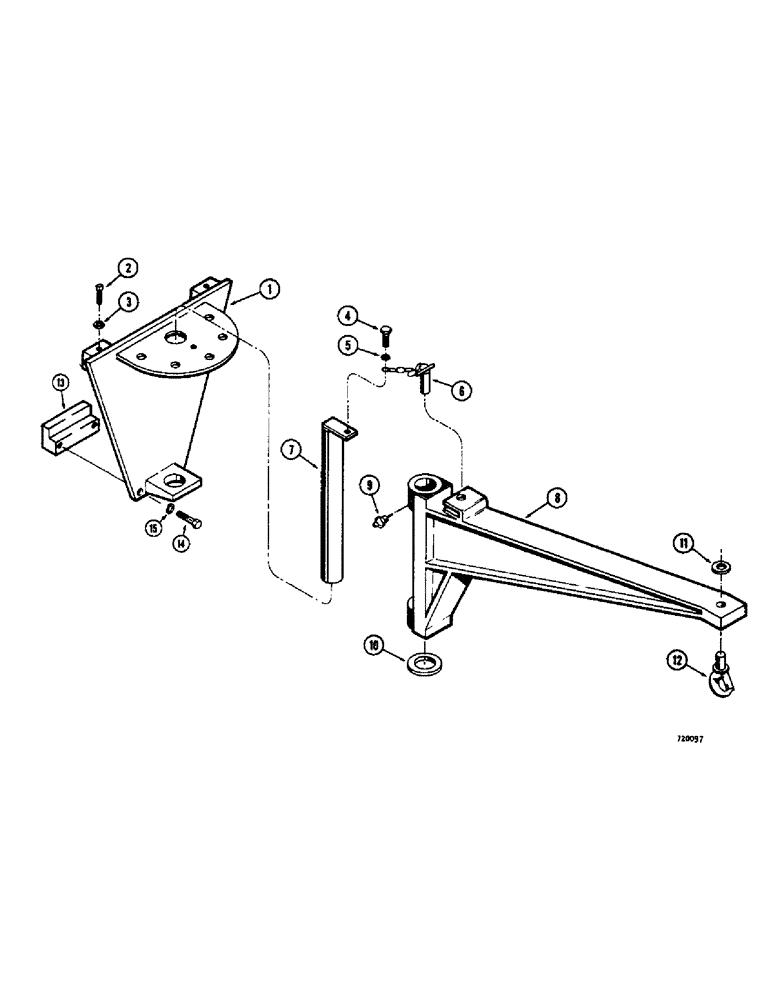

Запчасти Case 580 (38) - CRANE BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

D27050

HANGER - boom arm (Use with 4000 lb. lift capacity mast only)

1шт.

D41295

HANGER - boom arm (Use with 5000 lb. lift capacity mast only)

1шт.

2

181-713

SCREW - set, square head (5/8" - 11 NC x 3")

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

2шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

D27053

PIN - locking (Chain included)

1шт.

7

D27052

PIN - pivot

1шт.

8

D27054

ARM - boom

1шт.

9

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - straight, grease (3/16" drive)

2шт.

10

D27051

PANEL

WASHER - pivot, special

1шт.

11

60916

WASHER

- hook retaining, special

1шт.

12

D27055

HOOK - boom

1шт.

13

D52488

BLOCK - lower hanger (4000 lb. lift capacity mast)

1шт.

13

D52485

BLOCK - lower hanger (5000 lb. lift capacity mast)

1шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
