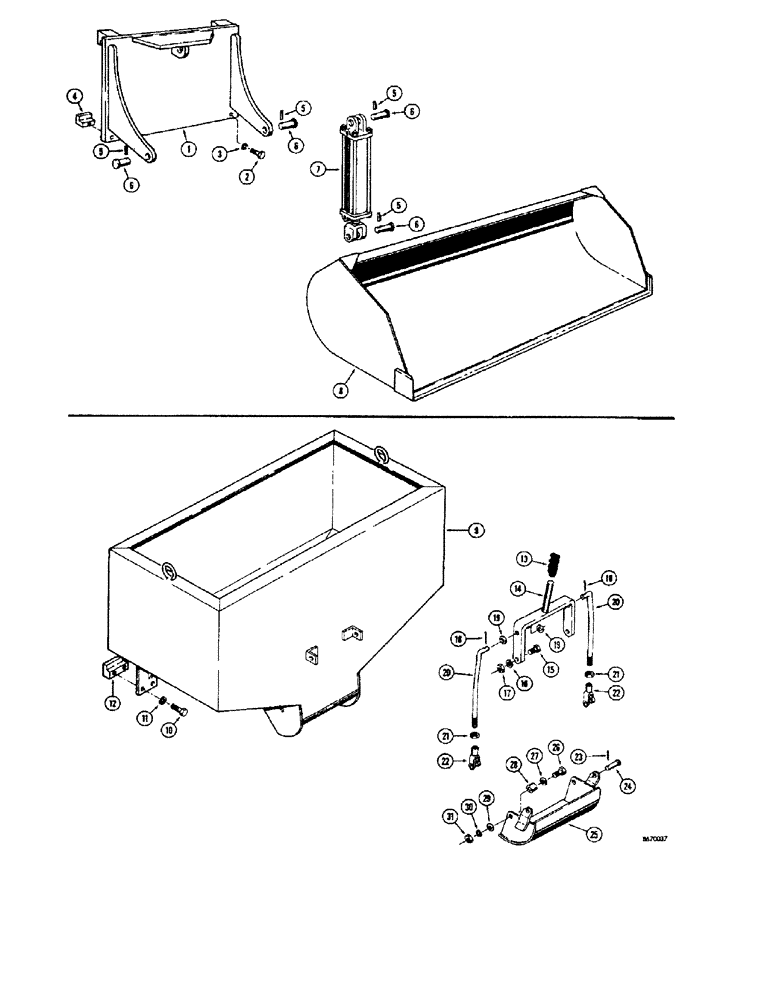

Запчасти Case 580 (34) - LOADER AND CEMENT BUCKET, LOADER BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

D28180

FRAME - bucket support (Use with 4000 lb. lift capacity mast only)

1шт.

D41293

FRAME - bucket support (Use with 5000 lb. lift capactiy mast only)

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

D24261

BLOCK - clamp (Use with D28180 frame)

2шт.

D41292

BLOCK - clamp (Use with D41293 frame)

2шт.

5

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

4шт.

6

D36819

PIN,30.23mm OD x 111.25mm L

PIN - cylinder and bucket mounting

4шт.

7

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (3" I.D. x 6" stroke) Parts list Figure 84

1шт.

8

D28179

BUCKET - loader (1/2 cu. yard)

1шт.

9

D10545

BUCKET - cement, 1/2 cu. yard (Machinery item) Optional for 4000 lb. lift capacity masts only, Includes: Ref. 10 - 31

1шт.

10

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4"

4шт.

11

92-12

LOCK WASHER,3/4"

4шт.

12

61035

SPARE PART BLOCK - clamp

2шт.

13

31400

CLAMP

GRIP - handle, rubber

1шт.

14

65294

MOUNTING PLATE

HANDLE - discharge spout

1шт.

15

31383

BOLT - pivot, handle

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

2шт.

18

132-48

COTTER PIN,1/8" x 1"

2шт.

19

195-33

WASHER,1/2"

WASHER - plain (3/8")

4шт.

20

65295

ROD - spout control

2шт.

21

25-118

NUT,1/2"-20, G5

NUT - hex. (1/2" - 20 NF)

2шт.

22

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - control rod

2шт.

23

132-48

COTTER PIN,1/8" x 1"

2шт.

24

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2" dia. x 1-23/64"

2шт.

25

65293

SPOUT - discharge

1шт.

26

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2"

2шт.

27

195-53

WASHER,1" x 2" x .134"

WASHER - plain (1/2")

2шт.

28

61005

BUSHING - spout (9/16" long)

BUSHING

2шт.

29

95-12

WASHER,3/4"

WASHER - standard wrot () 3/4"

2шт.

30

92-12

LOCK WASHER,3/4"

2шт.

31

25-1112

NUT,3/4"-16, G5

NUT - hex (3/4" - 16 NF)

2шт.
