Артикул
Название
Примечание
Количество
D40702

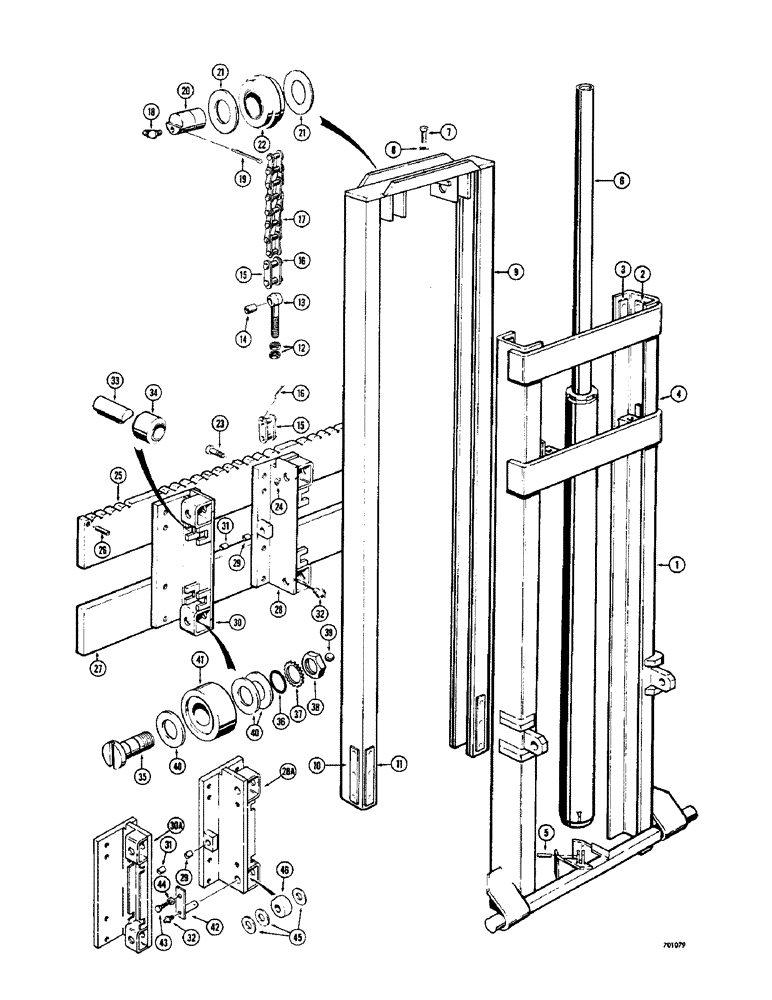

MAST - complete, 12' (5000 lb. lift capacity), Includes: Ref. 1 - 46
1шт.
1
D41195
CHANNEL - outer, Includes: Ref. 2 - 4
1шт.
2
D32555
PAD
PLATE - wear, brass (1/8" x 1-1/4" x 5")
2шт.
3
D27365
PAD
PLATE - wear, brass (3/16" x 1-1/4" x 10")
4шт.
4
D41505
WEAR PAD
PLATE - wear, brass (3/16" x 1/2" x 4-1/2")
2шт.
5
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
1шт.
6
D36571
CYLINDER - hydraulic, lift (3-1/2" I.D. x 72" stroke) Parts list Figure 80
1шт.
7
62-832
SCREW - hex. socket head (1/2" - 20 NF x 2")
2шт.
8
92-8
LOCK WASHER,1/2"
2шт.
9
D39480
CHANNEL
- inner, Includes: Ref. 10 and 11
1шт.
10
D27362
WEAR PAD
PLATE - wear, brass (1/8" x 1-1/4" x 10")
2шт.
11
D27365
PAD
PLATE - wear, brass (3/16" x 1-1/4" x 10")
4шт.
12
25-1116
NUT,1"-14, G5
- hex. (1" - 14 NF)
4шт.
13
D36575
EYEBOLT
BOLT - eye, chain anchor, Includes: Ref. 14
2шт.
14
D39476
BUSHING
- eye bolt
1шт.
15
D36579
LINK
- connecting, lift chain (See Figure 28, Ref. 41 and 42, for additional links used with sideshift), Includes: Ref. 16
4шт.
16
132-45
COTTER PIN,1/8" x 5/8"
Pin, Split (Cotter), 1/8" x 5/8"
2шт.
17
D39483
CHAIN (AG)
CHAIN - lift, rollerless
2шт.
18
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
FITTING - grease, 67-1/2 degrees (3/16" drive)
2шт.
19
132-102
COTTER PIN,3/16" x 2 1/2"
Pin, Split (Cotter), 3/16" x 2 1/2"
2шт.
20
D36584
PIN
- guide wheel
2шт.
21
D36582
WASHER
- thrust
4шт.
22
D39482
SUPPORT,1.75" ID x 4.3" OD x 1.51"
WHEEL - chain guide
2шт.
23
61-828
HEX SOC SCREW,1/2"-13 x 1 3/4"
SCREW - hex. socket head (1/2" - 13 NC x 1-3/4")
16шт.
24
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam (1/2"-13 NC)
16шт.
25
D36580
LARGE PLATE
PLATE - backing, upper (See Figure 28, Ref. 34, for backing plate used with sideshift)
1шт.
26
138-190
LOCK PIN,7/16" x 2", Slotted
PIN, 7/16" x 2", Slotted
2шт.
27
D36581
LARGE PLATE
PLATE - backing, lower
1шт.
28
D36587
CARRIAGE - R.H., before mast S/N 11726, Includes: Ref. 29
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
28a
D52321
SUPPORT ASSY.
CARRIAGE - R.H., mast S/N 11726 and after, Includes: Ref. 29
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
The (8) 1/2-13 mounting holes must be drilled and tapped at assembly.
1шт.
29
D39476
BUSHING
- D36587 and D52321 carriages
1шт.
30
D36588
CARRIAGE - L.H., before mast S/N 11726, Includes: Ref. 31
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
30a
D52322
SUPPORT ASSY.
CARRIAGE - L.H., mast S/N 11726 and after, Includes: Ref. 31
1шт.
Carriages must be aligned and drilled at time of installation.
1шт.
The (8) 1/2-13 mounting holes must be drilled and tapped at assembly.
1шт.
31
D39476
BUSHING
- D36588 and D52322 carriages
1шт.
32
219-13
LUBE NIPPLE,3/16" NPTF
FITTING - straight, grease (3/16" drive)
4шт.
33
D36589
PIN,25.4mm OD x 69.85mm L
- side roller
4шт.
34
D36590
ROLLER
- side
4шт.
D36591
KIT
AXLE KIT - load roller, used with D36587 and D36588 carriages only, Includes: Ref. 35 - 39
4шт.
35
NSS
NOT SOLD SEPARAT
AXLE - load roller
1шт.
36
A7892
BEARING, CUP
SEAL - O-ring
1шт.
37
193-15
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
1шт.
38
D39470
NUT - hex., jam (Special)
1шт.
39
NSS
NOT SOLD SEPARAT
BALL - steel, 3/16" dia.
1шт.
40
D36592
WASHER
- thrust, used with D36587 and D36588 carriages only
12шт.
41
D36593
ROLLER
- load, used with D36587 and D36588 carriages only
4шт.
42
D52297
AXLE
- load roller, used with D52321 and D52322 carriages only
4шт.
43
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
44
92-8
LOCK WASHER,1/2"
4шт.
45
D52298
WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk
- thrust, used with D52321 and D52322 carriages only
12шт.
46
D52299
BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W
ROLLER - load, used with D52321 and D52322 carriages only
1шт.
Выбрано товаров: 56
