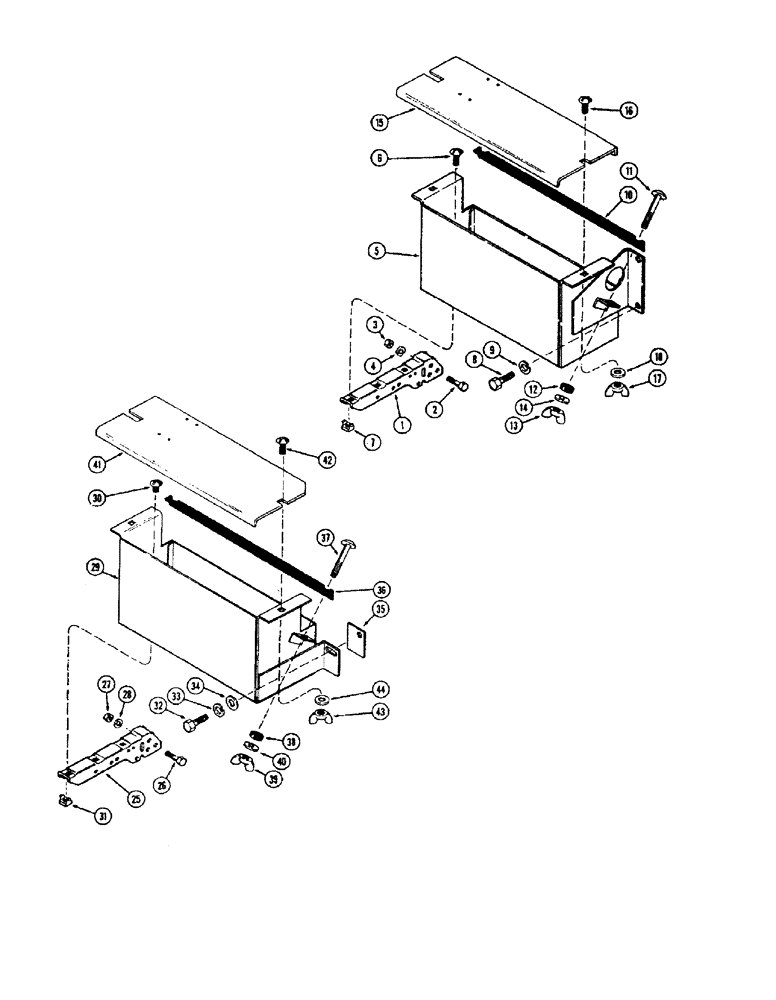

Запчасти Case 580 (68) - BATTERY BOX - WITH MECHANICAL SHUTTLE (55) - ELECTRICAL SYSTEMS

1

G10752

SUPPORT - battery case, battery box with mechanical shuttle

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A37904

CASE - battery

1шт.

6

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Philips hd.

2шт.

7

1502286C2

NUT,Floating Cage, 5/16"-18

- retaining, 5/6" N.C.

2шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

A37909

ANGLE - hold down, battery

1шт.

11

11-664

BOLT

- 3/8 x 4" N.C. rd. hd. sq. nk.

2шт.

12

G46867

GROMMET

- rubber

2шт.

13

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

14

G49400

WASHER

- plain (13/32 x 1-5/32 x 1/16")

2шт.

15

A37910

COVER - battery case

1шт.

16

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" N.C. rd. hd. sq. nk.

2шт.

17

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

18

G49400

WASHER

- plain (13/32 x 1-5/32 x 1/16")

2шт.

25

G10752

SUPPORT - battery case

1шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

AS38601

CASE - battery

1шт.

30

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Philips hd.

2шт.

31

1502286C2

NUT,Floating Cage, 5/16"-18

- retaining, 5/16" N.C.

2шт.

32

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

1шт.

35

A38603

SPACER - battery case mounting

1шт.

36

A37909

ANGLE - hold down, battery

1шт.

37

11-664

BOLT

- 3/8 x 4" N.C. rd. hd. sq. nk.

2шт.

38

G46867

GROMMET

- rubber

2шт.

39

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

40

G49400

WASHER

- plain (13/32 x 1-5/32 x 1/16")

2шт.

41

A38600

COVER - battery case

1шт.

42

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" N.C. rd. hd. sq. nk.

2шт.

43

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

44

G49400

WASHER

- plain (13/32 x 1-5/32 x 1/16")

2шт.
