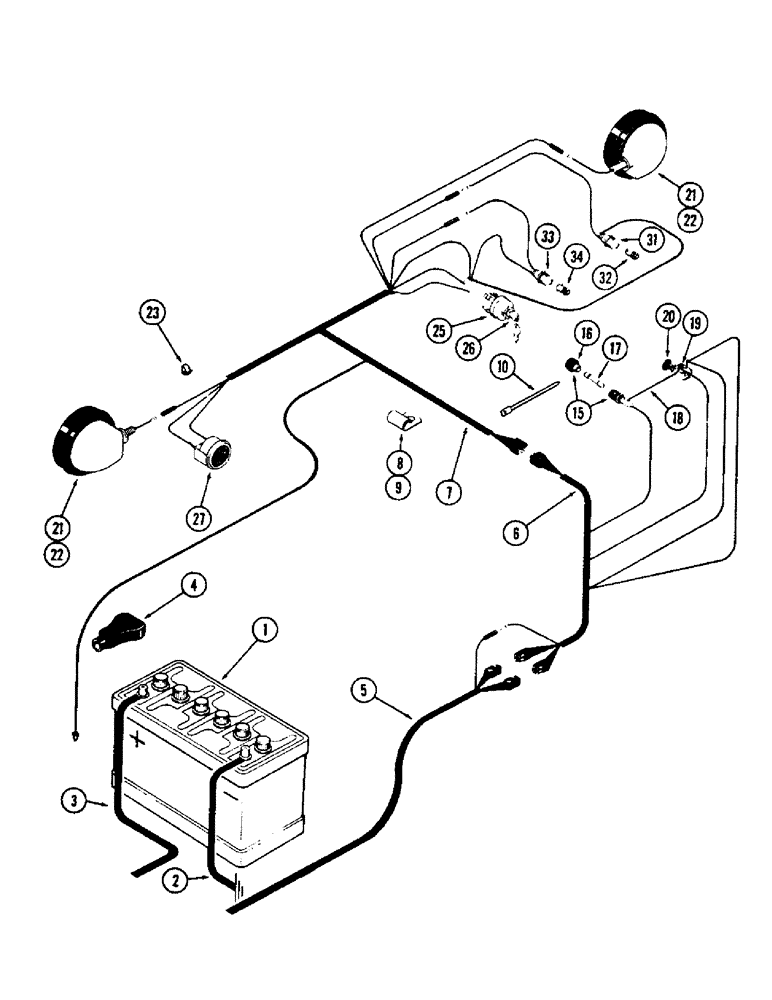

Запчасти Case 580 (64) - ELECTRICAL SYSTEM, 159 GAS WITH MECHANICAL SHUTTLE (55) - ELECTRICAL SYSTEMS

1

G44805

X

BATTERY - (12 volt)

1шт.

2

A38414

STRAP

STRAP - battery ground

1шт.

3

A23024

CABLE

CABLE - battery to starter solenoid

1шт.

4

A27072

COVER

BOOT - cable to positive terminal

1шт.

5

A37514

HARNESS

SPARE PART HARNESS ASSY. - main (Tractor)

1шт.

6

A38167

HARNESS

HARNESS ASSY. - lower, control tower

1шт.

7

A38166

HARNESS

HARNESS ASSY. - upper, control tower

1шт.

8

A37179

CLIP

CLIP - cable & harness

4шт.

9

A22883

CLIP

CLIP - harness to control cover

1шт.

10

A22926

CLAMP

STRAP - harness

1шт.

15

A22874

HOLDER

HOLDER ASSY. - fuse, Includes: Ref. 16

1шт.

16

A10958

CAP

CAP - fuse holder

1шт.

17

223-20

FUSE,20 Amp, Type SFE

FUSE - 20 amp.

1шт.

18

A22875

ELECTRICAL WIRE

WIRE WIRE - fuse to light switch (Red 4")

1шт.

19

G13142

IGNITION SWITCH

SWITCH ASSY. - light, Includes: Ref. 20

1шт.

20

G13141

KNOB

KNOB - light switch

1шт.

21

A33641

SPARE PART LAMP ASSY. - head, Includes: Ref. 22

2шт.

22

A24572

LAMP

LAMP - sealed unit

1шт.

23

G46047

SPARE PART CLIP - lamp wire

3шт.

25

A24511

SWITCH

SWITCH ASSY - starting, w/key (Gas) Includes: Ref 26

1шт.

26

A24509

KEY

KEY - ignition start, Set of 2

1шт.

27

A24080

GAUGE

GAUGE - engine temperature

1шт.

31

A24084

LAMP

LAMP - warning, engine oil pressure, Includes: Ref. 32

1шт.

32

A24354

BULB

BULB - (#57 red)

1шт.

33

A24085

LAMP

LAMP - warning, generator, Includes: Ref. 34

1шт.

34

A24354

BULB

BULB - (#57 red)

1шт.

34

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

34

104202A1C

CORE-STARTER

Return Part Number

1шт.
