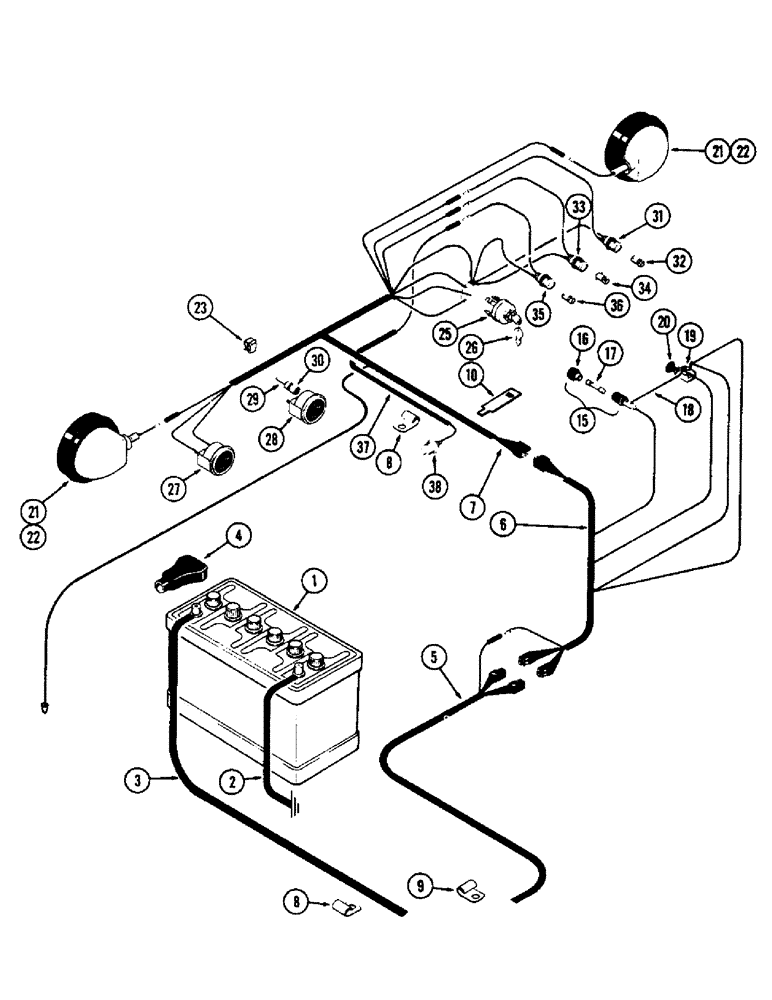

Запчасти Case 580 (62) - ELECTRICAL SYSTEM, 188 DIESEL WITH POWER SHUTTLE (55) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

BATTERY - (12 volt)

1шт.

2

A38414

STRAP

STRAP - battery ground

1шт.

3

A38415

CABLE

CABLE - battery to stater solenoid

1шт.

4

A27072

COVER

BOOT - cable to positive terminal

1шт.

5

A37514

HARNESS

SPARE PART HARNESS ASSY. - main (tractor) (w/generator) (Used prior to trac. SN 8656686)

1шт.

5

A38950

HARNESS

HARNESS ASSY. - main (tractor) (w/alternator) (1st used trac. SN 8656686)

1шт.

6

A38167

HARNESS

HARNESS ASSY. - lower, control tower

1шт.

7

A38166

HARNESS

HARNESS ASSY. - upper, control tower

1шт.

8

A37179

CLIP

CLIP - cable & harness

4шт.

9

A22883

CLIP

CLIP - harness to control cover

1шт.

10

A22926

CLAMP

STRAP - harness

1шт.

15

A22874

HOLDER

HOLDER ASSY. - fuse, Includes: Ref. 16

1шт.

16

A10958

CAP

CAP - fuse holder

1шт.

17

223-20

FUSE,20 Amp, Type SFE

FUSE - 20 amp.

1шт.

18

A22875

ELECTRICAL WIRE

WIRE WIRE - fuse to light switch (Red 4")

1шт.

19

G13142

IGNITION SWITCH

SWITCH ASSY. light, Includes: Ref. 20

1шт.

20

G13141

KNOB

KNOB - light switch

1шт.

21

A33641

SPARE PART LAMP ASSY. - head, Includes: Ref. 22

2шт.

22

A24572

LAMP

LAMP - sealed unit

1шт.

23

G46047

SPARE PART CLIP - lamp wire

3шт.

25

A24510

SWITCH

SWITCH ASSY - starting, w/keys (Diesel) Includes: Ref 26

1шт.

26

A24509

KEY

KEY - ignition start, Set of 2

1шт.

27

A24080

GAUGE

GAUGE - engine temperature

1шт.

28

A33982

ELECTRICAL GAUGE

GAUGE - clutch pressure

1шт.

29

A8216

TUBE

TUBE - oil, pressure gauge

1шт.

30

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - tube, 1/8" tube x 1/8" P.T.

1шт.

31

A24084

LAMP

LAMP - warning, engine oil pressure, Includes: Ref. 32

1шт.

32

A24354

BULB

BULB - (#57 red)

1шт.

33

A24085

LAMP

LAMP - warning (Generator) (Used prior to trac. SN 8656686), Includes: Ref. 34

1шт.

33

A38816

LAMP

LAMP - warning (Alternator) (1st trac. SN 8656686), Includes: Ref. 34

1шт.

34

A24354

BULB

BULB - (#57 red) (w/generator)

1шт.

34

F21950

SPARE PART BULB - (#431 red) (w/alternator)

1шт.

35

A32145

LAMP BASE

LAMP - warning, clutch oil temperature, Includes: Ref. 36

1шт.

36

A24354

BULB

BULB - (#57 red)

1шт.

37

A38465

WIRE - lamp to oil temp. sender (68")

1шт.

38

A33241

SWITCH

SENDER - temperature, clutch oil

1шт.

38

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

38

104202A1C

CORE-STARTER

Return Part Number

1шт.
