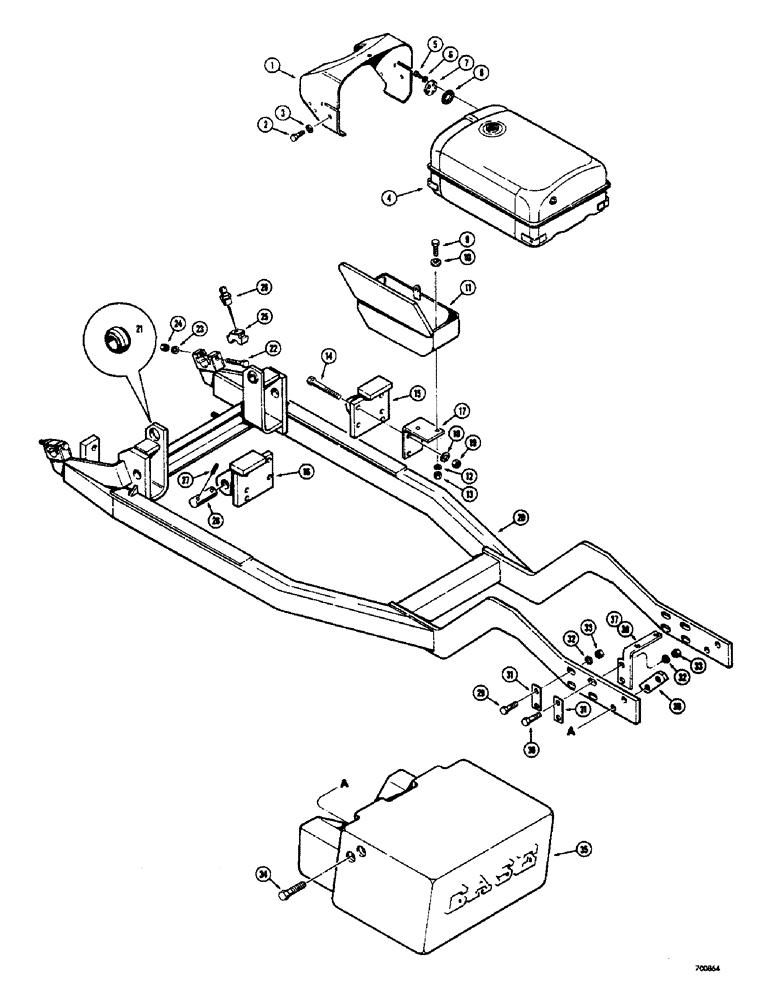

Запчасти Case 580 (06) - SUBFRAME AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

A37914

COWL - at fuel tank

1шт.

2

114-9

SCREW

HHCS - 1/4" - 28 NF x 3/8" (Zinc plated)

3шт.

3

195-517

WASHER,1/4"

- plain, (Zinc plated) 1/4"

3шт.

4

A37306

TANK - fuel, diesel (See model 580 Construction King Wheel Tractor Parts Catalog for related parts)

1шт.

A37308

TANK - fuel, gasoline (See model 580 Construction King Wheel Tractor Parts Catalog for related parts)

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, #10 - 32 NF x 7/16"

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

G16143

COVER - fuel tank

1шт.

8

A11822

GASKET

- cover

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

11

A11099

TOOL

BOX

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

15

D29629

BRACKET - subframe to axle housing, R.H.

1шт.

16

D29630

BRACKET - subframe to axle housing, L.H.

1шт.

17

D40832

BRACKET - tool box

1шт.

18

A28084

WASHER

- special (5/8")

8шт.

19

129-563

NUT,5/8"-11, G8

- hex, lock (5/8" - 11 NC)

8шт.

20

D40833

SUBFRAME - fork lift (Diesel models), Includes: Ref. 21 - 26

1шт.

D40831

SUBFRAME - fork lift (Gasoline models)

1шт.

21

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- pivotal ball type

2шт.

22

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

25

D38366

WEDGE - trunnion

2шт.

26

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - straight, grease (3/16" drive)

2шт.

27

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

4шт.

28

D34430

PIN

-, Serial Range: subframe-bracket

2шт.

29

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

30

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

31

D33174

PLATE - retaining

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

33

25-1010

NUT,5/8"-11, G5

8шт.

34

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

35

D32691

COUNTERWEIGHT - rear. 2200 lbs. (Used with 4000 lb. lift capacity mast)

1шт.

D40704

COUNTERWEIGHT - rear, 2765 lbs. (Used with 5000 lb. lift capacity mast)

1шт.

36

D33292

PLATE - bolt mounting

2шт.

37

D40384

BRACKET - grill support, R.H.

1шт.

38

D40383

BRACKET - grill support, L.H.

1шт.
