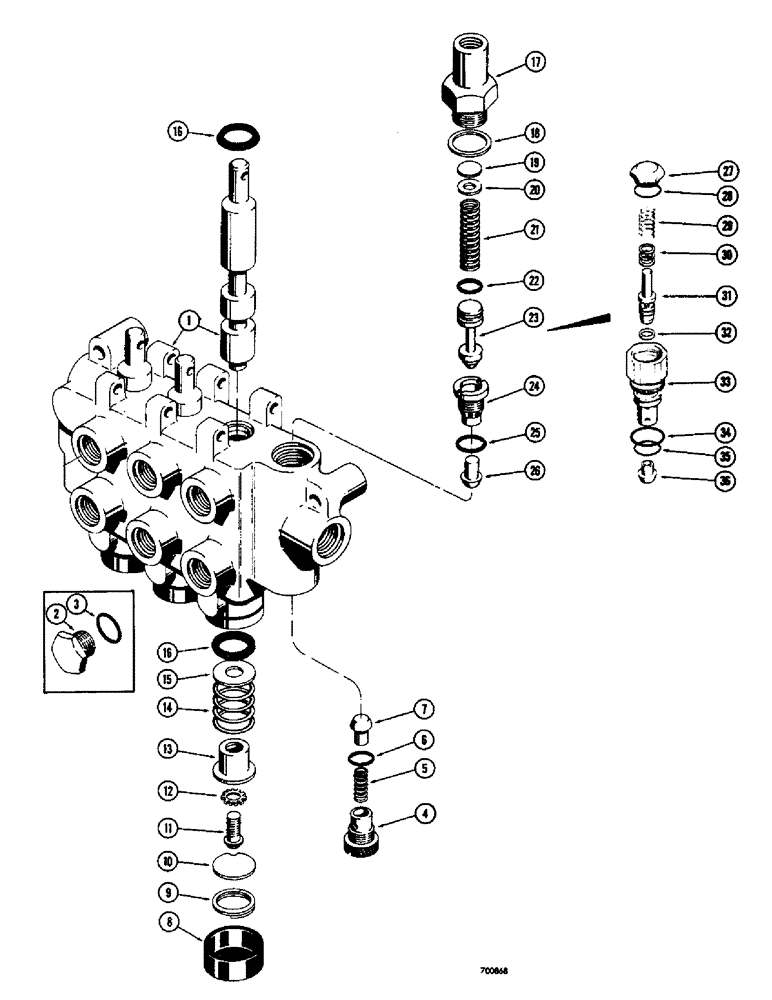

Запчасти Case 580 (94) - FORK LIFT CONTROL VALVE, D41209 CONTROL VALVE ONLY, D50256 CONTROL VALVE ONLY (35) - HYDRAULIC SYSTEMS

D41209

X

VALVE - hydraulic, early production (When stock is exhausted, order D50256 valve for service), Includes: Ref. 1 - 36

1шт.

D50256

VALVE

- hydraulic, late production

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched set

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Valve port (Only one plug supplied with valve), Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D28574

PLUG

- check poppet

1шт.

5

D28840

SPRING

- check poppet

1шт.

6

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O"ring, check poppet plug

1шт.

7

D28576

VALVE POPPET

POPPET - check

1шт.

8

36645

CAP

- rubber

3шт.

9

36633

LID

SNAP RING - stop disc

3шт.

10

36631

HOUSING

- stop

3шт.

11

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring

3шт.

12

36628

LOCK WASHER

- lock

3шт.

13

CAS36630

COLLAR

- stop

3шт.

14

36632

SPRING

- centering

3шт.

15

36650

WASHER

- stop

3шт.

16

36642

SEAL

- spool

6шт.

17

D41519

BODY - relief valve, D41209 control valve only

1шт.

18

34115

GASKET

- relief valve body, D41209 control valve only

1шт.

19

D25844

SHIM,.0097" Thk

Relief valve spring, D41209 control valve only .0097" Thk

1шт.

20

36660

WASHER

SPACER - relief valve spring (.10" thick), D41209 control valve only

1шт.

21

D41517

SPRING - relief valve, D41209 control valve only

1шт.

22

D41520

O-RING

SEAL - "O"ring, relief poppet, D41209 control valve only

1шт.

23

D41518

HEATER PLUG

POPPET - relief, D41209 control valve only

1шт.

24

D28575

SEAT

- relief valve, D1209 control valve only

1шт.

25

D23928

O-RING

SEAL - "O"ring, valve seat, D41209 control valve only

1шт.

26

D28576

VALVE POPPET

POPPET - check, D41209 control valve only

1шт.

27

D39716

PLUG

CAP - relief valve, D50256 control valve only

1шт.

28

D39708

SEAL - "O"ring, cap, D50256 control valve only

1шт.

29

D51540

VALVE SPRING

SPRING - relief valve, D50256 control valve only

1шт.

30

D39712

SHIM

- relief valve spring (.0097" thick), D50256 control valve only

1шт.

A55894

SHIM,.0209" Thk

Relief valve spring, D50256 control valve only .0209" Thk

1шт.

A55893

SHIM,.0418" Thk

Relief valve spring, D50256 control valve only .0418" Thk

1шт.

31

D39713

VALVE POPPET

POPPET - relief valve, D50256 control valve only

1шт.

32

D39714

RING

SEAL - relief valve poppet, D50256 control valve only

1шт.

33

D51541

BODY

- relief valve, D50256 control valve only

1шт.

34

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O"ring, large, D50256 control valve only

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

SEAL - "O"ring, small, D50256 control valve only

1шт.

36

D28576

VALVE POPPET

POPPET - check, D50256 control valve only

1шт.
