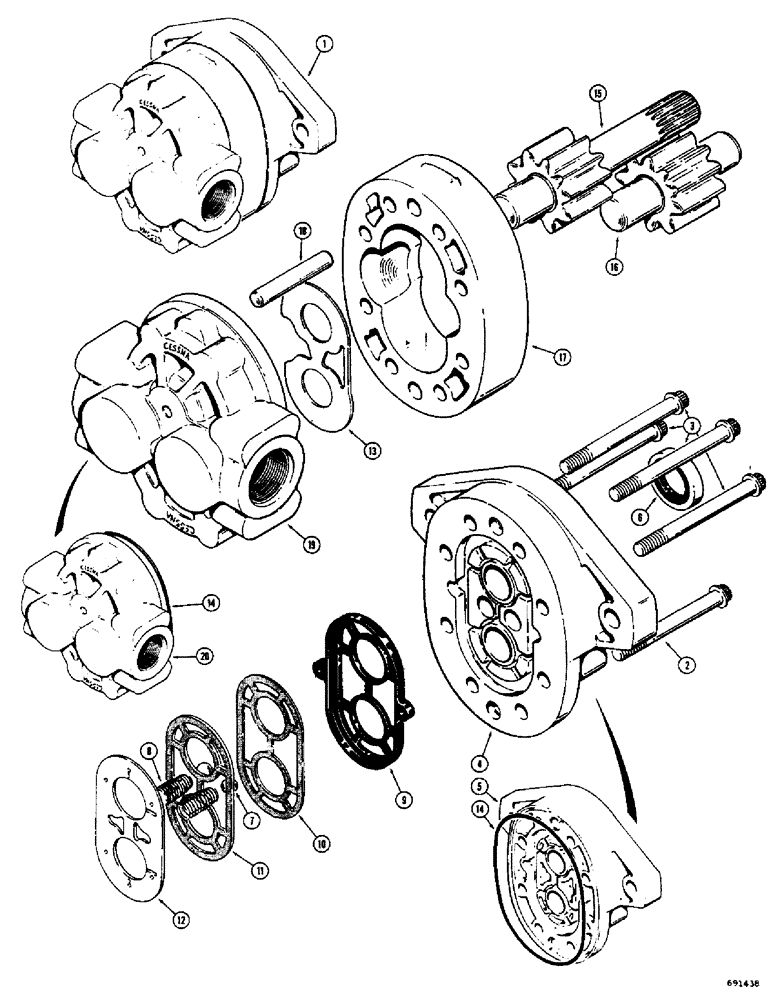

Запчасти Case 580 (92) - D41390 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D41390

PUMP

PUMP - hydraulic, 26 G.P.M. at 2500 R.P.M. at 1800 P.S.I., Includes: Ref. 2 - 20

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

580 Case Construction King Forklift

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - drive shaft, end without "O" ring seal

1шт.

5

D48879

COVER

COVER - drive shaft end, used with "O" ring seal

1шт.

D41318

KIT

KIT - pump rebuild (When stock is exhausted, order (1) D49374 kit for service), Includes: Ref. 6 - 14

1шт.

D49374

SERVICE KIT

KIT - pump rebuild, Includes: Ref. 6 - 14

1шт.

6

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - drive shaft

1шт.

7

D31404

BALL

BALL - steel (13/32" dia.), Includes: Ref. 8

2шт.

8

D31403

SPRING

SPRING - ball retaining

2шт.

9

D31397

SEAL

SEAL - diaphragm

1шт.

10

A41244

GASKET

GASKET - backup

1шт.

11

NLS

NO LONGER SERVICED

SPARE PART GASKET - protector (When stock is exhausted, order (1) A42305 gasket for service)

1шт.

A42305

GASKET

GASKET - protector

1шт.

12

D41321

DIAPHRAGM

DIAPHRAGM - pump

1шт.

13

D41322

PLATE

PLATE - thrust

1шт.

14

D48887

O-RING

SEAL - "O"ring, cover seal for D48879 and D48883 covers (Part of D49374 kit only)

2шт.

D41421

GEAR-SET

GEAR SET - drive and driven (When stock is exhausted, order (1) D49380 gear set for service), Includes: Ref. 15 and 16

1шт.

D49380

GEAR

GEAR SET - drive and driver (When stock is exhausted, order D52929 gear set for service), Includes: Ref. 15 and 16

1шт.

D52929

GEAR

GEAR SET - drive and driven, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVE SHAFT AND GEAR - pump

1шт.

16

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

17

D49371

HOUSING

HOUSING - gear

1шт.

18

D49373

DOWEL

DOWEL - pump housing

2шт.

19

D31407

PLATE ASSY.

COVER - port end, without "O" ring seal groove

1шт.

20

D48883

COVER

COVER - port end, used with "O" ring seal

1шт.
