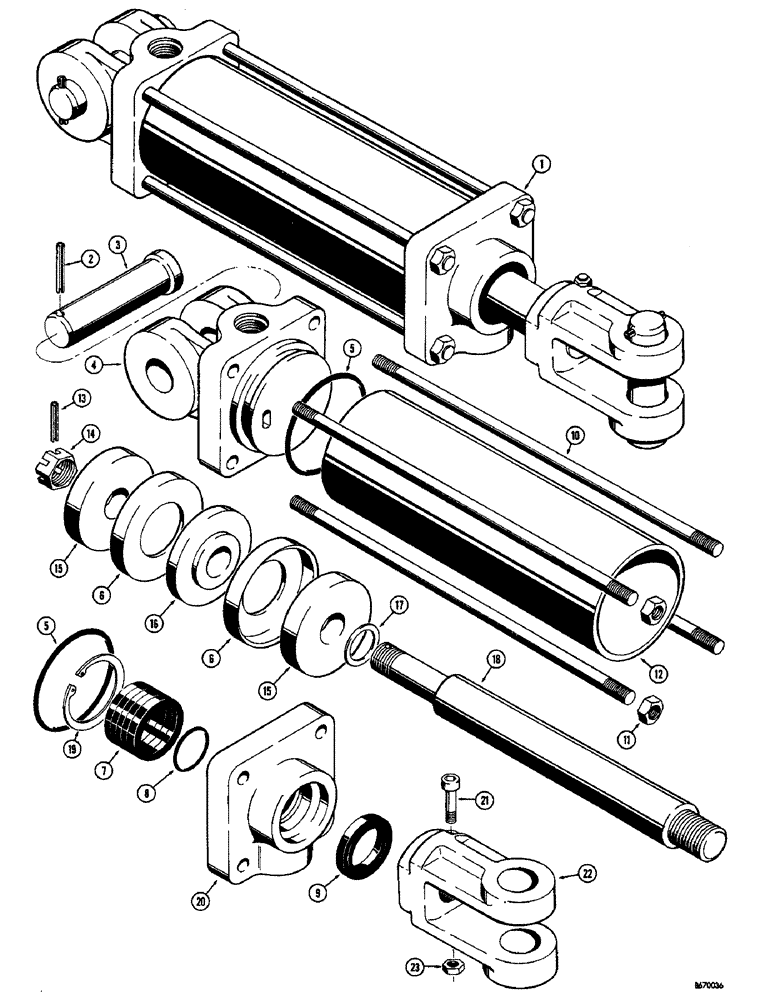

Запчасти Case 580 (88) - D41424 SIDE SHIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

D41424

CYLINDER BLOCK

CYLINDER - hydraulic, side shift (4000 lb. lift capacity masts) 3" I.D. x 6" stroke, Includes: Ref. 2 - 23

1шт.

2

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

3

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

4

D41500

CLEVIS

CAP - cylinder, closed end

1шт.

D24093

KIT

- cylinder packing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - "O"ring, end cap

2шт.

6

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

7

NSS

NOT SOLD SEPARAT

PACKING - piston (Set of 5)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O"ring, piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

10

D24098

ROD - tie

4шт.

11

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4-8шт.

12

D24085

TUBE

- cylinder

1шт.

13

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Includes: Ref. 14 - 23 5/32" x 1 1/4", Slotted

1шт.

14

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF)

1шт.

15

D24089

SPACER

- cup

2шт.

16

D24088

PISTON - cylinder

1шт.

17

D24091

GASKET

- piston

1шт.

18

D24090

ROD

- piston

1шт.

19

D24092

RING - retaining, packing

1шт.

20

D39466

HEAD

CAP - cylinder, rod end

1шт.

21

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex. socket head, 3/8" - 16 NC x 1-3/4"

1шт.

22

D24097

CLEVIS

YOKE - piston rod

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
