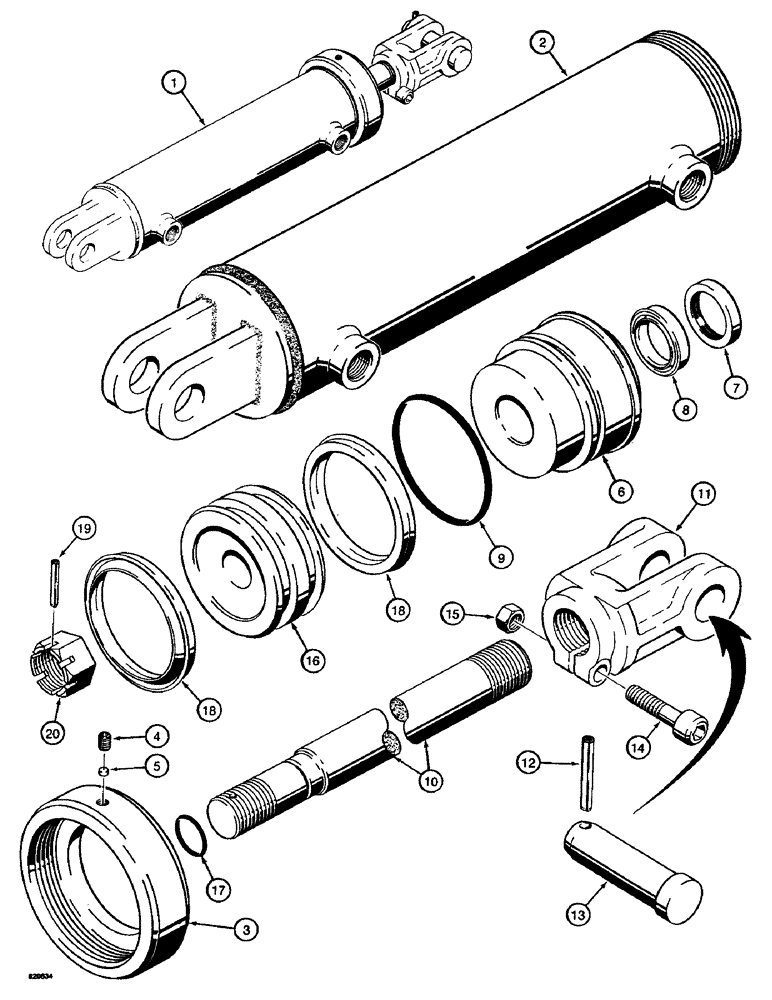

Запчасти Case 580 (87A) - N7943 TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

N7943

CYLINDER

ASSEMBLY - hydraulic, tilt, 3-1/2" (89 MM) ID x 10" (254 MM) stroke, used with all masts, except 21-1/2' 4000 lb. lift capacity, Includes: Ref. 2 - 20

2шт.

2

N7945

TUBE

- cylinder

1шт.

3

N7950

CAP

- head, threaded, 4-3/4" (121 MM) OD

1шт.

4

178-424

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket, 1/4" - 20 NC x 1/4"

1шт.

5

T55068

PLUG

- nylon

1шт.

6

N7947

HEAD (CYLINDER)

GLAND - cylinder

1шт.

7

B17291

WIPER SEAL

WIPER - piston rod

1шт.

8

N7948

CUP

U-CUP SEAL - piston rod

1шт.

9

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

- gland

1шт.

10

N7946

ROD

- piston, 1-1/4" (32 MM) OD

1шт.

11

D61015

FORK

CLEVIS - adjustable, piston rod

1шт.

12

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

13

D36819

PIN,30.23mm OD x 111.25mm L

- tilt cylinder

2шт.

14

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

16

N7944

PISTON

- double groove

1шт.

17

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston rod

1шт.

18

N7951

U-CUP SEAL - piston

2шт.

19

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

20

25-2316

SLOTTED NUT

CASTLE NUT - hex, 1" - 14 NF

1шт.
