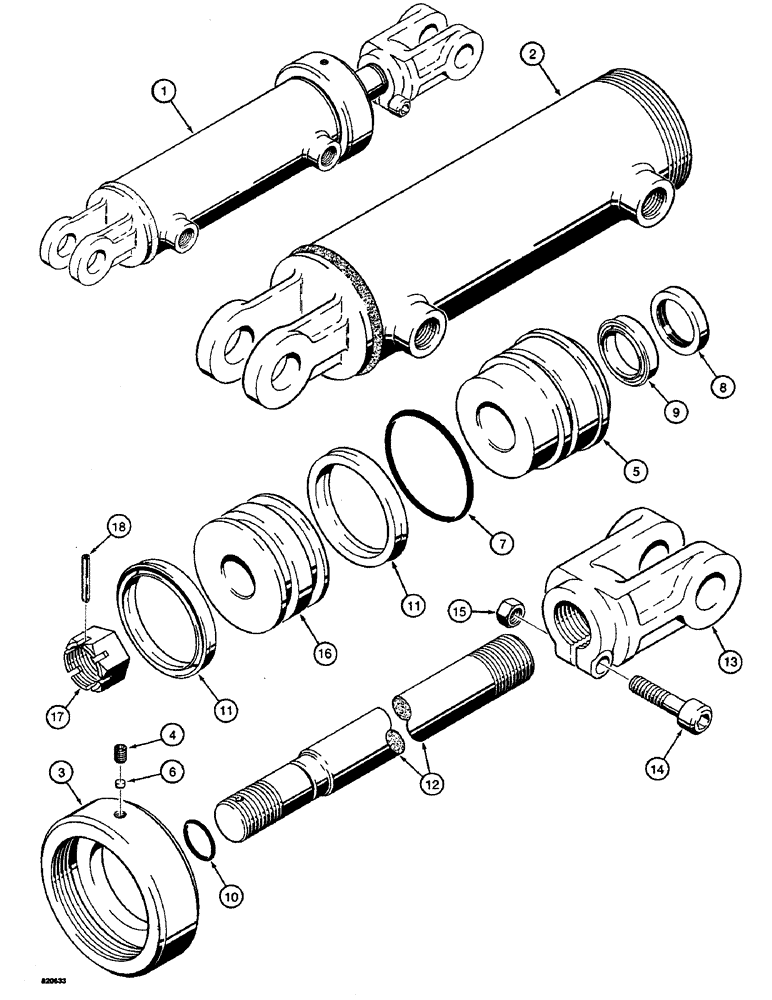

Запчасти Case 580 (85A) - N7631 SIDESHIFT, LOADER BUCKET AND TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

N7631

CYLINDER

ASSEMBLY, Includes: Ref. 2 - 13

1-2шт.

Hydraulic, tilt, sideshift of loader bucket, 3" (76mm) ID x 6" (152MM) stroke, used on 21-1/2' 4000 lb lift capacity forklift as tilt cylinder, used on 5000 lb lift capacity mast as side shifter or 4000 lb and 5000 lb lift capacity masts as loader bucket cylinder

1шт.

2

N7632

TUBE - cylinder

1шт.

3

T55472

HEAD

CAP - gland

1шт.

4

178-424

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket, 1/4" - 20 NC x 1/4"

1шт.

5

N7634

GLAND - cylinder

1шт.

N7637

SEAL KIT

- seal, Includes: Ref. 6 - 11

1шт.

6

T55068

PLUG

- nylon

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- end cap, gland

1шт.

8

B17291

WIPER SEAL

WIPER - piston rod

1шт.

9

N7639

U-CUP - gland

1шт.

10

D32114

O-RING,0.75" ID x 0.875" OD

- piston

1шт.

11

N7638

U-CUP - piston

2шт.

12

N7635

ROD - piston, 1-1/4" (32 MM) OD

1шт.

13

D61015

FORK

CLEVIS - piston rod

1шт.

14

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4", Includes: Ref. 15 - 18

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

16

N7633

PISTON - double groove, cylinder

1шт.

17

25-2316

SLOTTED NUT

CASTLE NUT - hex, 1" - 14 NF

1шт.

18

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.
