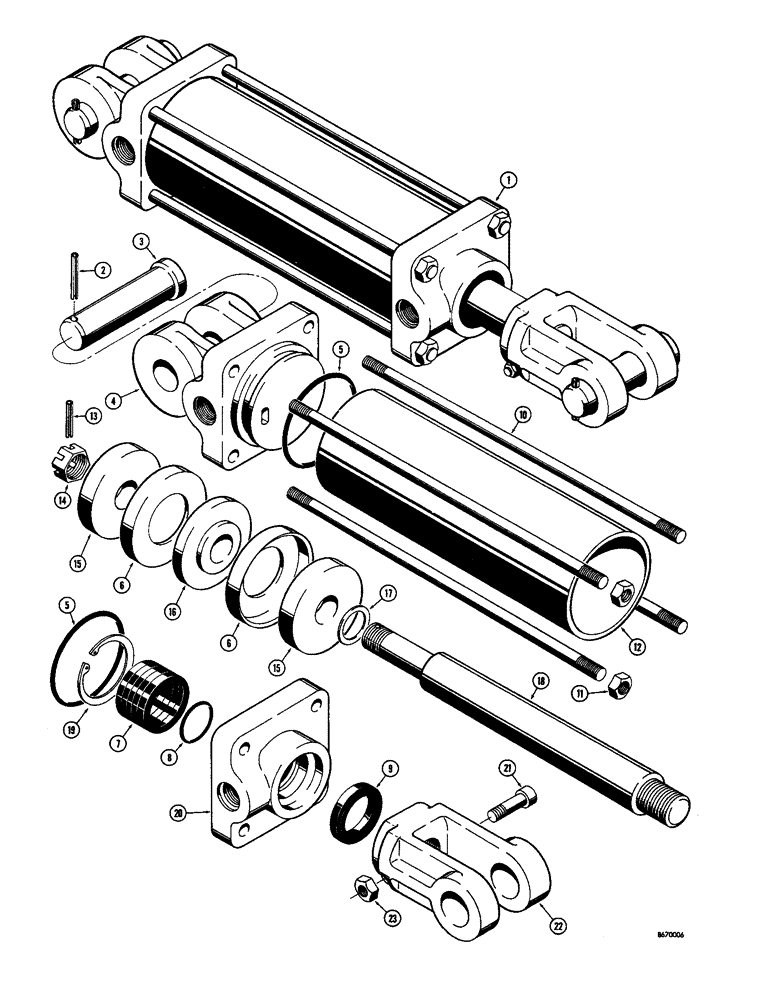

Запчасти Case 580 (84) - D39464 SIDESHIFT, LOADER BUCKET AND TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

D39464

CYLINDER ASSY.

CYLINDER

1-2шт.

Hydraulic, tilt, sideshift of loader bucket, 3" (76mm) ID x 6" (152MM) stroke, used on 21-1/2' 4000 lb lift capacity forklift as tilt cylinder, used on 5000 lb lift capacity mast as side shifter or 4000 lb and 5000 lb lift capacity masts as loader bucket cylinder

1шт.

2

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

3

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

4

D39467

CLEVIS

CAP - cylinder, closed end

1шт.

D24093

KIT

- cylinder packing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - end cap

2шт.

6

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

7

NSS

NOT SOLD SEPARAT

PACKING - piston, set of 5

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

10

D24098

TIE ROD - cylinder

4шт.

11

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

8шт.

12

D24085

TUBE

- cylinder

1шт.

13

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

14

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

CASTLE NUT - hex, 3/4" - 16 NF

1шт.

15

D24089

SPACER

- cup

2шт.

16

D24088

PISTON - cylinder

1шт.

17

D24091

GASKET

- piston

1шт.

18

D24090

ROD

- piston

1шт.

19

D24092

SNAP RING - retaining, packing

1шт.

20

D39466

HEAD

CAP - cylinder, rod end

1шт.

21

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

22

D24097

CLEVIS

- piston rod

1шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
