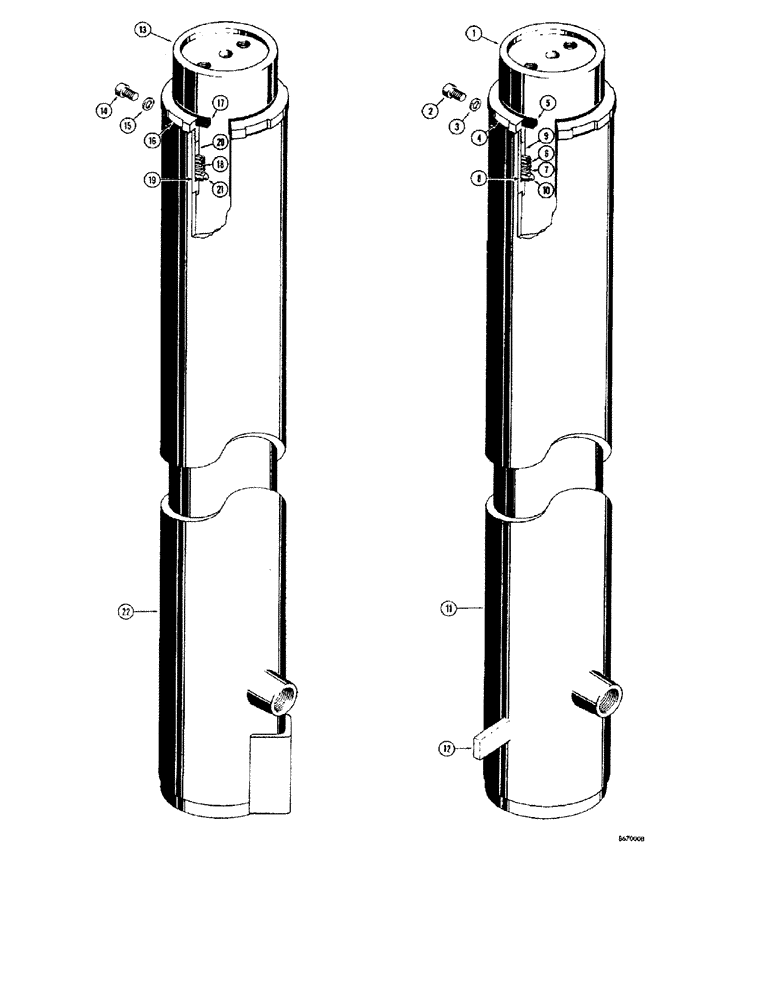

Запчасти Case 580 (82) - 60969 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

60969

CYLINDER - hydraulic, lift (3-1/2" I.D. x 85-1/2" stroke) 14-1/4' 4000 and 5000 lb. capacity, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

2

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8")

1шт.

3

D24252

WASHER

- bleeder screw, special

1шт.

4

60955

NUT

- cylinder packing

1шт.

D28327

SEAL

KIT - packing, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING - chevron, fabric

3шт.

7

NSS

NOT SOLD SEPARAT

PACKING - chevron, leather

2шт.

8

NSS

NOT SOLD SEPARAT

RING - wire, spring

1шт.

9

D28337

SLEEVE

- packing, upper

1шт.

10

60954

SLEEVE

RING - packing, lower

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

12

D26094

RETAINER - lift cylinder

1шт.

D40847

CYLINDER

- hydraulic, lift (4" I.D. x 85-3/16" stroke) 21-1/2' 4000 lb. lift capacity, Includes: Ref. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

14

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8")

1шт.

15

D24252

WASHER

- bleeder screw, special

1шт.

16

D41189

NUT

- cylinder packing

1шт.

D41188

PACKING

KIT - packing, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - chevron

5шт.

19

NSS

NOT SOLD SEPARAT

RING - wire, spring

1шт.

20

D41190

SLEEVE

- packing, upper

1шт.

21

D41191

SLEEVE

- packing, lower, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

CYLINDER - tube assembly

1шт.
