Запчасти Case 580 (80) - D24173 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

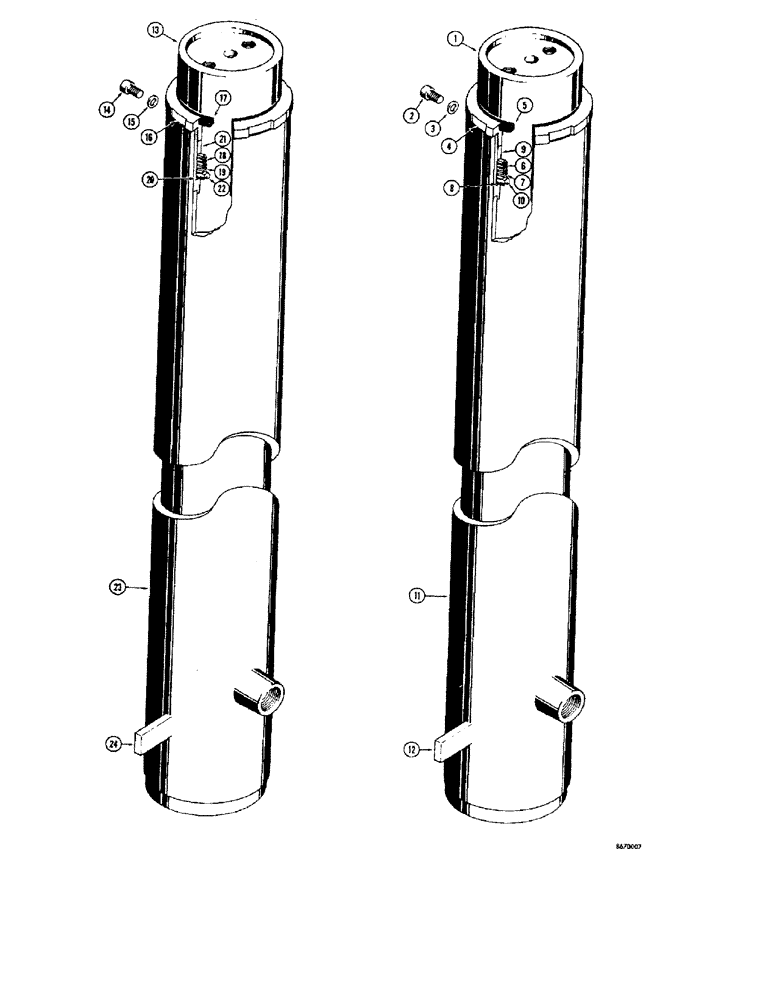

Схема запчастей Case 580 - (80) - D24173 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
6
19
23
15
4
7
5
17
21
3
9
20
1
24
8
12
2
11
10
22
16
18
13
14

№

Артикул

Название

Примечание

Количество

D24173

CYLINDER

- hydraulic, lift (3-1/2" I.D. x 63 stroke) 10-1/2' 4000 lb lift capacity, D24173 lift cylinder, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly, D24173 lift cylinder

1шт.

2

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8"), D24173 lift cylinder

1шт.

3

D24252

WASHER

- bleeder screw, special, D24173 lift cylinder

1шт.

4

60955

NUT

- cylinder packing, D24173 lift cylinder

1шт.

D28327

SEAL

KIT - packing, D24173 lift cylinder, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

RING - wiper, D24173 lift cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING - chevron, fabric, D24173 lift cylinder

3шт.

7

NSS

NOT SOLD SEPARAT

PACKING - chevron, leather, D24173 lift cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

RING - wire, spring, D24173 lift cylinder

1шт.

9

D28337

SLEEVE

- packing, upper, D24173 lift cylinder

1шт.

10

D60954

BRAKE

RING - packing, lower, D24173 lift cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder, D24173 lift cylinder

1шт.

12

D26094

RETAINER - lift cylinder, D24173 lift cylinder

1шт.

D36571

CYLINDER - hydraulic, lift (3-1/2" I.D. x 72" stroke) 12' 5000 lb. lift capacity, D36571 lift cylinder, Includes: Ref. 13 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - tube assembly, D36571 lift cylinder

1шт.

14

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8"), D36571 lift cylinder

1шт.

15

D24252

WASHER

- bleeder screw, special, D36571 lift cylinder

1шт.

16

60955

NUT

- cylinder packing, D36571 lift cylinder

1шт.

D28327

SEAL

KIT - packing, D36571 lift cylinder, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wiper, D36571 lift cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - chevron, fabric, D36571 lift cylinder

3шт.

19

NSS

NOT SOLD SEPARAT

PACKING - chevron, leather, D36571 lift cylinder

2шт.

20

NSS

NOT SOLD SEPARAT

RING - wiper, spring, D36571 lift cylinder

1шт.

21

D28337

SLEEVE

- packing, upper, D36571 lift cylinder

1шт.

22

60954

SLEEVE

RING - packing, lower, D36571 lift cylinder

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - cylinder, D36571 lift cylinder

1шт.

24

D26094

RETAINER - lift cylinder, D36571 lift cylinder

1шт.

Выбрано товаров: 28
